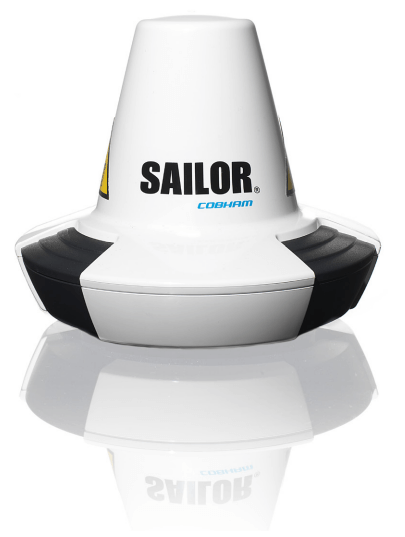

403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna - Image 1
403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna - Image 2
403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna - Image 3
403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna - Image 4
Click to enlarge
403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna
403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna - Image 2
403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna - Image 3
403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna - Image 4

403027-001 Sailor 3027C mini-C GMDSS, Terminal-Antenna

SKU: 403027-001

The 3027C mini-C Antenna features true triple functionality as it safely handles all GMDSS, SSAS and LRIT operation on board.

UM_2017_SAILOR-6110-mini-C-GMDSS-System-User-Manual-incl.-6018MT.pdf

SAILOR Inmarsat TT-3027C Mini-C Transceiver Antenna 403027-001

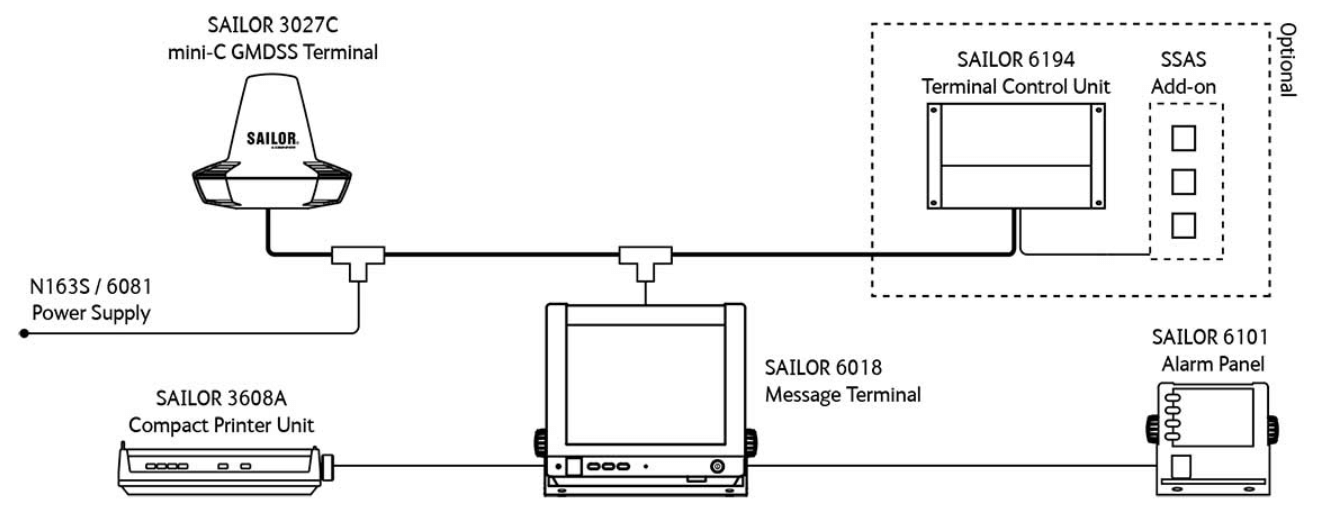

The SAILOR 3027 is a GMDSS approved Inmarsat GMDSS Terminal for the SAILOR 6110 system.
It has a built-in LNA/HPA and an omni-directional antenna designed to operate on vessels.
The housing is sealed and contains no user serviceable parts.

SAILOR Inmarsat 3027C Mini-C Antenna Unit BLANK GMDSS [s-403027-001] is a new with full Thrane warranty replacement antenna for SAILOR 6110 GMDSS mini-C System.

SAILOR 3027 Mini C Transceiver W/O ISN S-403027-001

  • Thrane Thrane Mini C Transceiver is a new replacement compliant with GMDSS and has no ISN assigned to it.
  • There are two option to take the Sailor 3027 Mini C “replacement” Antenna blank with no serial numbers attached – Or we can clone the antenna for you.
  • TT-3027C spare mini c antenna is covered by the Cobham CPP programme which means you could be entitled to a lower cost replacement, depending on the age of the defective unit. We can calculate a CPP price for you if you can provide serial number details of the defective antenna. Otherwise standard pricing applies.
  • All our engineers are certified by Sailor / Thrane – Thrane and we can perform service & installation of Sailor / Thrane – Thrane equipment.
  • Cobham equipment is supported by a minimum 12-month return to factory warranty covering manufacturing defects from the date of despatch from our premises.
  • All cables, connectors, pole mounts and other Thrane-Thrane / Sailor equipment are on stocks in our UK, US and Denmark warehouse.
  • For UK/Worldwide please contact us for your shipping code and cost.

SAILOR 3027 Mini C Transceiver Includes:

Item Description Qty.
403027-921 Spacer for surface mounting of a TT-3027 Mini-C

TERMINAL UNIT SPECIFICATIONS

  • General specifications Inmarsat C GMDSS Type Approved
  • Wheelmark Approved
  • 3027C mini-C Transceiver

ANTENNA UNIT SPECIFICATIONS

  • G/T -23.7 dBk at 5° elevation
  • EIRP Min. 7 dBW at 5° elevation
  • Antenna elevation -15° to 90°
  • Operating frequencies Rx Frequency Band: Rx: 1525 – 1545 MHz
  • Tx Frequency Band: Tx: 1626.5 – 1646.5 MHz

GENERAL SPECIFICATIONS

  • Absolute power supply range 10.5 – 32 VDC
  • Nominal power input 15 VDC
  • Power consumption (typical) Rx: 1.85 W @ 15 VDC
  • Tx: 22 W @ 15 VDC
  • GPS module 50 channel (Galileo ready)
  • Transceiver interface NMEA 2000 DeviceNet Mini-style, Male
  • I/O interface CAN-BUS (NMEA 2000)
  • Dimensions Diameter: 170.5 mm
  • Height: 145 mm (without pole mount)
  • Weight 1.10 kg (without pole mount)
