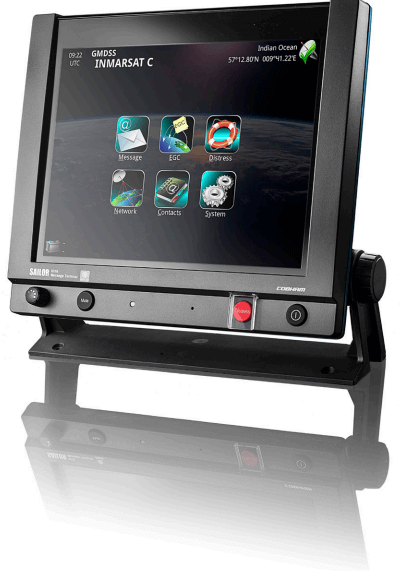

406018A-00500 Sailor 6018 GMDSS Message Terminal

406018A-00500 Sailor 6018 GMDSS Message Terminal

The SAILOR 6018 Message Terminal is a maritime terminal for use in GMDSS installations, providing several types of interfaces for connection to external equipment, such as a Mini-C transceiver, MF/HF Radio Telex applications and an Alarm panel.

The Message Terminal has a touchscreen for operating the terminal. However, in GMDSS installations a keyboard is mandatory. An approved keyboard is available from Cobham SATCOM.

The SAILOR 6018 Message Terminal is designed to enhance the efficiency of safety communication as the defining component in a SAILOR 6000 GMDSS installation, as Inmarsat mini-C or as a radiotelex terminal.

406018A-00500 > In this Sailor 6018 Terminal Pack

• 6018 Terminal Unit
• Flush Mount Gasket, for Console Mounting
• U-Mount Bracket for Surface or Ceiling Mounting, with 2pcs Twist-Lock “Wheel-Knobs”
• Cable Strain-Relief Plate
• DC Power cable, 12-24VDC, 2.5m
• Fixings: 5pcs Screws M4x12mm TORX# 20, 5pcs Screws ø3.9x19mm TORX# 20, 3pcs Screws M3x8 Countersink

Regardless of its application, it is a unique product that uses intuitive touchscreen technology in maritime safety communications for easier, safer and more efficient operation.

The SAILOR 6018 Message Terminal is a Wheelmarked terminal.

It enables the safe operation of a vessel’s IMO GMDSS safety systems either when connected to the
SAILOR 6110 mini-C or when operating in conjunction with the MF/HF installation to provide seamless radiotelex communications.

Features include:

• High contrast touch-screen display with dimming
• Perfect night and day vision
• USB support
• Integrated GMDSS distress button
• Easy-to-use icon based interface
• ThraneLINK

A number of sub-systems, such as alarm panels can be connected using RJ45 Ethernet cables via the SAILOR 6197 Switch, making installation of the SAILOR 6018 Message Terminal easier and less
costly.

Additional cost-saving features include a revolutionary approach to cabling with the use of NMEA 2000 style cables and connectors, and the ability to present GMDSS system battery data, therefore removing the need for a battery panel, provided that the SAILOR 6081 Power Supply and Charger is used.

Purpose Built

The SAILOR 6018 Message Terminal is built specifically for use at sea, and with the SAILOR dedication to quality, it is a highly reliable system that is able to withstand the harsh maritime environment.

Sailor 6018  Specifications

• Mounting method: Flush mount or bracket
• Voltage 12 to 24 V DC (absolute min/max rating: 10.8 to 31.2 V DC)
• Power consumption Typical: 20 W active Peak: 60 W 6.3 A internal fuse (non-serviceable)
• Audio output Up to 6 W in 8 Ohm
• Interfaces: 2 x Ethernet (10/100 Mbit/s), Accessories connector, Auxiliary connector
• Compliance: • IEC 60945, IEC 61162-1 • IEC 62368-1:2014 • IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• IP rating: IP54, Protected equipment(Estimated)
• Ambient temperature: -15°C to 55°C
• Storage temperature: -30°C to 80°C
• Heat dissipation: Typical 20W
• Compass safe distance: 0.6m
• Dimensions(W x H x D): 269 x 234 x 70mm
• Weight(without mounting bracket): 2.5 kg (without mounting bracket)
• Display: Color TFT screen with touch Resolution: 800 x 480 pixels, Pixel size: 0.1905mm
