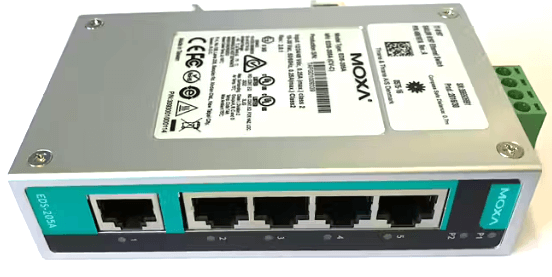

406197A-00500 Sailor 6197 EDS-205 Moxa Switch, 5 Port

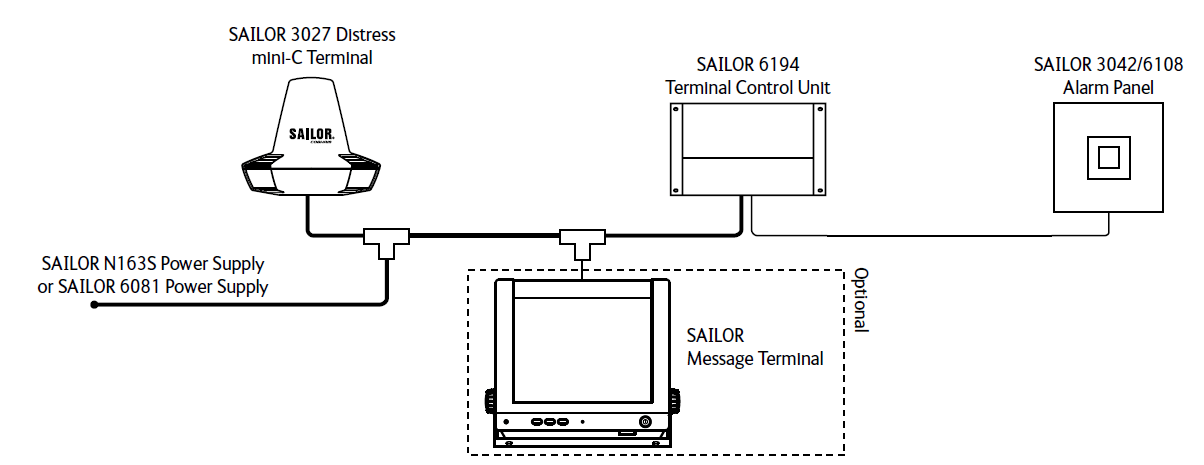

This new switch serves as a connection point for the new 6194A Terminal Control Unit (TCU). This TCU is effectively replacing the old passive 3616D interconnection box.
SAILOR 6197 / EDS-205 Moxa Switch 5 Port
This new switch serves as a connection point for the new 6194 Terminal Control Unit (TCU). This TCU is effectively replacing the old passive 3616D interconnection box.
The EDS-205 series of industrial Ethernet switches are entry-level industrial 5-port Ethernet switches that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205/208 switches are rated to operate at temperatures ranging from -10 to 60°C, and are rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205/208 switches easy to use and reliable.
Features – Sailor 6197 (also known commonly as the Moxa part# EDS-205)
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
- IEEE802.3/802.3u/802.3x support
- Broadcast storm protection
- DIN-rail mounting ability
- -10 to 60°C operating temperature range
Overview
The EDS-205 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.
