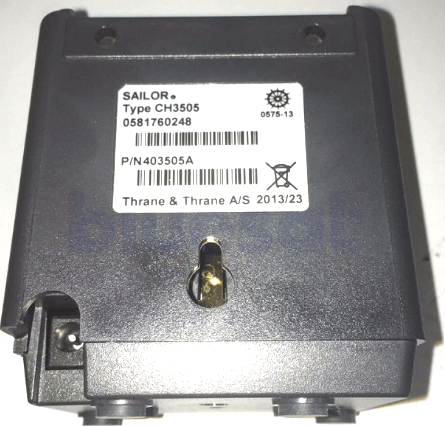

403505A Sailor CH3505 Charger, Compact ATEX, Single Charging Position
403505A Sailor CH3505 Charger, Compact ATEX, Single Charging Position - Image 2
403505A Sailor CH3505 Charger, Compact ATEX, Single Charging Position - Image 3
403505A Sailor CH3505 Charger, Compact ATEX, Single Charging Position - Image 4

403505A Sailor CH3505 Charger, Compact ATEX, Single Charging Position

SKU: 403505A

CH3505 Compact Charger – Single Position/Pocket Features:

  • Pocket: Charges Radio + Battery attached, or Charges Battery only stand-alone.

$381.70 Inc. GST

UM_sailor_sp3530_vhf_user_manual-1.pdf-1.pdf
403505A Sailor CH3505 Compact Charger, ATEX, Single Pocket
  • SAILOR CH3505 is a Single Position Charger for ATEX/non ATEX rechargeable batteries
  • Compatible with all SAILOR SP3500/3900 series VHF/UHF Radios with Rechargeable Batteries ONLY
This Pack Includes:
– CH3505 Compact Charger(Single Pocket, Single Charger Position)
– AC/DC converter
– DC connection

  • Compartment for recharging the battery while attached to the radio or charging battery only stand-alone.

Connecting to power
The charger can be supplied from DC or from AC using an AC/DC converter.
DC: Connect the 12-24VDC Connection Cable between the DC supply and the connector on the underside of the charger.
AC: Connect the AC/DC converter to the connector on the underside of the charger. Then connect the AC/DC converter to the AC outlet.

Features:

  • Single Position for: (a)  charging the Handset/Battery attached,  or just for (b) Charging the Battery all on its own.
  • 100-230VAC operation voltage
  • Charging time with empty battery:
    (a) Radio turned off approx 4 hours, (b) Radio turned on : approx 5 hours

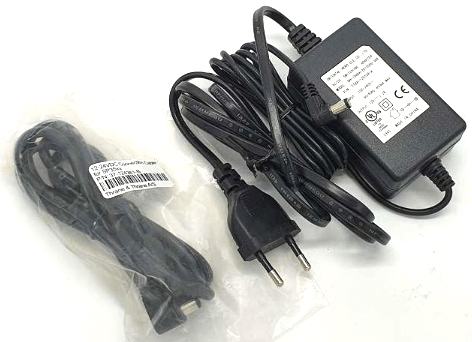

  • comes with AC/DC converter/adaptor 88-125538

Compatibility: Sailor SP35xx VHF/UHF series radios

BATTERY CHARGER OPERATION/MAINTENANCE –

If the radio is not used for several weeks it is recommended to store the radio and battery separated to reduce self discharge of the battery.

Connecting to power
The charger can be supplied from DC or from AC using an AC/DC converter.

DC: Connect the 12-24VDC Connection Cable between the DC supply and
the connector on the underside of the charger.

AC: Connect the AC/DC converter to the connector on the underside of the
charger. Then connect the AC/DC converter to the AC outlet.

CH3505 – Recharging the battery
To recharge the battery, place the radio with battery or the battery alone
in the single position of the charger cradle.

If the radio cannot turn on due to complete discharged battery, then turn
off the radio and place it in the charger or charge the battery alone.

The light indicators on the charger cradle show the status as follows:
• Green light: Power is connected to the charger.
• Slow red flash: Charging in progress.
• Quick red flash (twice per second): Charging error, e.g. battery defect or temperature out of range.
• Steady red light: Charging completed. Trickle charge mode.
