403507B Sailor CH3507 Charger, Dual Pocket ATEX, Single Charging Position

SKU: 403507B

CH3507 Charger – Dual Position/Pocket Features:

  • Front: Charges Radio + Battery attached, or Charges Battery only stand-alone.
  • Rear: Stows Battery stand-alone but does NOT charge.

$436.70 Inc. GST

UM_sailor_sp3530_vhf_user_manual-1.pdf-1.pdf
403507B Sailor CH3507 Charger, ATEX Dual Pocket, Single Charger Position
  • SAILOR CH3505 is a Single Position Charger with Rear Pocket Storage(only) for ATEX/non ATEX rechargeable batteries.
  • Compatible with all SAILOR SP3500/3900 series VHF/UHF Radios.

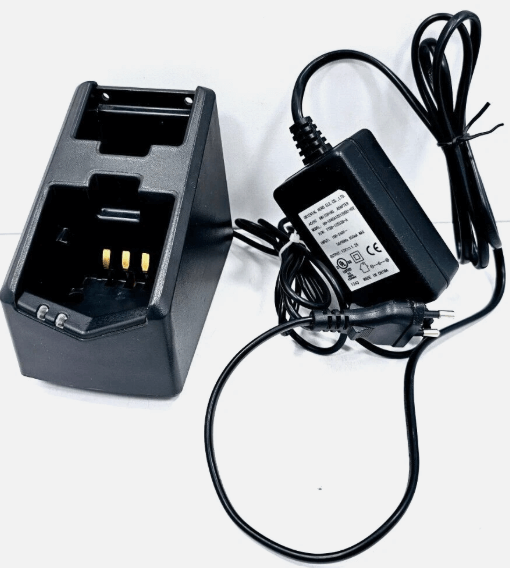

This Pack Includes:
– CH3507 Charger(Dual Pocket, Single Charger Position)
– AC/DC converter
– DC connection

  • A Front compartment for recharging the battery while attached to the radio or charging battery only stand-alone.
  • A Rear compartment only for storing a spare battery. It does not have a charger function.

Connecting to power
The charger can be supplied from DC or from AC using an AC/DC converter.
DC: Connect the 12-24VDC Connection Cable between the DC supply and the connector on the underside of the charger.
AC: Connect the AC/DC converter to the connector on the underside of the charger. Then connect the AC/DC converter to the AC outlet.

Features:

  • Front position for: (a)  charging the Handset/Battery attached,  or just for (b) Charging the Battery all on its own.
  • Rear position pocket: (b) To Stow a Spare Battery only.
  • 100-230VAC operation voltage

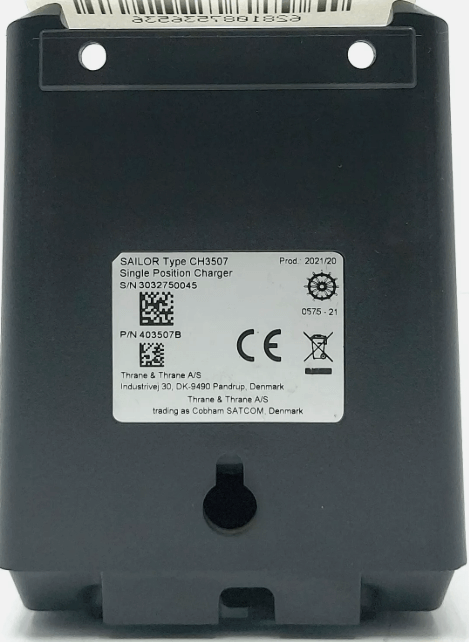

  • Charger can be either Desk-top or Wall Mounted for your convenience
  • Charging time with empty battery:
    (a) Radio turned off approx 4 hours, (b) Radio turned on : approx 5 hours
  • comes with AC/DC converter/adaptor 88-125538

Compatibility: Sailor SP35xx VHF/UHF series radios

BATTERY CHARGER OPERATION/MAINTENANCE –

If the radio is not used for several weeks it is recommended to store the radio and battery separated to reduce self discharge of the battery.

Connecting to power
The charger can be supplied from DC or from AC using an AC/DC converter.

DC: Connect the 12-24VDC Connection Cable between the DC supply and
the connector on the underside of the charger.

AC: Connect the AC/DC converter to the connector on the underside of the
charger. Then connect the AC/DC converter to the AC outlet.

CH3507 – Recharging the battery
To recharge the battery, place the radio with battery or the battery alone
in the front position of the charger cradle.

If the radio cannot turn on due to complete discharged battery, then turn
off the radio and place it in the charger or charge the battery alone.

The light indicators on the charger cradle show the status as follows:
• Green light: Power is connected to the charger.
• Slow red flash: Charging in progress.
• Quick red flash (twice per second): Charging error, e.g. battery defect or temperature out of range.
• Steady red light: Charging completed. Trickle charge mode.

Brand

Sailor
