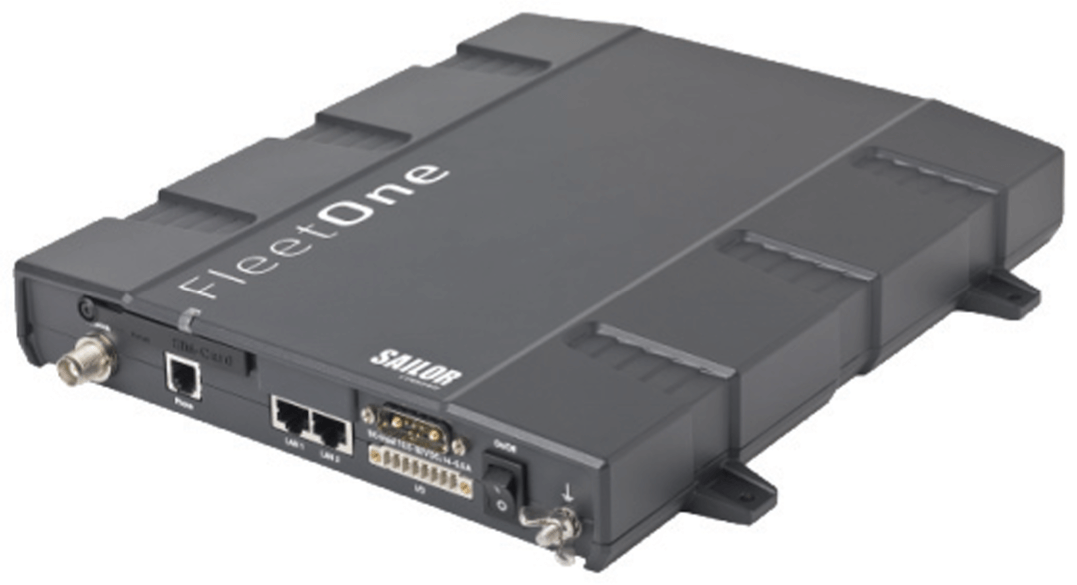

403739A-00581 Sailor BDU Terminal Unit, for Fleet One Systems
403739A-00581 Sailor BDU Terminal Unit, for Fleet One Systems
Compatibility/Application: Sailor Fleet One Systems
In this Pack:
- BDU Terminal Unit only
NOTE: No additional accessories or Parts are included in this Pack
Overview
- Dimensions 231 x 278 x 41 mm (9.1 x 10.9 x 1.6in)
- Weight 2.2kg (4.9lbs)
INFO REFERENCE FOR SAILOR FLEET ONE SYSTEM BELOW *********************
403744A-00581 Sailor Fleet One System, 10m Cable, with IP Handset
SAILOR Fleet One is the ideal complement to the Inmarsat Fleet One service, which utilises the existing Inmarsat-4 satellite constellation to deliver satellite voice and connectivity services ideal for use on smaller boats.
With its compact, lightweight antenna and simple installation, SAILOR Fleet One is a low-cost entry point to the world of maritime satcoms that keeps you connected at all times.
In This Pack (SAILOR Fleet One system):
- 403050C-00581 ADU(Above Deck Unit) Antenna
- 403739A-00581 BDU(Below Deck Unit) Terminal
- DC power cable (5.0m)
- Antenna cable (10.0m)
- Ethernet cable (2.0m)
- I/O connector
- Mounting bolts for the antenna (4pcs.)
- Grounding kit for antenna
- Installation guide with CD, Quick guide and User & Installation manual
- …. and this pack also includes the Thrane IP Handset Kit, including:
- 403672A Thrane IP Handset, wired for Sailor Fleet One, FleetBroadband 150, 250, 500, and LT-4300
- 403674A Thrane IP Cradle, wired for Sailor Fleet One, FleetBroadband 150, 250, 500, and LT-4300
Recommended antenna cables
The table below shows recommended cable types and maximum cable lengths for SAILOR Fleet One.
- Cable Type: G02232-D up to 6.0m
- Cable Type: RG223-U up to 25.0m
- Cable Type: RG214/U up to 50.0m
- Cable Type: S 07272B-05 up to 95.0m
Check in the data sheet from the cable supplier that both the RF- attenuation and the DC resistance are kept within the maximum specified values:
- Antenna cable RF-attenuation at 1660 MHz: max. 20 dB incl. connector.
- Antenna cable modem-attenuation at 54 MHz: max. 4 dB. Antenna cable modem-attenuation at 36 MHz: max. 3 dB.
- Antenna cable loop DC-resistance max: 1 Ohm.
Also ensure that the specified minimum bending radius is respected. If this is not the case, the loss in the cable will increase.
Check the instructions from the cable supplier.

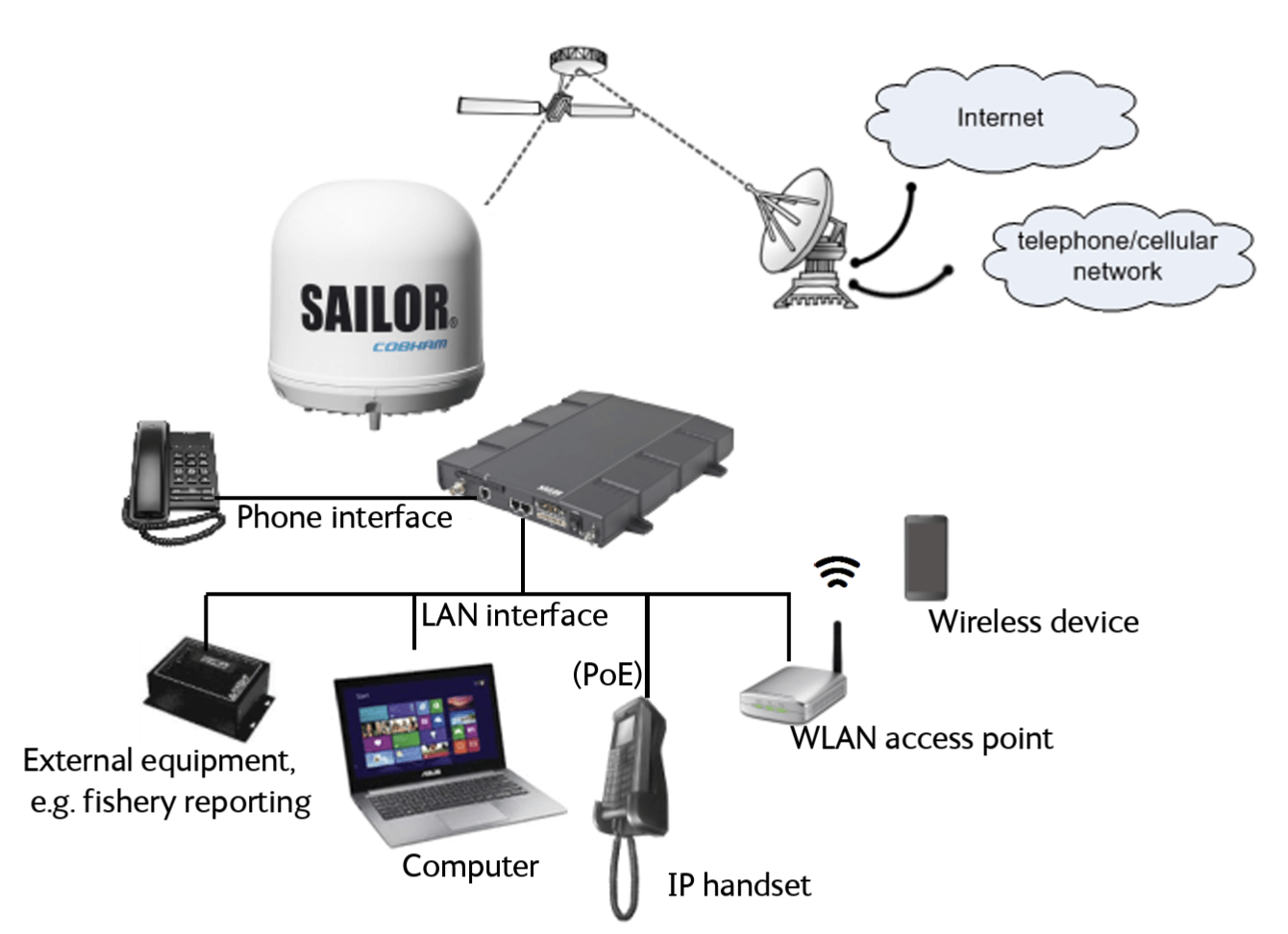

The SAILOR Fleet One system offers the following features and interfaces:
- Simultaneous voice and data communication over BGAN
- Full duplex, single or multi-user, up to: 100 kbps
- Standard Voice (4 kbps)
- Optional Voice Distress feature
- 2 LAN (Local Area Network) ports with PoE (Power over Ethernet)
- 1 Standard Phone port
- 1 multi-purpose I/O connector with 5 configurable inputs/outputs
- 1 SIM slot for your Fleet One SIM card
- Support for GPS, GLONASS and BeiDou-1 positioning systems
- Built-in DHCP/NAT router
- Built-in web interface for managing phone book, messages and calls, and configuration
- Input power: 10.5 – 32 V DC (11.5 A – 4 A)
- CE certified
- ATC resilient
- Supports Inmarsat’s extended L-band services with Alphasat (Inmarsat I-4A F4)
Data & voice
SAILOR Fleet One enables data connectivity up to 150kbps and voice calling on a single line.
Its capabilities offer significant communications functionality for recreational and fishing users who need reliable voice communications and Internet connectivity on board, when cellular networks are not available, or just don’t offer the quality needed for good communication
GENERAL SPECIFICATIONS – Sailor Fleet One System
ADU Antenna
Frequencies Inmarsat I-4 Transmit Receive Inmarsat Alphasat Transmit Receive 1626.5 – 1660.5 MHz 1525.0 – 1559.0 MHz Extended L-Band (XL)a 1626.5-1660.5 MHz and 1668.0-1675.0 MHz 1518.0 – 1559.0 MHz a. The extended frequency range (Extended L-Band or XL) is only available within Alphasat coverage. For coverage area, see Satellite coverage on page6. Channel spacing 1.25 kHz Antenna element gain Rx 11.0 dB min. G/T -15.5 dB/K EIRP Min. EIRP: 3.1 dBW Max. EIRP: 16.1 dBW Return loss < -15 dB (reflection loss < 0.15 dB) Cable losses RF attenuation: max. 20 dB DC resistance (loop): max. 1 Ohm Max. cable length between terminal and antenna: • RG223-D: 25 meter • RG214/U: 50 meter • S 07272B-05: 95 meter Antenna input voltage 22.7 V Antenna power, operational Maximum 39W Total antenna weight 3.94kg (8.7 lbs) Antenna dimensions 291.9mm x Ø275.6mm
BDU Terminal
Weight 2.2 kg (4.9lbs) Dimensions 231 mm x 278 mm x 41 mm (9.1” x 10.9” x 1.6”) Global services Voice Data SMS 4kbps AMBE+2 Up to 100 kbps 2-wire telephone interface One connector: RJ-11 female. 600Ohm ITU-T Rec. G.473, standard DTMF telephone. Supported cable length: up to 100 meters. LAN interface Two connectors: RJ-45 female 10/100Mbps. Supported cable length: up to 100 m PoE (max. 15.4W) on each port, Total PoE power: 32W. Conforms with IEEE 802.3 af I/O interface Output: Open switch hold-off voltage Open circuit resistance Closed switch voltage Input: Input resistance Voltage Voltage High Voltage Low One connector with 5 configurable inputs/outputs. Open collector, Short circuit protected at 1.5A and reverse polarization protected. max. 32V min. 130 kOhm max. 1VDC at 50mA min. 130 kOhm Max. 32V Min. 2.2V Max. 1.2V
Antenna interface One connector, TNC-female Inmarsat I-4 power: 1525 to 1559MHz: -94dBm to -64dBm 1626.5 to 1660.5MHz: -9dBm to +11dBm Inmarsat Alphasat power:a 1518 to 1559 MHz: -94 dBm to -64 dBm 1626.5 to 1660.5 MHz and 1668.0 – 1675.0 MHz: -9 dBm to +11 dBm Power supply: 18-29VDC Power input Connector: Mixed D-Sub 7W2 Nominal 12/24VDC (10.5 – 32 VDC; 11.5A – 4A) Max. source impedance: 85 mOhm at 12V, 500mOhm at 24V Maximum 20A at 24V, 5ms (start up) Maximum power consumption: 120W Power consumption Idle, no waves Idle, w. waves FTP transfer, w. waves Measured with wave simulator No peripherals connected: 15,67W IP handset, phone and PC connected: 16,82W Phone connected: 18,75W IP handset, phone and PC connected: 20,2W Download: 21,4W Upload: 31,09W Standby current Ignition function, off: max. 15mA Remote on/off in DC connector, off: max. 2mA Ambient temperature Operational: -25° to +55 °C Storage: -40° to +80 °C Relative humidity 95% non-condensing at +40 °C Equipment category Protected from the weather – IEC-60945 a. The extended frequency range (Extended L-Band or XL) is only available within Alphasat coverage. For coverage area, see Satellite coverage on page6.
Environmental Specifications
Water and dust IPX6 spray proof in all directions, no dust test. Ambient Temperature Operational: -25° to +55 °C Storage: -40° to +85 °C Operating humidity 100%, condensing Ice, survival Up to 25mm of ice Wind load, max. Normal operation with relative average wind velocity up to 200km/h (56m/s, 108 knots) Vibration, operational Random spectrum 1.05grms x 3 axes: 5 to 20 Hz: 0.02g2/Hz 20 to 150 Hz: -3dB/octave Sine: 2 to 13.2Hz: ± 1mm 13.2 to 100 Hz: 7m/s2 2h dwell at resonances Vibration, non-operational Random spectrum 1.7grms 2 h x 3 axes 6 h total): 5 to 20 Hz: 0.05g2/Hz 20 to 150 Hz: -3dB/octave Vibration, life test At least 1.7 g rms for 2 hours per axis. Spectrum: 5 to 20 Hz: 0.05 g2/Hz, 20 to 150 Hz: -3 dB/octave Shock Half sine, 20g/11ms Solar radiation 1120W/m2 according to MIL-STD-810F 505.4 Air Pressure, operational 1500m AMSL Air Pressure, transport 4572m AMSL MIL-SPEC 810E 500.4
Ship motions (MAX) Roll: 30°, period 4 sec., 0.7 g tangential Pitch: 15°, period 3 sec., 0.6 g tangential Yaw: 10°, period 5 sec., 0.3 g tangential Surge: 0.5 g Sway: 0.5 g Heave: 0.7 g Turning rate: 36°/s; 12°/s2 Headway: 22 m/s (42 knots)
Brand
Sailor
