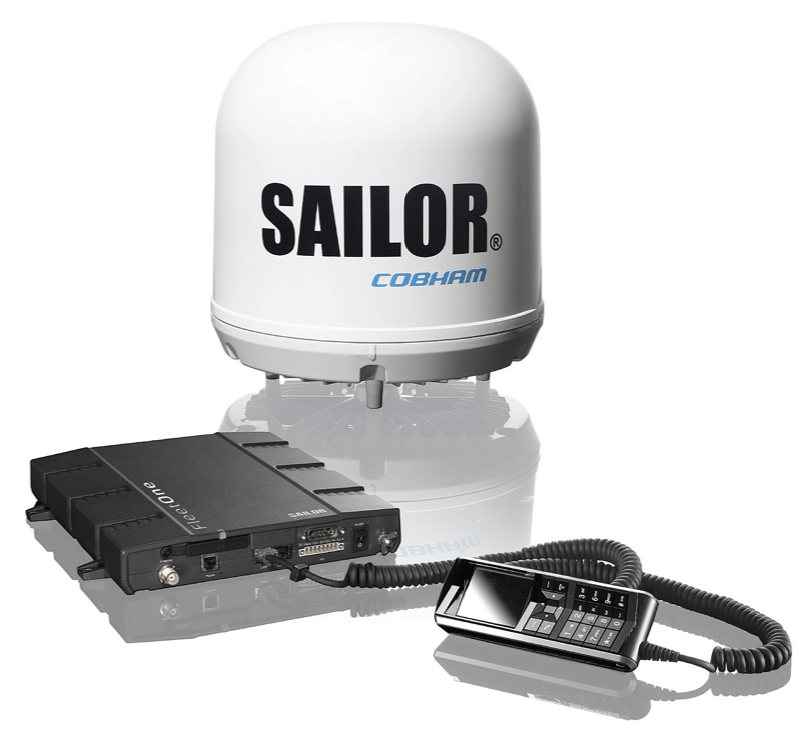

403744A-00581 Sailor Fleet One System, 10m Cable, with IP Handset

403744A-00581 Sailor Fleet One System, 10m Cable, with IP Handset

SAILOR Fleet One is the ideal complement to the Inmarsat Fleet One service, which utilises the existing Inmarsat-4 satellite constellation to deliver satellite voice and connectivity services ideal for use on smaller boats.

With its compact, lightweight antenna and simple installation, SAILOR Fleet One is a low-cost entry point to the world of maritime satcoms that keeps you connected at all times.

In This Pack (SAILOR Fleet One system):

• 403050C-00581 ADU(Above Deck Unit) Antenna
• 403739A-00581 BDU(Below Deck Unit) Terminal
• DC power cable (5.0m)
• Antenna cable (10.0m)
• Ethernet cable (2.0m)
• I/O connector
• Mounting bolts for the antenna (4pcs.)

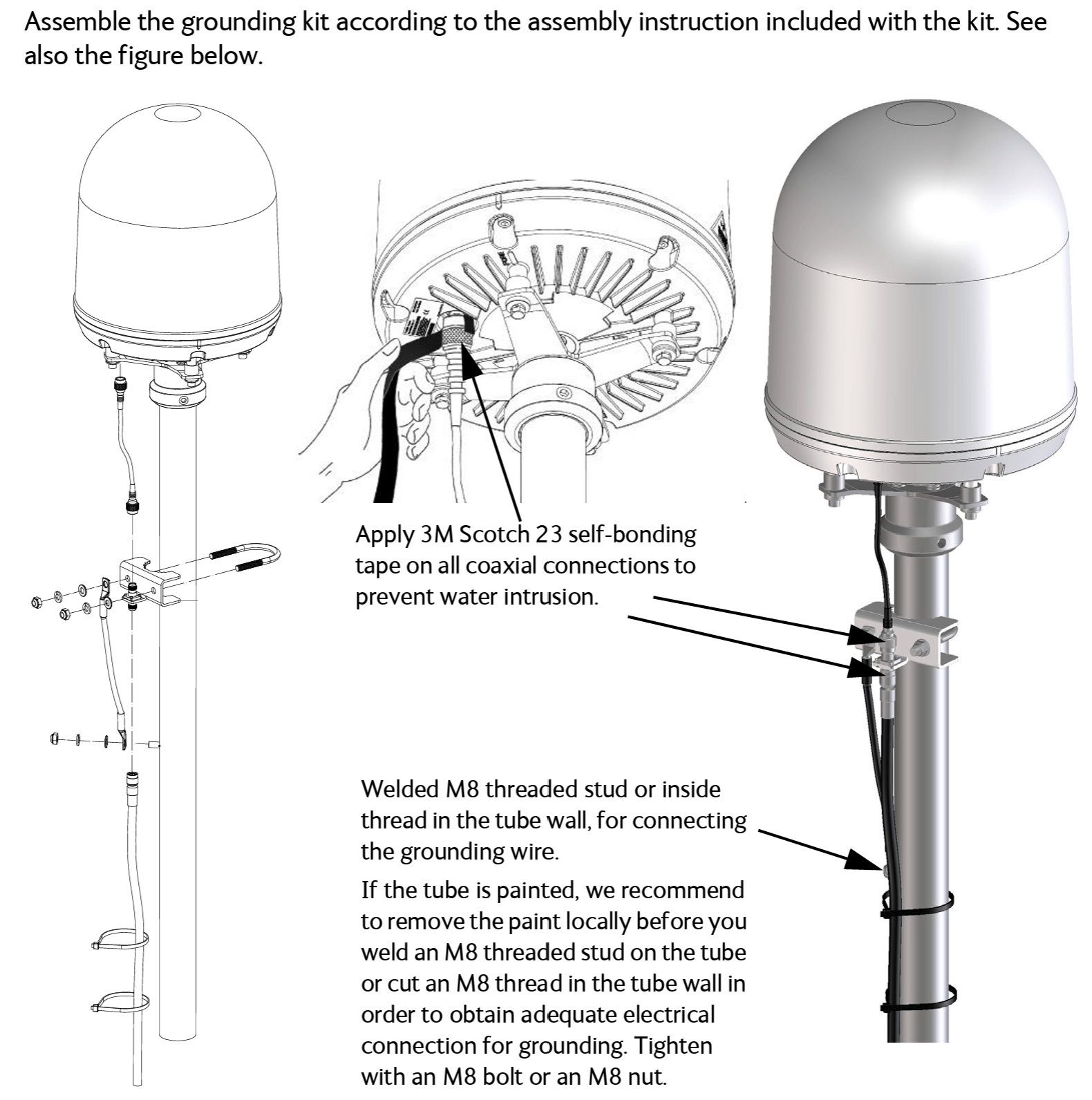

• Grounding kit for antenna
• Installation guide with CD, Quick guide and User & Installation manual
• …. and this pack also includes the Thrane IP Handset Kit, including:
• 403672A Thrane IP Handset, wired for Sailor Fleet One, FleetBroadband 150, 250, 500, and LT-4300
• 403674A Thrane IP Cradle, wired for Sailor Fleet One, FleetBroadband 150, 250, 500, and LT-4300

Recommended antenna cables

The table below shows recommended cable types and maximum cable lengths for SAILOR Fleet One.

• Cable Type: G02232-D up to 6.0m
• Cable Type: RG223-U up to 25.0m
• Cable Type: RG214/U up to 50.0m
• Cable Type: S 07272B-05 up to 95.0m

Check in the data sheet from the cable supplier that both the RF- attenuation and the DC resistance are kept within the maximum specified values:

• Antenna cable RF-attenuation at 1660 MHz: max. 20 dB incl. connector.
• Antenna cable modem-attenuation at 54 MHz: max. 4 dB. Antenna cable modem-attenuation at 36 MHz: max. 3 dB.
• Antenna cable loop DC-resistance max: 1 Ohm.

Also ensure that the specified minimum bending radius is respected. If this is not the case, the loss in the cable will increase.

Check the instructions from the cable supplier.

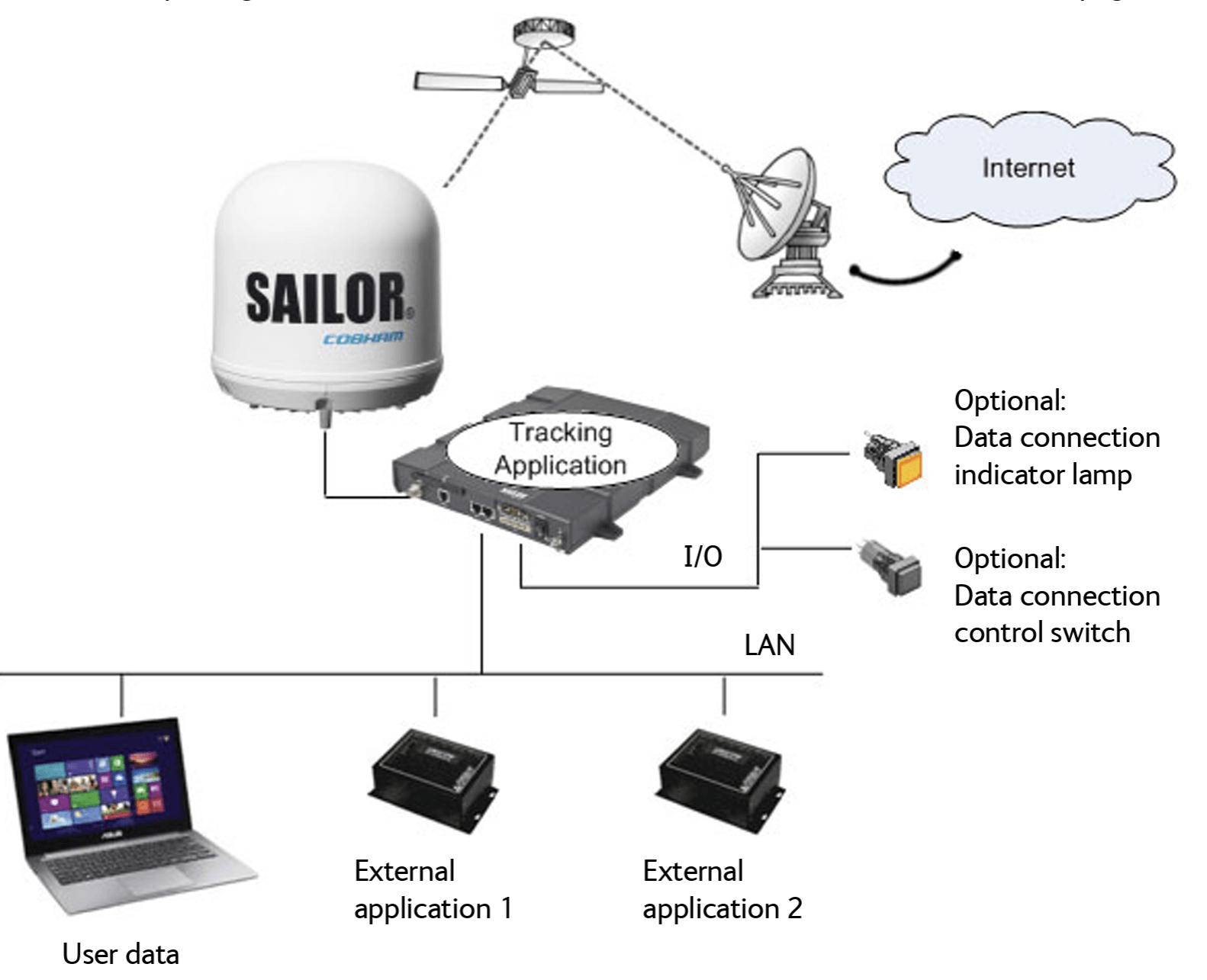

The SAILOR Fleet One system offers the following features and interfaces:

•  Simultaneous voice and data communication over BGAN
•  Full duplex, single or multi-user, up to: 100 kbps
•  Standard Voice (4 kbps)
•  Optional Voice Distress feature
•  2 LAN (Local Area Network) ports with PoE (Power over Ethernet)
•  1 Standard Phone port
•  1 multi-purpose I/O connector with 5 configurable inputs/outputs
•  1 SIM slot for your Fleet One SIM card
•  Support for GPS, GLONASS and BeiDou-1 positioning systems
•  Built-in DHCP/NAT router
•  Built-in web interface for managing phone book, messages and calls, and configuration
•  Input power: 10.5 – 32 V DC (11.5 A – 4 A)
•  CE certified
•  ATC resilient
•  Supports Inmarsat’s extended L-band services with Alphasat (Inmarsat I-4A F4)

Data & voice
SAILOR Fleet One enables data connectivity up to 150kbps and voice calling on a single line.

Its capabilities offer significant communications functionality for recreational and fishing users who need reliable voice communications and Internet connectivity on board, when cellular networks are not available, or just don’t offer the quality needed for good communication
