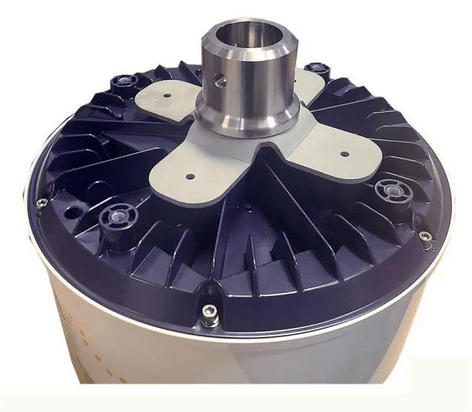

404330A-920 Sailor Mast Mount, for the 4300 ADU
NOTE: Compatible with 1.5in pipe/pole/mast (NOT included)
$597.30 Inc. GST
404330A-920 Sailor Mast Mount, for the 4300 ADU
A small platform of short mast must provide rigid support for the ADU fastening bolts and a rigid interface to the ship.
The antenna mast must be designed to carry the weight of the antenna (8 kg) plus the weight of the mast flange.
Whats in the Box:

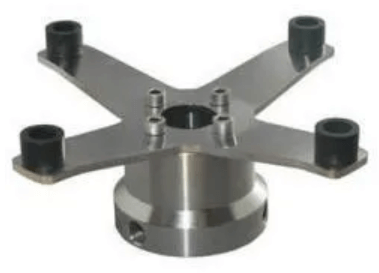

- 1pce Bracket3-way

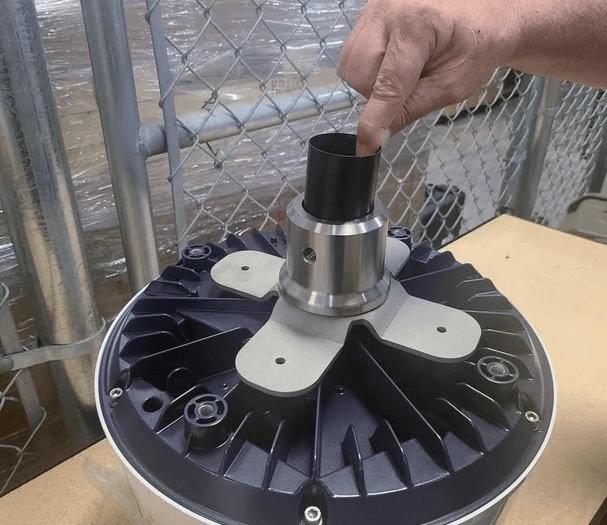

- 1pce Tube Adapter(compatible with 1.5in pipe – NOT included)
- 1pce Plug, Plastic
- 3pcs M12 x 12mm Set Screw
- 4pcs M6 x 16mm Bolt, Hex Head
- 4pcs Split/Ring Washer
- 4pcs Flat Washer
- NOTE: Compatible with 1.5in pipe/pole/mast (NOT included)

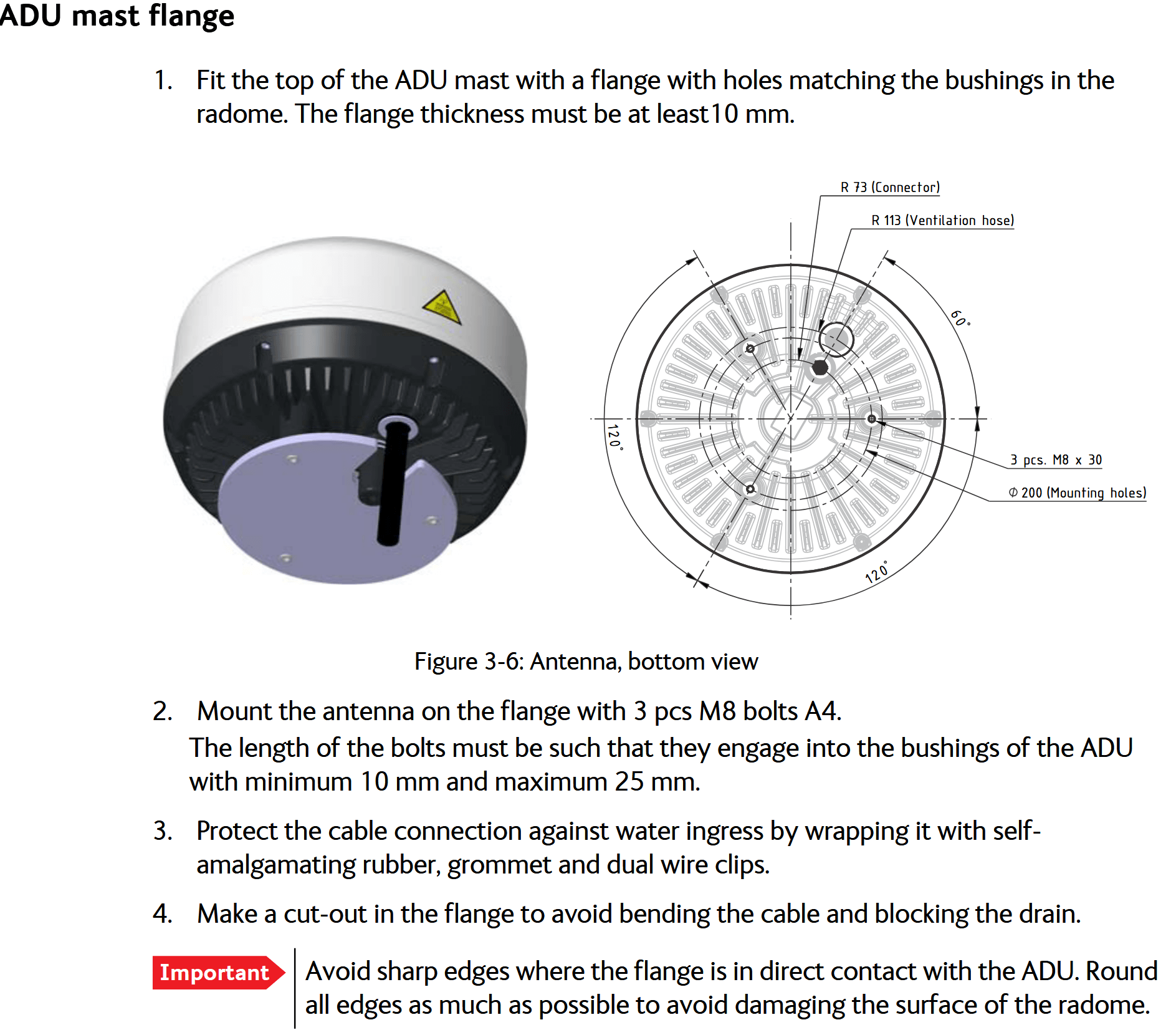

ADU Mounting Overview
Parts of the ship with heavy resonant vibrations are not suitable places for the ADU.
A small platform of short mast must provide rigid support for the ADU fastening bolts and a rigid interface to the ship.
The antenna mast must be designed to carry the weight of the antenna (8 kg) plus the weight of the mast flange.
The mast must also be able to withstand onboard vibrations and wind forces up to 108 knots on the radome, even in icing conditions.
