4049-00-01 Barrett 4049 HF Antenna Kit, Automatic Tuning, vehicle-mobile

4049-00-01 BARRETT 4049 HF Antenna Kit, Automatic Tuning

• Providing a frequency coverage of 1.5 to 30 MHz, the Barrett 4049 (P/N: 4049-00-01 Nato Green) features rapid tuning (typically less than 1.5 s) and low power consumption capabilities.
• The active tuning elements of the antenna are housed in a waterproof, high-impact resistant moulding.
• This housing incorporates a heavy duty anti-vibration mount at its base.
• The Barrett 4049 is supplied with a two piece fibreglass MIL-STD whip and spring.

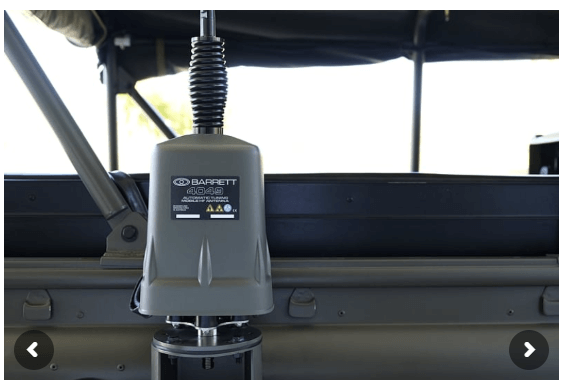

• The Barrett 4049 Automatic Tuning Mobile HF Antenna (P/N 4049-00-01) is specifically designed to interface with Barrett 4000 series HF transceivers.

The Barrett 4049 ATU is fitted with an internal GPS.

This internal unit can be used to provide GPS data as part of a GPS tracking network without the need to install a separate GPS, simplifying the system installation.

Standard# 4049-00-01 Antenna Pack Includes:

• Barrett 4049 Tactical Automatic Tuning Mobile HF Antenna 4049-00-01
• Standard spring – black 2019-00-04
• Interface cable 6 m – integral coaxial/control with connectors to suit PRC-4090 SDS 4019-00-02 DDN3810A
• Fibreglass split whip top section and bottom section – Length 1610mm 2019-00-03

NOTE: An optional NVIS Kit (P/N 2019-01-10) is available in the form a single flexible whip section of 3.5 metres.

Features:-
– Frequency range 1.5 to 30 MHz
– Fast tuning – typically less than 2 seconds
– Extremely robust Nylon-66 glass-filled casing
– Two piece MIL-SPEC whip and spring
– Immersible to 1 metre for 1 hour
– Meets MIL-STD 810G for shock, temperature, vibration and dust
– Built in GPS

Note:- See brochure for more detailed information.

Overview:-

Providing a frequency coverage of 1.5 to 30 MHz, the Barrett 4049 features rapid tuning (typically s) and low less than 1.5
power consumption capabilities.

When paired with a Barrett 4000 series HF Transceiver, the 4049 memory tune feature eliminates the need to retune an
antenna after a channel change.

When returning to a previously tuned channel, the the 4049 with a transceiver sets stored tuning result in less than 100 ms.

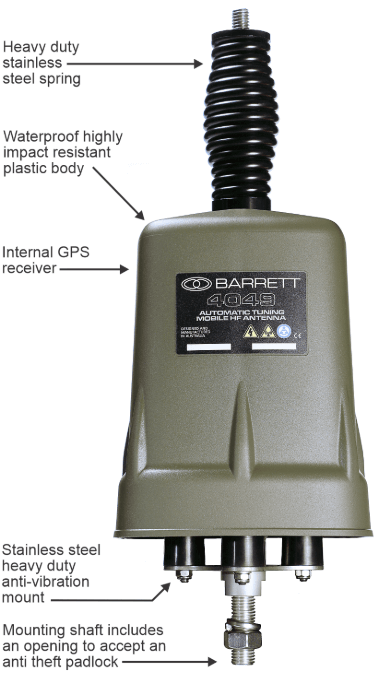

The active tuning elements of the antenna are housed in a waterproof, high-impact resistant moulding. This housing
incorporates a heavy duty anti-vibration mount at its base.

Even with its rugged construction, the Barrett 4049 weighs only 3.65kg.

Providing a frequency coverage of 1.5 to 30 MHz, the Barrett 4049 (P/N: 4049-00-01 Nato Green) features rapid tuning (typically less than 1.5 s) and low power consumption capabilities.

The active tuning elements of the antenna are housed in a waterproof, high-impact resistant moulding. This housing incorporates a heavy duty anti-vibration mount at its base.

The Barrett 4049 is supplied with a two piece fibreglass MIL-STD whip and spring.

An optional NVIS Kit (P/N 2019-01-10) is available in the form a single flexible whip section of 3.5 metres.

Specification:

1.5 – 30 MHZ Tuning Range
Compact Size
150 W (Digital, Voice and Data)
Internal GPS
ALE 2G/3G Compatible
Memory Tune (100 ms)
Mil-STD 810G
