4090-08-10 BARRETT 4075 HF Tactical Transmitter, 500W

The Barrett 500W Tactical HF Transmitter (P/N: 4090-08-10) is a compact easily deployed communications solution developed for tactical base station applications.

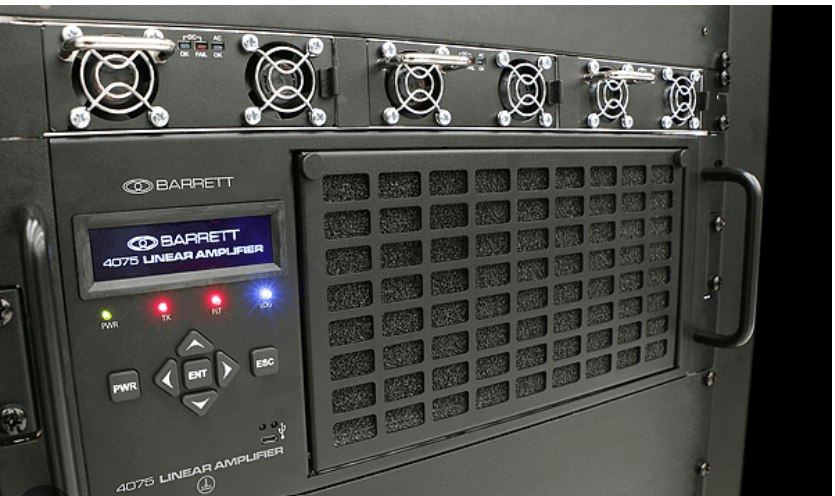

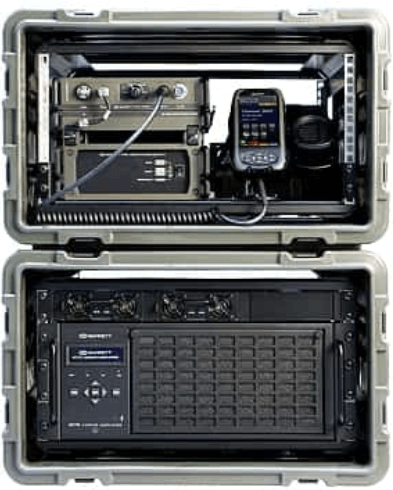

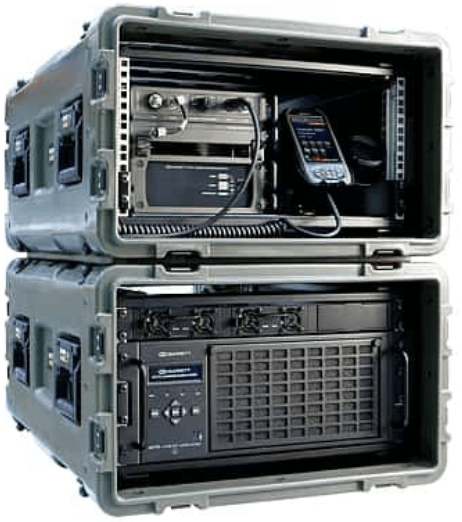

The transmitter comes as a complete package with our PRC-4090 exciter, power supply, 4075 linear amplifier and interconnecting cables all pre connected in a rugged 19” 5RU rack mount case. The 4075 linear amplifier unit (lower rack mount case shown in image to the right) can be ordered P/N: 4090-08- . as an individual unit under 05

The 4075 linear amplifier is designed and engineered for modern communications which are heavily data orientated, requiring the equipment to work at high duty cycles for extended periods of time.

Typical configuration

  • PRC-4090 HF SDR Transceiver/exciter
  • PRC-4090 System docking station
  • PRC-4090 AC power supply/battery charger
  • PRC-4090 Control handset
  • Amplified speaker
  • 4075 Linear amplifier (500W)
  • 4075 50V DC Power supply
  • Supro Box 19” 5RU Anti shock rack mount case

Features:

  • Liquid cooled linear amplifier
  • 1.5 – 30 MHz continuous coverage
  • 500 W continuous duty cycle (100%)
  • USB, LSB (SSB), CW, FSK, AM, ISB (Data)
  • 2G & 3G Automatic Link Establishment (ALE) options
  • Digital Voice and Secure Digital Voice
  • Housed in rugged 5RU rack mount case
  • IP Connectivity
  • Wireless operation via iOS, Android & Windows devices

The unique liquid cooled design increases cooling efficiency resulting in less system deterioration due to overheating in the power stages, extending overall equipment service life.

The amplifier natively supports the Barrett PRC-4090 SDR Transceiver/Exciter (or similarly configured Barrett 4050 Exciter) which when coupled requires no further tuning or adjustment.

A flexible I/O interface and analogue ALC feedback provide the transceiver/exciter full control over final output power.

Intelligent electronic controls protect the amplifier from input and output overload while providing a sophisticated early warning and diagnostic interface for system monitoring and event logging.

Customisable auxiliary ports are also available for enhanced system control.



INFORMATION > **********************************************************************************                  4090-00-10 BARRETT PRC-4090 HF SDR, Tactical ManPack

The Barrett PRC-4090 HF SDR Transceiver is the centerpiece of the Barrett range of tactical HF communications equipment.

It combines Software-Defined Radio technology with the intuitive “ease of use” that has become synonymous with the Barrett name.

When teamed with other Barrett HF products, the versatile Barrett PRC-4090 transceiver provides secure email, data transfer and telephone connectivity within a HF network and outwards to international telephone and internet networks.

The Barrett PRC-4090 transceiver can be controlled from all major mobile and desktop platforms including iOS, Android and Windows devices for wireless voice and radio control via the 4000 series HF remote control app.

This 4090-00-10 pack includes:

  • PRC-4090 HF Tactical manpack transceiver 4090-00-01 DDN3727A
  • PRC-4090 Control handset 4090-01-09 DDN3764A
  • PRC-4090 Handset Cradle and Molle strap 4090-05-04 DDN3765A
  • Control Handset cable 1.2 metres 4090-01-12 DDN3767A
  • H-250 Tactical Handset 4090-01-14 DDN3550A
  • PRC-4090 Li-ion Battery Pack 16Ah 4090-03-05 DDN3548A
  • Collapsible Whip 3m – for PRC-4090 4090-02-10 DDN3759A
  • Gooseneck – for PRC-4090 4090-02-11 DDN3760A
  • Counterpoise earth kit – single wire 4090-02-09 DDN3761A
  • Long wire throw out antenna 4090-02-06 DDN3618A
  • AC/DC Mains Adapter for use with 4090-03-04
  • Battery Pack 4090-03-04 DDN3762A
  • Daypack – colour Multicam 4090-01-36 DDN3763A
  • PRC-4090 operating and installation manual 4090-00-02 DDN3766A

Standard features:-
– 1000 channels with frequency range 1.5 to 30 MHz
– Power output 10 – 30 W PEP
– Software defined core & DSP
– Digital Selective Calling & Telcall – 4 & 6 digit
– GPS & RS232 interface
– Meets MIL-STD 810G for shock, temperature, vibration, dust and immersible to 1 m for 1 hr

Optional Features*:-
– ECCM Options (COMSEC/TRANSEC)
– MIL-STD 188-141B ALE (JITC certified)
– Internal fit high speed modem
* For additional options and accessories, please see relevant section detail.

Note:- See brochure for more detailed information.
– IEC mains cord (UK, European, AUS and US style* Selected at point of order)

Brand

Barrett
