4090-08-01 Barrett PRC-4090 HF SDR, Tactical RFDS Rapid Field Deployment System
4090-08-01 BARRETT PRC-4090 HF SDR, Tactical RFDS Rapid Field Deployment System

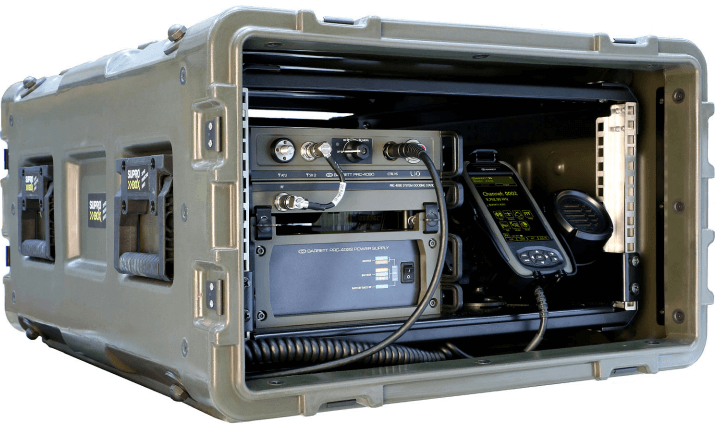

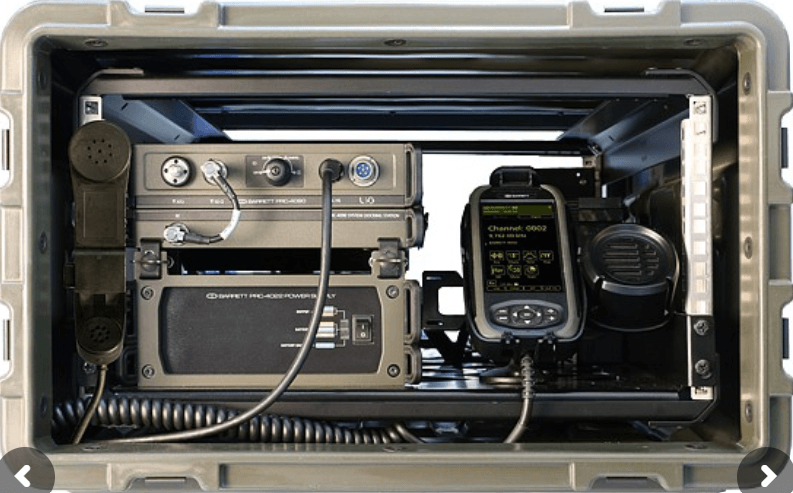

The Tactical PRC-4090 RFDS base unit is a rapidly deployable HF option for field personnel with the unit being operational within minutes.
Its highly ruggedized exterior allows this system to be transported over rough terrain with no damage being taken by the interior equipment.
The front and rear lids allow for quick and efficient access to the system making it suitable for field or station requirements.
Includes:
PRC-4090 HF SDR Transceiver
System docking station
Amplified speaker
Control handset
H250 handset
AC power supply module/battery charger
Internal battery (rear mounted SLA or LiFePO4 see below for battery options)
Battery isolator Switch (Rear mounted)
Supro box 19” 5RU anti-shock rack mount case
VHF/HF interoperability (with optional 2064 Radio voice bridge)
Key Features:-
– Field operational in minutes
– AC Mains and/or DC power
– Internal battery with on board charging
– Optional HF data transmission
– Multiple voice and data security options
– Stackable transportable, base station and vehicle/ field deployable
Weights and Battery Options:
4090 RFDS without on board battery – 43.7 kg
PRC-4090 RFDS with 36Ah LiFePo4 battery battery – 48.1 kg
PRC-4090 RFDS with 36Ah sealed lead acid battery – 55.0 kg
Case size:
External dimensions: 900 x 570 x H 374 mm including lids
INFORMATION > ********************************************************************************** 4090-00-10 BARRETT PRC-4090 HF SDR, Tactical ManPack
The Barrett PRC-4090 HF SDR Transceiver is the centerpiece of the Barrett range of tactical HF communications equipment.
It combines Software-Defined Radio technology with the intuitive “ease of use” that has become synonymous with the Barrett name.
When teamed with other Barrett HF products, the versatile Barrett PRC-4090 transceiver provides secure email, data transfer and telephone connectivity within a HF network and outwards to international telephone and internet networks.
The Barrett PRC-4090 transceiver can be controlled from all major mobile and desktop platforms including iOS, Android and Windows devices for wireless voice and radio control via the 4000 series HF remote control app.
This 4090-00-10 pack includes:
- PRC-4090 HF Tactical manpack transceiver 4090-00-01 DDN3727A
- PRC-4090 Control handset 4090-01-09 DDN3764A
- PRC-4090 Handset Cradle and Molle strap 4090-05-04 DDN3765A
- Control Handset cable 1.2 metres 4090-01-12 DDN3767A
- H-250 Tactical Handset 4090-01-14 DDN3550A
- PRC-4090 Li-ion Battery Pack 16Ah 4090-03-05 DDN3548A
- Collapsible Whip 3m – for PRC-4090 4090-02-10 DDN3759A
- Gooseneck – for PRC-4090 4090-02-11 DDN3760A
- Counterpoise earth kit – single wire 4090-02-09 DDN3761A
- Long wire throw out antenna 4090-02-06 DDN3618A
- AC/DC Mains Adapter for use with 4090-03-04
- Battery Pack 4090-03-04 DDN3762A
- Daypack – colour Multicam 4090-01-36 DDN3763A
- PRC-4090 operating and installation manual 4090-00-02 DDN3766A
Standard features:-
– 1000 channels with frequency range 1.5 to 30 MHz
– Power output 10 – 30 W PEP
– Software defined core & DSP
– Digital Selective Calling & Telcall – 4 & 6 digit
– GPS & RS232 interface
– Meets MIL-STD 810G for shock, temperature, vibration, dust and immersible to 1 m for 1 hr
Optional Features*:-
– ECCM Options (COMSEC/TRANSEC)
– MIL-STD 188-141B ALE (JITC certified)
– Internal fit high speed modem
* For additional options and accessories, please see relevant section detail.
Note:- See brochure for more detailed information.
– IEC mains cord (UK, European, AUS and US style* Selected at point of order)
