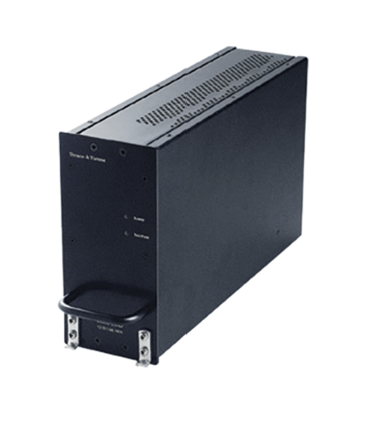

405014A-THD Cobham Aviator HPA High Power Amplifier for 700D

The High Power Amplifier is part of the AVIATOR 700D system, designed for flexible applications in aviation, including business, VIP, and military aircraft.

The AVIATOR 700D supports Inmarsat Aero H+ and SwiftBroadband services, offering high-speed data transmission, multiple simultaneous voice calls, and both wired and wireless connectivity options.

With a built-in router, PBX, and wireless access point, it enables reliable communication and internet access throughout the cabin, while the high-gain antenna ensures data rates up to 432 kbps for enhanced performance.

This pack includes the HPA(High Power Amplifier): part# 405014A-THD only.

405014A-THD Features

  • Small size (3 MCU) and low weight
  • No external forced cooling required
  • Installation outside pressure area
  • FAA PMA

405014A-THD Specifications

  • Weight: 11.2 lbs (5.1 kg)
  • Dimensions: 12.62 x 3.66 x 7.79 in (320.5 x 93 x 193.5 mm)
  • Altitude: MSL to 55,000 ft
  • Temperature: -55°C to 70°C
  • Connectors: ARINC 404A
700D SYSTEM REFERENCE – SEE BELOW……………………………………………………………….
The Cobham AVIATOR 700D system is engineered to take advantage of the latest technologies, such as, SwiftBroadband for increased reliability and connectivity.
The SwiftBroadband Background Data and Standard Voice channel allow users to access a shared data channel and a compressed high-quality voice channel at the same time.
The Aviator 700D System is a mounted Aeronautical Communication System supporting simultaneous voice and data communication though Inmarsat BGAN satellite service.
The standard 700D system components consist of the following Items:
 SDU (Satellite Data Unit) 405035A-THD (TT-5035A-THD)
 HPA (High Power Amplifier) 405014A-THD (TT-5014A-THD)
 SBU (Satellite Broadband Unit) 405040A-THD (TT5040A-THD)
 Type-F DLNA (Diplexer and Low Noise Amplifier) 405013A (TT-5013A)
 HGA (High Gain Antenna) e.g. 405007A (TT-5007A-THR)
 RF-Splitter 405038A-003 (TT-5038A-003)
 RF-Coupler 405038A-004 (TT-5038A-004)
AVIATOR 700D is an Inmarsat SwiftBroadband HGA (Class 6) System supporting:
• Single Channel SwiftBroadband
• Circuit-switched standard voice
• Background IP up to 432 kbps
• Streaming IP at 8/16/32/64/128 kbps
• SB X-Stream services
• ISDN service or 3.1 kHz audio
Inmarsat Satellite Land Earth Station – RAN Cobham AVIATOR
Description of Equipment:
The 405013A Type F Diplexer and Low Noise Amplifier (DLNA) supports the SwiftBroadband aeronautical satellite communications service.
The transceiver meets the applicable requirement of RTCA/DO-210D “Minimum Operational Performance Standard for Geosynchronous Orbit Aeronautical Mobile Satellite Services (AMSS) Avionics”.
The AVIATOR 700D system is comprised of four units:
  • The 405035A-THD Satellite Data Unit (SDU)),
  • the 405014A-THD High Power Amplifier (HPA),
  • the 405040A-THD Satellite BGAN Unit (SBU) and
  • the 405013A Type F Diplexer and Low Noise Amplifier (DLNA).
The 405040A-THD (SBU) & The 405035A-THD (SDU) supports Inmarsat SwiftBroadband signals using BPSK, QPSK and 16QAM.The SDU/SBU signals are combined and amplified for transmission by the 405014A-THD (HPA).
The AVIATOR 700D is a unique multi-channel solution.
It combines global voice, fax and data capabilities of the Inmarsat Classic Aero, SwiftBroadband and Swift64 service.
The AVIATOR 700D system provides one baseband communication channel capable of supporting simultaneous full-duplex of SwiftBroadband functionality.
The System functions in the 1525 – 1559MHz receive band and 1626.5 – 1660.5MHz transmit band.

Brand

Aviator
