SBB-AV-300SP-IGA Cobham Aviator 300SP System, Single Channel Class 7, Intermediate Gain Antenna
SBB-AV-300SP-IGA Cobham Aviator 300SP System, Single Channel Class 7, Intermediate Gain Antenna
Available in single or multichannel configurations, AVIATOR SP has a small component footprint, a variety of mounting options, and Cobham’s compact antennas that are qualified for helicopter installation.
Cobham’s SP SATCOM solutions have been proven and tested in a variety of helicopter applications, with installations on the Mi-8 for forward-looking infrared (FLIR) imagery and communication, the AW101 and EH101 for ‘Office in the Sky’ services, the UH-60 Blackhawk for military connectivity, and the Bell 407 for FLIR video and communication.
The range encompasses single-channel systems featuring speeds up to 432 kilobits per second (Kbps), enabling L-band SATCOM on even the most space-restricted aircraft. The multichannel systems offer the highest performance available on SwiftBroadband at up to 1,600Kbps. The systems include a choice of Cobham High Gain Antenna, IGA-5001 Intermediate Gain Antenna and LGA-3000 Low Gain Antennas.

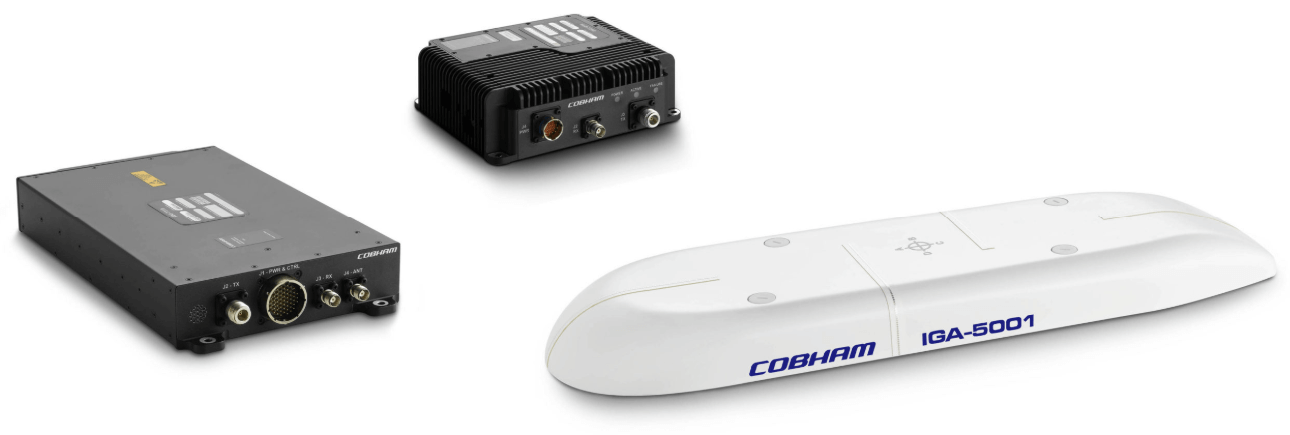

The Standard Package AVIATOR 300SP (class 7 single channel Inmarsat SB capable system) includes:
- SDU-7320,
- HLD-7260 and

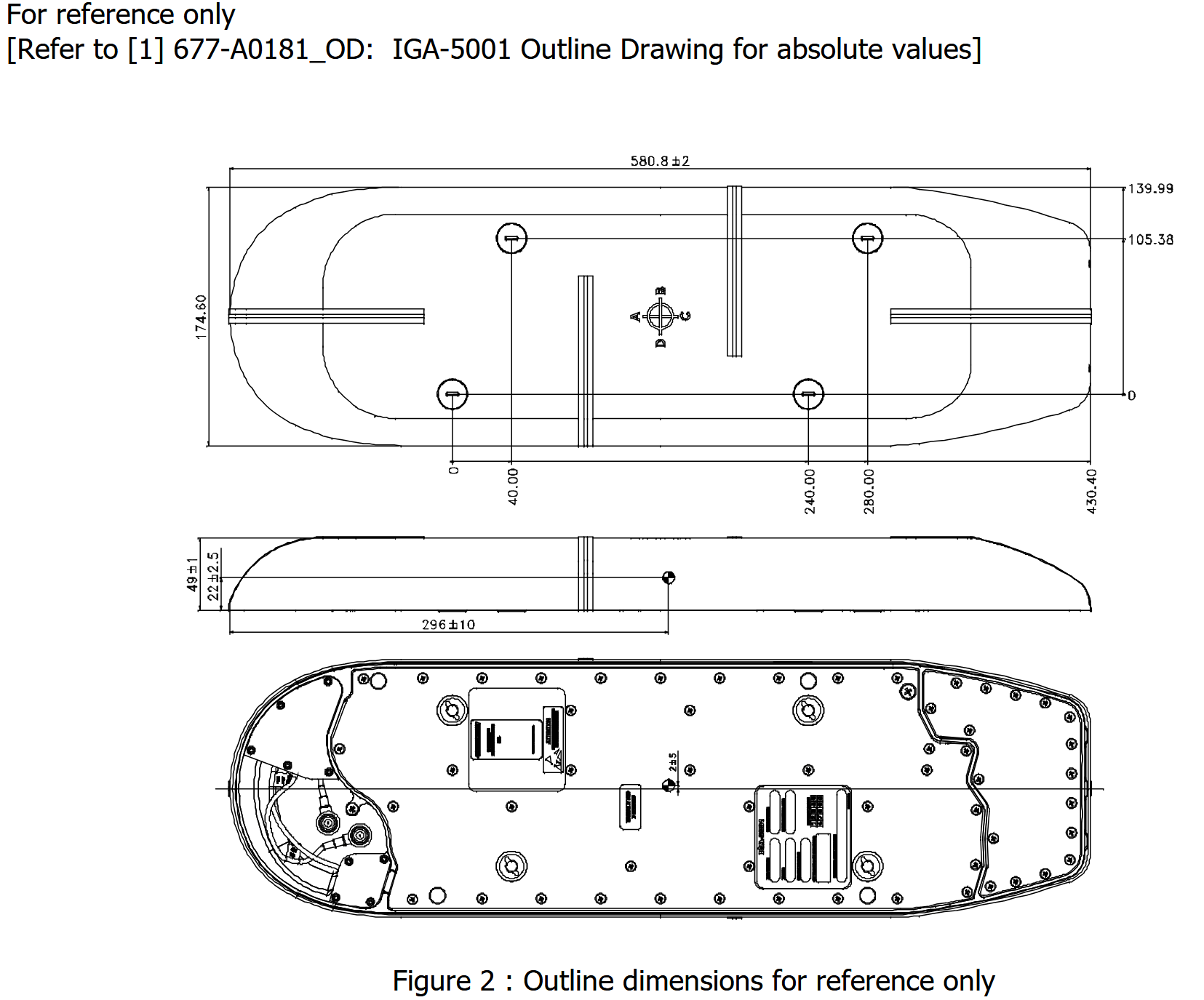

- IGA-5001 – Intermediate Gain Antenna
- NOTE: Variations available upon request – please contact our engineering support.
The SDU-7320 is a single or dual channel SDU packaged in a 2 MCU ARINC 600 enclosure. This unit fits into an ARINC
600 tray and is ideal for installation in the aircraft avionics bay.
SDU-7320 2 Channel Features:
– 2 MCU package
– Integrated SIP server
– 1 or 2 channel option
– Can be used in a variety of system configurations with any Cobham High Gain or Intermediate Gain Antenna
– Qualified for installation in non-pressurized and non-temperature controlled environments
– Inmarsat Approvals: Class 6 Multi Channel B6CH01, Class 7 Multi Channel B7CH01
User interfaces:
– Ethernet: 4 x 10BaseT user ports
– DHCP Server
– Power Over Ethernet (16W Group 1)
– PPPoE Server
Front panel maintenance port
– ISDN: 2 ports support up to 8 terminals
– POTS: 4 x Two-wire phone interfaces
SwiftBroadband is an Inmarsat packet-switched service that offers in-flight connectivity (access to the Internet, email, voice-calls and any other application used at home or in the office, e.g. Skype, Facebook).
The system can also support video streaming, with typical applications in video conferencing and aerial surveillance.
Background data rates of up to 432kbps per channel, depending on the class of service(determined by the class of antenna – LGA, IGA or HGA).

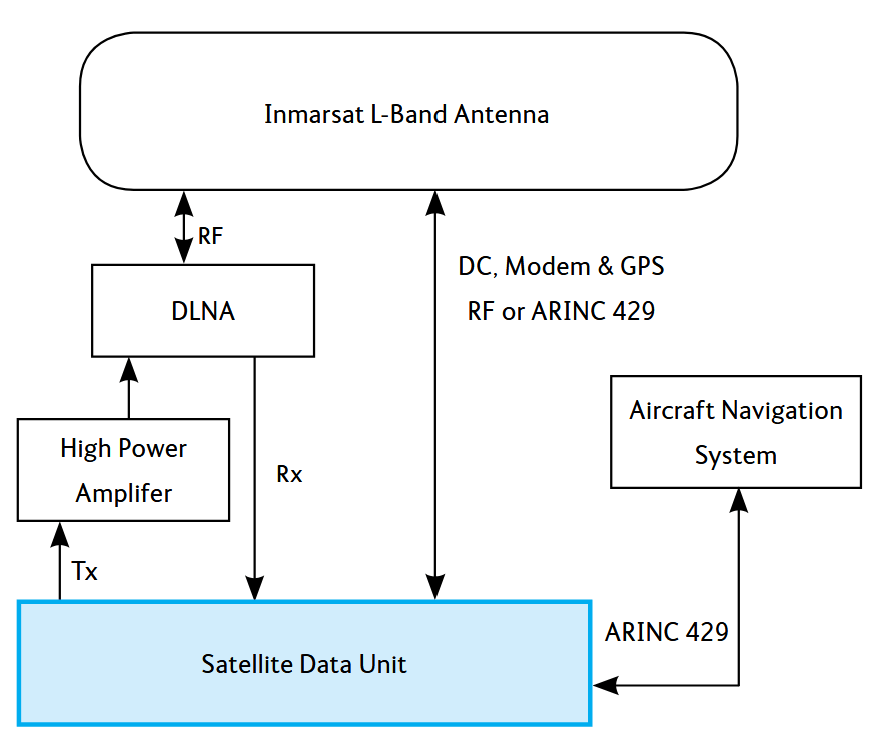

The Cobham AVIATOR SP SDUs (Satellite Data Units) provide the radio modem and system control functionality of the
SwiftBroadband system.
These SDU’s have one or more of the following unique differentiators:
– they support multi-channel SwiftBroadband
– they are available in a flange mount configuration
– they have AriNC 600 connector interfaces
– they offer extended temperature and vibration qualifications
