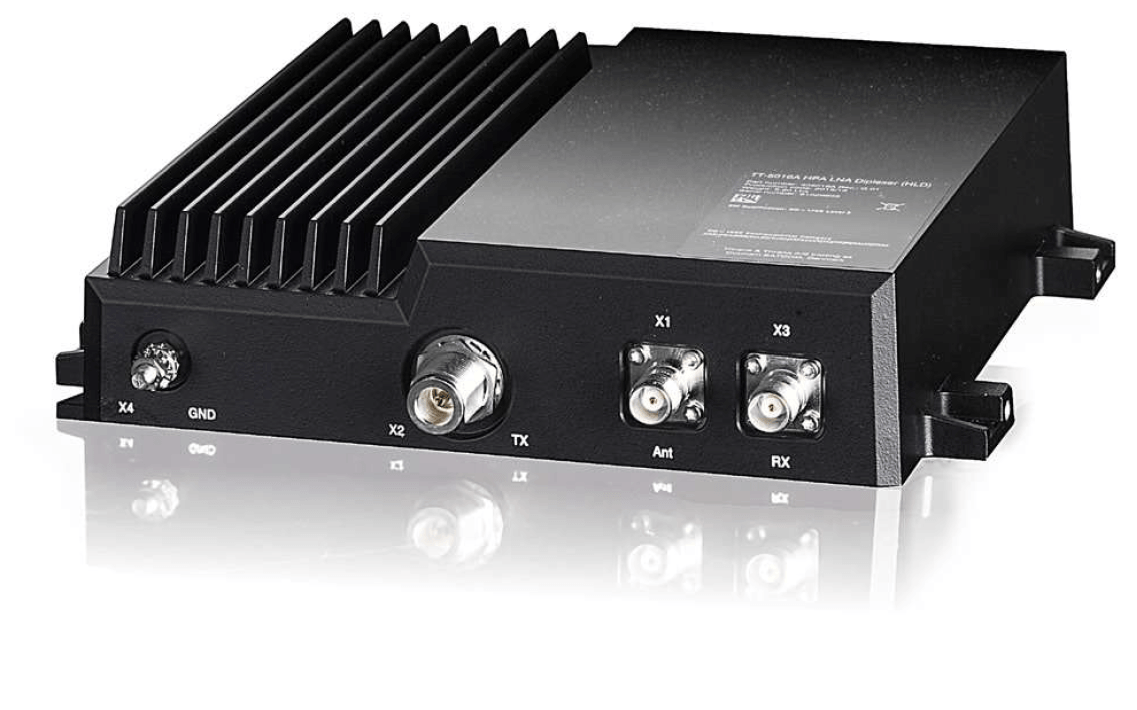

405016A Cobham Aviator HLD High Power Amplifier, Low Noise Amplifier, Diplexer Unit for AVIATOR 200/300/350 series

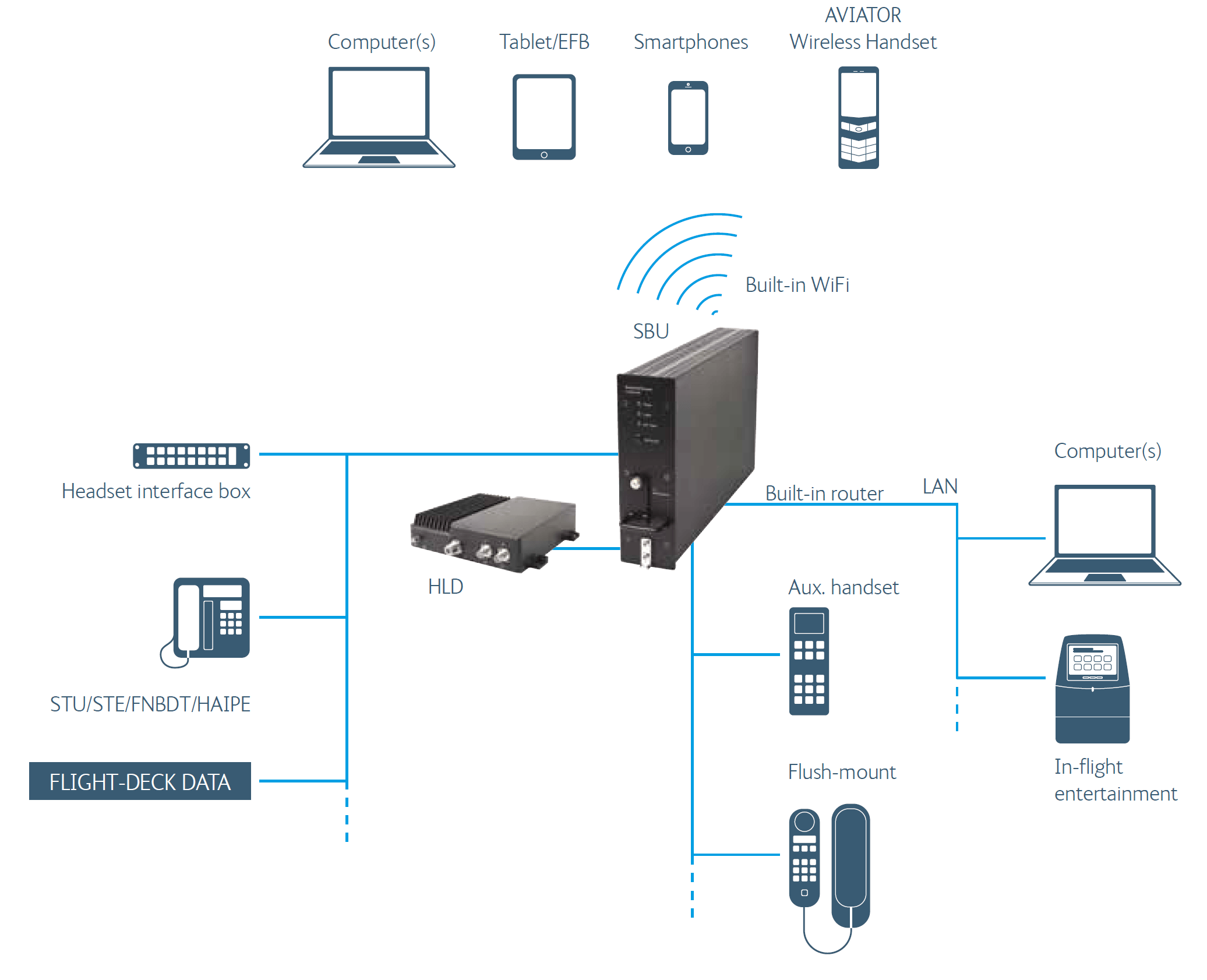

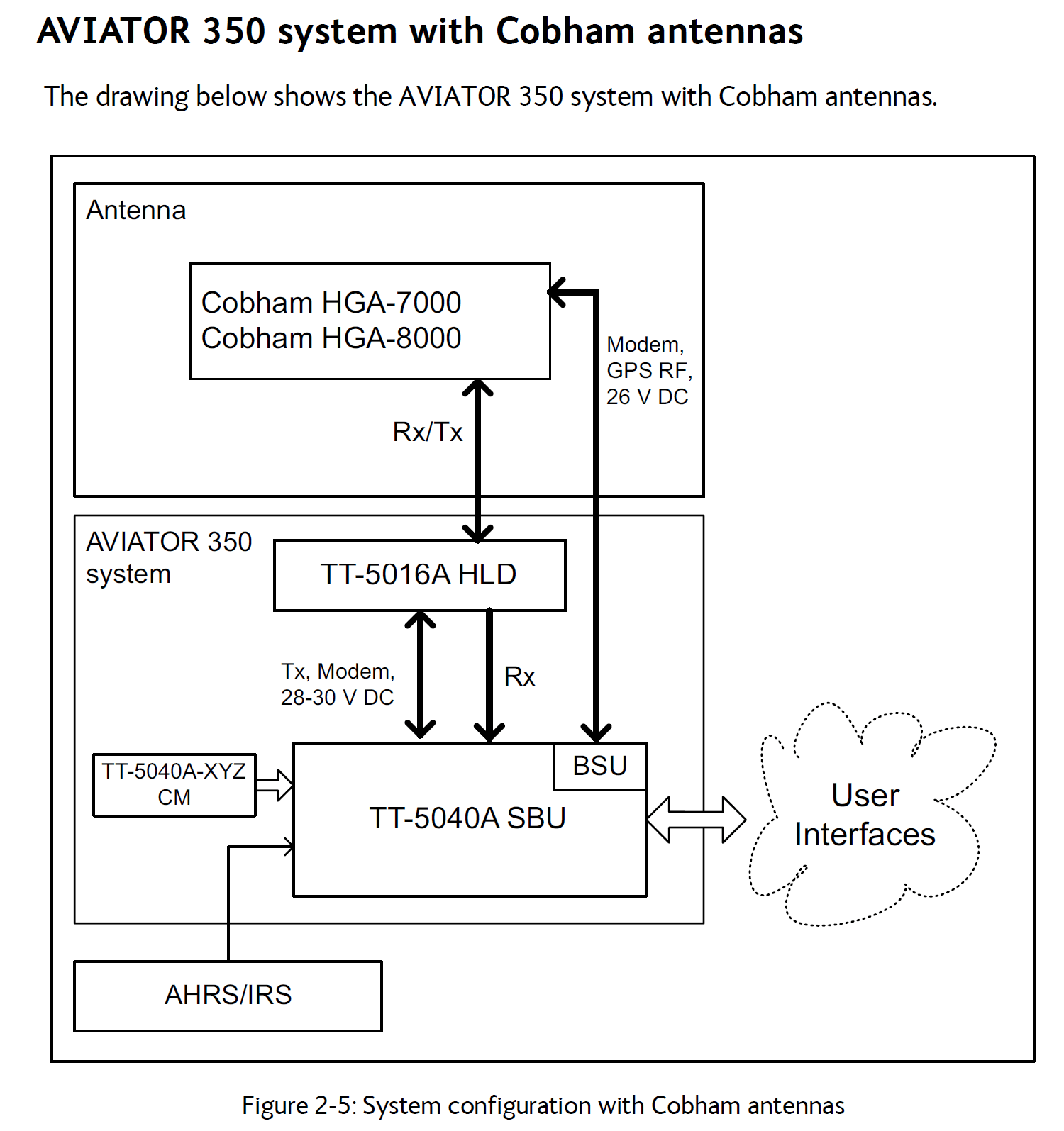

- The AVIATOR 200/300/350 system is a compact, light-weight aeronautical satcom system that uses Inmarsat’s SwiftBroadband services.
• TT-5040A SBU SwiftBroadband Unit
• TT-5040A-001 or TT-4050A-8xy CM Configuration Module, inserted in the SBU. The CM also holds the SIM card, which provides access to the SwiftBroadband services. The
SIM card is included in the delivery.
• TT-5016A HLD High Power Amplifier, Low Noise Amplifier and Diplexer in one unit.(This Package)
405016A – Whats in the Box?
- TT-5016A HLD Un it only(compatible with Aviator 200/300/350)
- Documentation Pack(for TT-5016)
- Note: Use part# TT-5016A-THD for Aviator 200D/300D/350D series)
- Small size and low weight
- Powered through SBU – no power wires to HLD required
- No forced cooling required
- FAA PMA
Basic Specs
- Dimensions(L/W/H): 228 x 200 x 50mm(8.98 x 7.87 x 1.97in)
- Mass: 2.6kg (5.7lb)
- Power: Powered through SBU
- Altitude: MSL to 55,000 ft
- Temperature: -55C to +70C
Environmental Qualification
- DO-160E
- [(A2)(F2)X]BBB[SCL]E[(Y)(W)]XXFXZXXX[ZC]
- [RR]M[A3J33]XXAX
