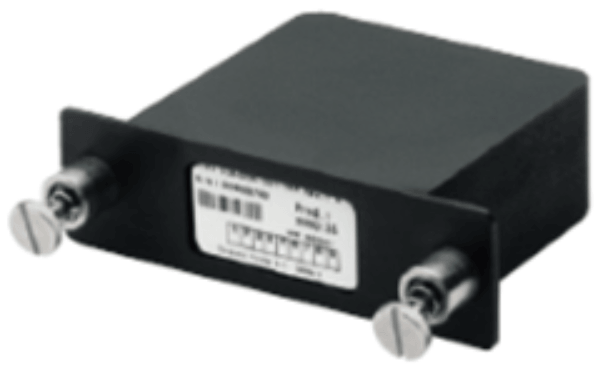

405040A-001 Cobham Aviator Configuration Module(CM), No Key and No Options

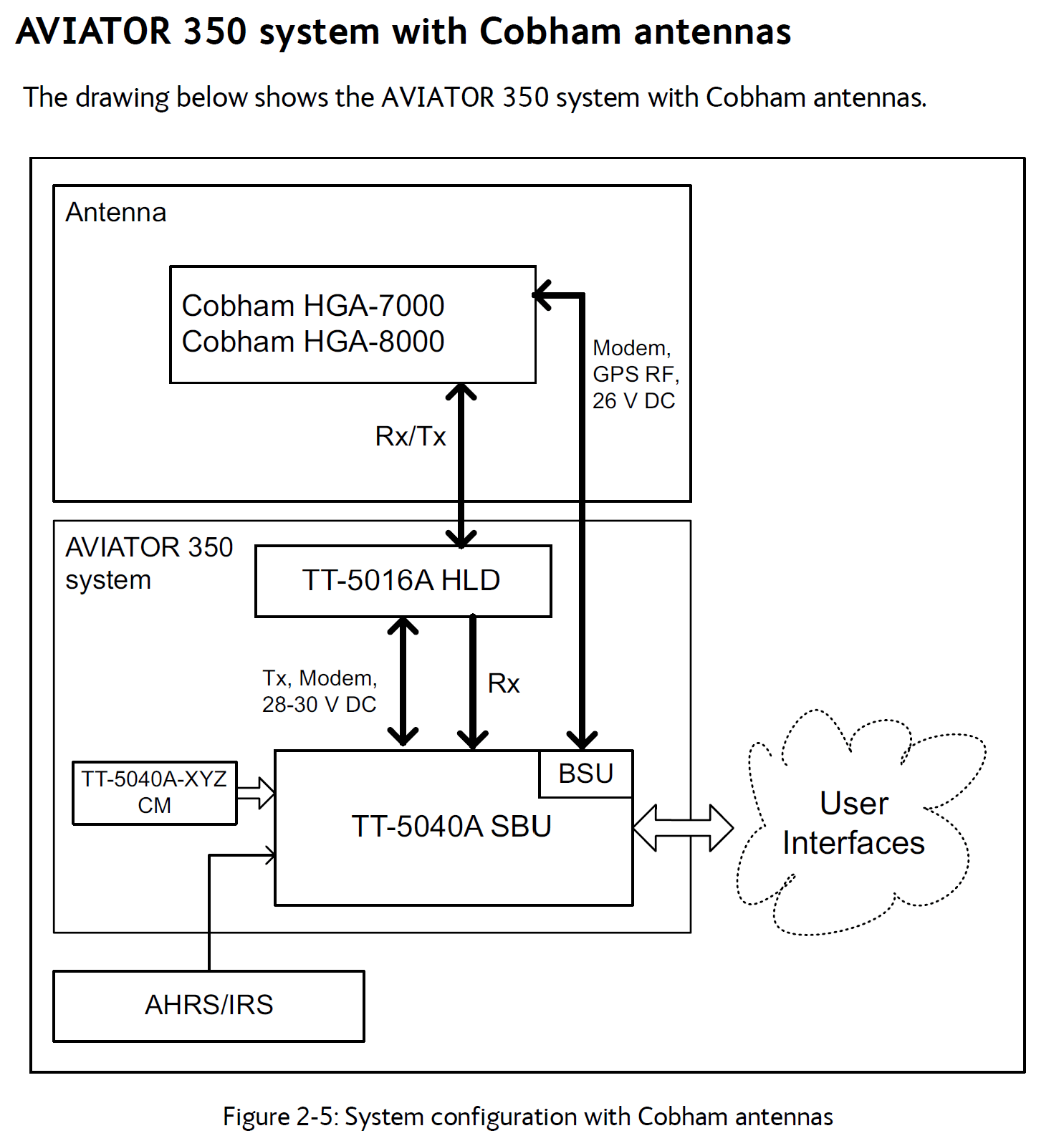

- The AVIATOR system is a compact, light-weight aeronautical satcom system that uses Inmarsat’s SwiftBroadband services.
- TT-5040A SBU SwiftBroadband Unit
- TT-5040A-001 or TT-4050A-8xy CM Configuration Module, inserted in the SBU. The CM also holds the SIM card, which provides access to the SwiftBroadband services. The SIM card is included in the delivery.
- TT-5016A HLD High Power Amplifier, Low Noise Amplifier and Diplexer in one unit.
- TT-5040A-001 CM Unit only(No Key and No Options)
- Documentation Pack(for TT-5040A-001)
- Stores system configuration parameters
- Located at the rear of the SBU
- Contains the SIM card
- Configured through SBU web interface
- Contains phone book
- CM may be removed or inserted for easy SBU exchange
- FAA PMA
Basic Specs
- Part Number 405040A-001
- Dimensions(L/W/H): 47 x 45.5 x 20mm (1.85 x 1.79 x 0.79in)
- MassL 0.07kg (0.15lb)
- Altitude MSL to 55,000 ft
- Temperature: -25C to +55C
Environmental Qualification
- DO-160E
- [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]A[RB][ZC]
- [RR]M[A3J33]XXAX
NOTE: AVIATOR 300 Key (IGA) Software key allowing system use with an Intermediate Gain Antenna (IGA) Part Number 405040A-007
