406282A-00500 Sailor 6282 Transponder, AIS

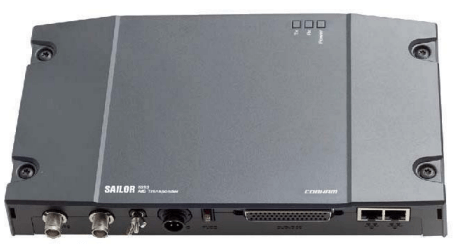

The SAILOR 6282 AIS Transponder is a combined Class A and Inland AIS station.It has connectors for GNSS and VHF antenna, a ground stud, connector for DC power (12–24 VDC), multi connector for interfaces and 2 LAN connectors.

The SAILOR 6282 AIS Transponder is always on, provided there is DC power.The SAILOR 6282 AIS Transponder supports 3 sensor inputs for e.g. GNSS and ROT and 4 presentation interfaces for e.g. ECDIS, Radar, Long Range, Silent Mode and Pilot Plug,. It also has inputs for Blue Sign functionality, Low Power Forced Control (gas alarm) and output for alarm. The SAILOR 6282 AIS Transponder has three LEDs showing the status of Power, Rx and Tx.

SAILOR 6282 AIS TRANSPONDER – SPECIFICATIONS

• Weight 1.15 kg
• Dimensions (L x W x H) 160 x 270 x 42 mm
• Equipment class Protected, according to IEC 60945
• Input voltage 10.8VDC to 31.2VDC
• Power consumption 12W (0.5A @24 VDC input voltage)
• Temperature -15°C to +55°C (Operational) -30°C to +80°C (Storage)
• Compass Safe Distance 55 cm (standard magnetic compass) 45 cm (Emergency magnetic compass)
• Receivers 156.025 – 162.025 MHz (TDMA) 56.525 MHz (Channel 70, DSC)
• Channel bandwidth 25 kHz
• RF Output Power High: 12.5 W, Low: 1W
• Low power forced control (gas alarm): 1W
• Frequency 156.025 – 162.025 MHz
• VHF connector TNC female
• GPS connector TNC female
• VHF and GPS cable RG214 or better
• Connection to SAILOR 6004 LAN (LWE IEC 61162-450)
• Control Panel
• Connections to sensors and PI 50 pin sub-D
