406285A-00500 Sailor 6285 GNSS Active Antenna, GPS and GLONASS

406285A-00500 Sailor 6285 GNSS Active Antenna

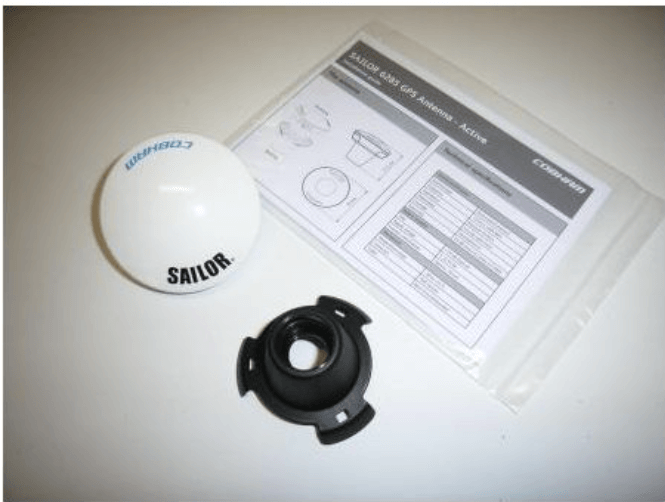

The SAILOR 6285 GNSS Antenna – Active is a robust, sealed and waterproof GPS and GLONASS antenna (classified IPx6 & IPx8).

SAILOR 6285 GPS ANTENNA – ACTIVE

• Dimensions Ø: 91 mm, H: 77.5 mm
• Weight 0.15 kg

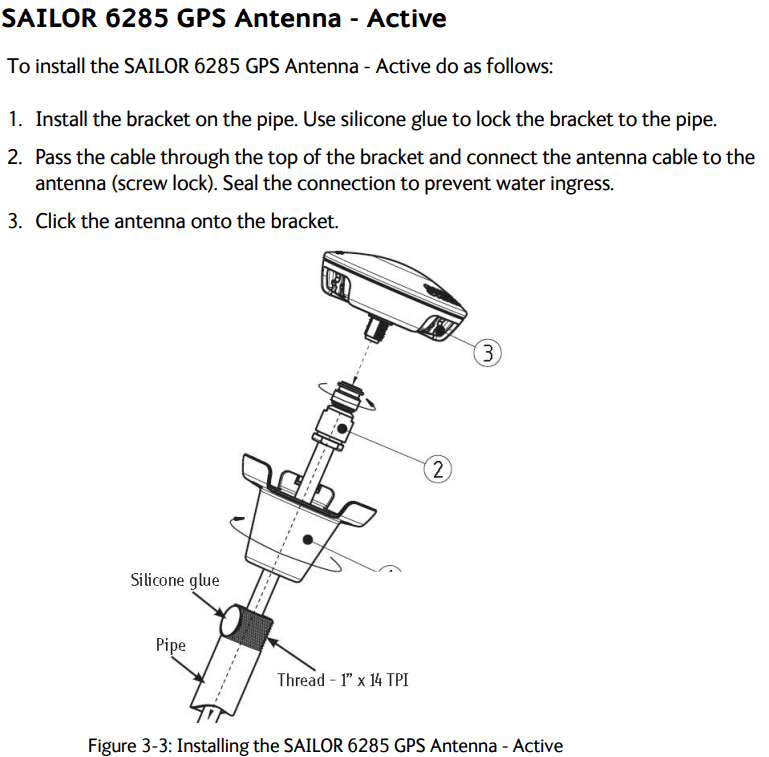

• Mounting Bracket mount on pipe, thread 1” x 14 TPI
• Equipment class Exposed, according to IEC 60945
• Antenna type Active patch antenna
• Frequency 1570 to 1608 MHz
• Impedance Nominal 50 Ohm
• Polarization Circular right-hand
• Coverage Hemispherical
• Selectivity 45 dB down at center ±25 MHz
• Gain 28 dB
• Supply voltage 5 ±1 VDC
• Current consumption Approx. 30mA
• Connector TNC female
• Cable RG214 recommended
• Operating temperature -40°C to +55°C
• Storage temperature -40°C to +80°C
