406390A-00501 Sailor 6390 Navtex Receiver, includes Power Supply, HF/SSB Antenna, Cable 40m

406390A-00501 Sailor 6390 Navtex Receiver, includes Power Supply, HF/SSB Antenna, Cable 40m

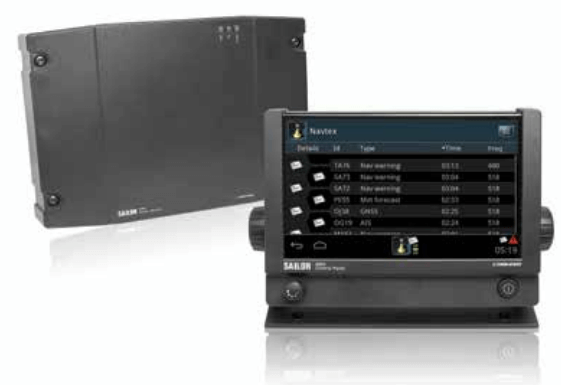

This 6391 Navtex System sets new standards in functionality and flexibility for SOLAS mandated Navtex receivers and is approved according to GMDSS (EU Marine Equipment Directive).

As a black box system, with separate touch screen user-interface, it introduces a new approach that enhances safety and efficiency, whilst being fully SOLAS compliant.

It is a next generation system offering new installation and operation possibilities today, with the potential to become part of the fully networked bridge in the future.

406390A-00501 > In this Full System Pack

• 6390 Navtex Receiver Unit
• Ethernet Cable RJ45, 5m
• Mounting Tool for Terminal Blocks
• Fuse Puller
• Cable Ties(zip-lock): 8pcs 5 x 200mm
• Fixings: 5pcs M4x12mm TORX 20, 5pcs ST3.9 x 19mm TORX,
• Test Sheet
• Documentation – Installation Guide and User Manual
• In addition this Full System pack includes the following Sub-Components:
• SAILOR N163S Power supply, 110/220V AC to 24V DC, 7A, black
• Marine Antenna HF/SSB KUM600-2 Rx, including Mounting kit N70F
• Coax Plug PL259 RG213 crimp x2
• Coax cable RG 213/u – 40m

Choosing the SAILOR 6391 Navtex Systems gives you:

• 100% network integration – flexible installation options
• Multifunction user friendly touch screen interface – works with different devices
• East and cost-effective servicing and software updates
• SOLAS compliance for Navtex messages – part of the SAILOR 6000 GMDSS Series
• Future-proof – ready for bridge and communication system integration

Overview

• The SAILOR 6390 Navtex Receiver receives Navtex messages on the international Navtex frequencies 490 kHz, 518 kHz and 4,209.5 kHz.
• It can hold 2000 messages per frequency.
• Messages are not affected by a power cycle.
• If not tagged to avoid deletion, messages are cleared from the message log after 66 hours.
  You can customise which stations to receive messages from and which message types you want to receive.
• The unit has an alarm relay which is only activated if a message of category D is received (i.e. SAR, Mayday relay, Pirate attack etc.).
• The SAILOR 6390 Navtex Receiver is always on when powered.
• With its LAN interface the transponder and the display can be separated,  giving access to the Navtex information available where it is needed

Integration Flexibility
Supports the ThraneLINK application interface. This makes servicing easy.
The system is designed to be used standalone or as part of an Integrated Navigation System (INS).
