406588A-00500 Sailor 6588 GNSS-DGNSS Receiver for 6570 System, 6570 Basic

406588A-00500 Sailor 6588 GNSS-DGNSS Receiver for 6570, 6560 Systems, 6571, 6561 Basic

Together with the SAILOR 6286 Active DGNSS antenna, The SAILOR 6588 DGNSS Receiver acts as the main DGNSS position sensor on board SOLAS vessels.

The black box brain

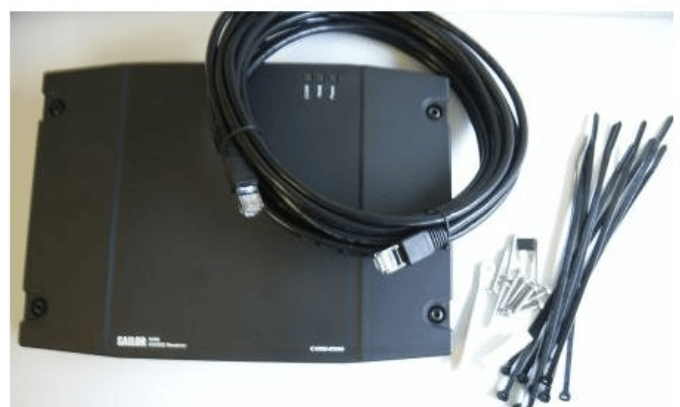

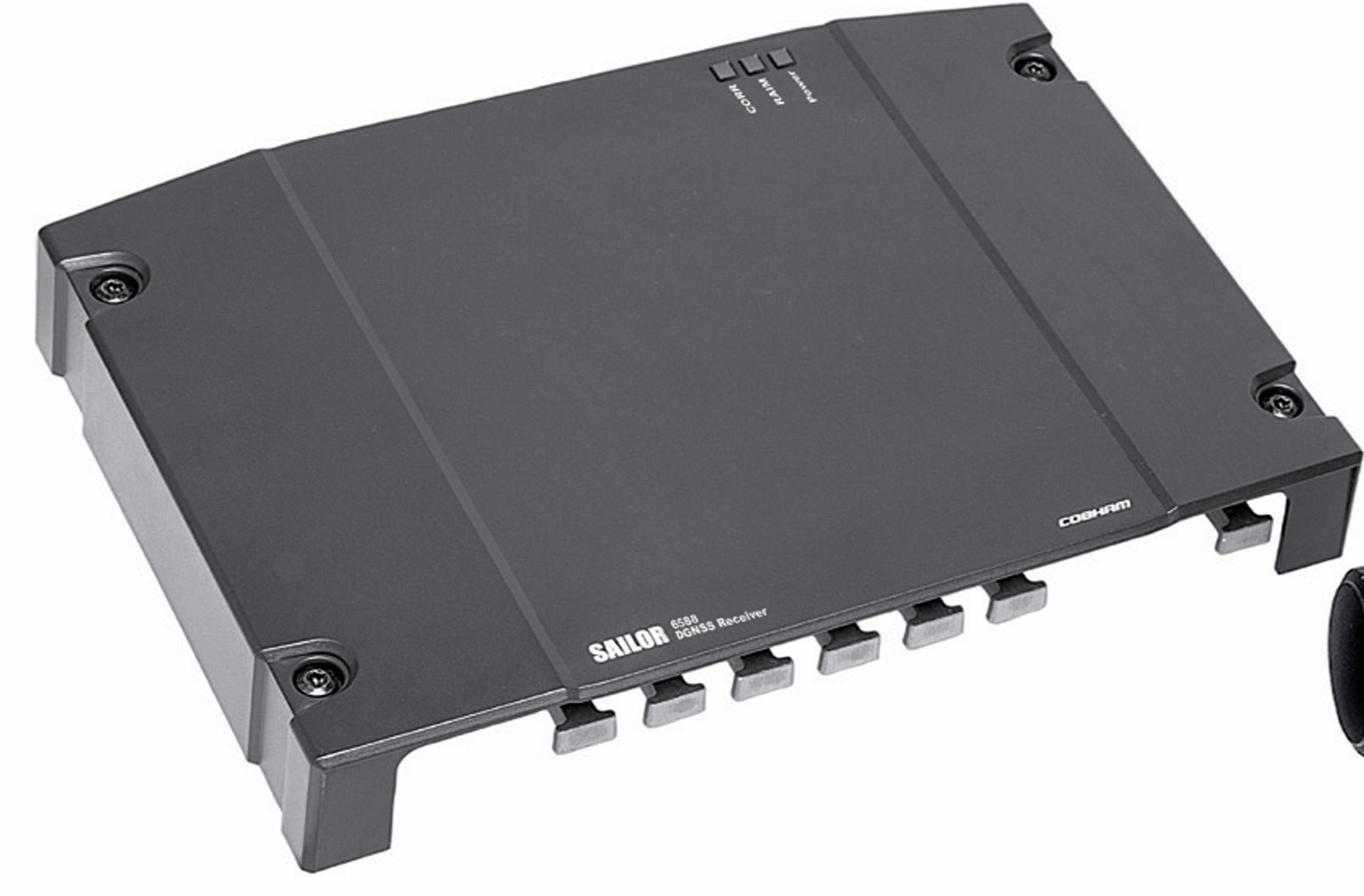

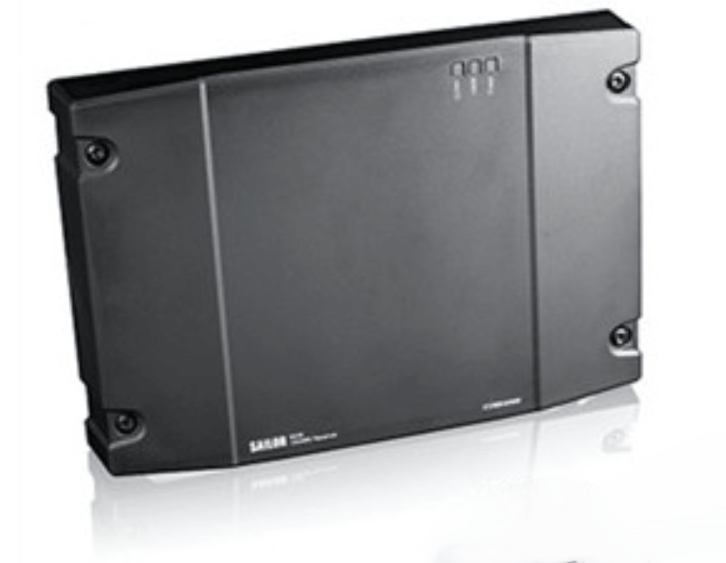

The black box SAILOR 6588 GNSS/DGNSS Receiver is the brain behind the system.

The receiver has connections for antenna, power, position and speed log output, LAN connections for SAILOR Control Panel and on board LAN.

Build your Multi-Function Universe

The SAILOR 6570 DGNSS System and SAILOR 6571 DGNSS Basic are true SAILOR products.

They are 100% designed in-house at Cobham SATCOM, with two versions that provide flexibility for starting or growing your Multi-Function Universe on board.

Both versions come with the SAILOR 6588 GNSS-DGNSS Receiver.

The SAILOR 6570 DGNSS System is delivered with the SAILOR 6004 Control Panel and the SAILOR 6286 DGNSS Antenna, while the SAILOR DGNSS 6571 Basic is delivered with the antenna only.

The advanced touch-screen SAILOR 6004 Control Panel forms the heart of the Multi-Function Universe, providing full control for all products connected to it from a single device.

Operation of all systems connected to the SAILOR 6004 Control Panel is easy; just select the icon for the product on screen as you would an app on any modern device, to be given full control of all set-up, functions and diagnostics.

Reliability for critical operations

The SAILOR 6570 DGNSS System and SAILOR 6571 DGNSS Basic collect satellite data from any available navigation satellites including GPS and GLONASS.

Using position corrections from reference beacons, position accuracy down to 1 meter is possible for a variety of on board systems such as; ECDIS (Electronic Chart Display System), INS (Integrated Navigation System), GMDSS (Global Maritime Distress & Safety System), SATCOM (Satellite Communication System), MCS (Master Clock Systems) and PABX (Telephone Exchanges).

SPECIFICATIONS – Sailor 6288 GNSS/DGNSS Receiver

• GNSS receiver: 30 channel GPS, GLONASS and SBAS receiver
• Position-Fix time: cold start < 45 s
• PPS accuracy: ±15 ns
• Weight: 1.3 kg
• Dimensions: (L x W x H) 190 x 270 x 24.5 mm
• Equipment class Protected, according to IEC 60945
• Input voltage: 10.8 VDC to 31.2 VDC
• Power consumption: 5 W (0.2 A @24 VDC input voltage)
• Heat dissipation: < 10 W Operating temperature-15 °C to +55 °C (Operational)
• Storage temperature: -30 °C to +70 °C (Storage)
• Compass Safe Distance: 30 cm (standard magnetic compass) 20 cm (Emergency magnetic compass)
• Beacon receivers: 283.5 – 325 kHz MSK three parallel receivers
• Connector for GNSS or DGNSS antenna: TNC female
• Connection to Control Panel: LAN
