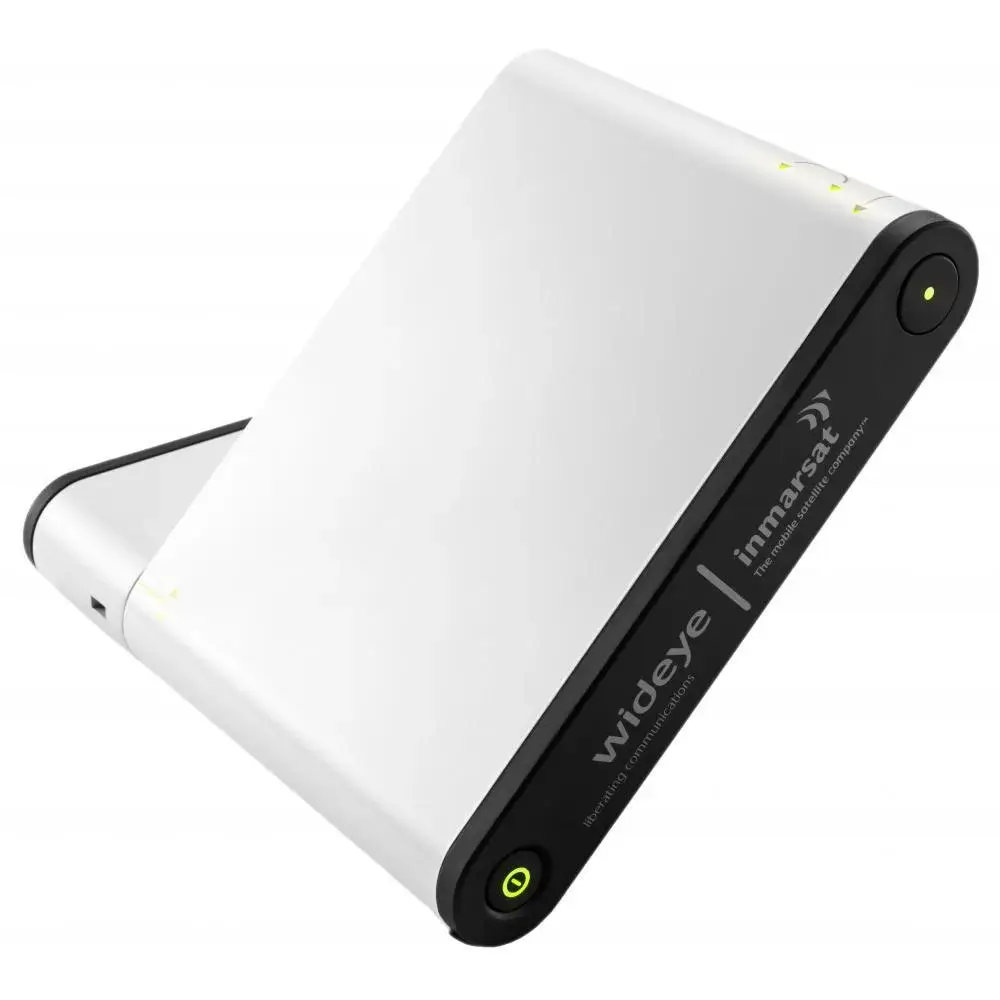

SAVI-9TE00-01 AddValue iSavi SH100 iSatHub Terminal, Portable Wireless Access Device
$2,473.90 Inc. GST
SAVI-9TE00-01 AddValue iSavi SH100 iSatHub Terminal, Portable Wireless Access Device
The simple and compact iSavi terminal from AddValue brings personal connectivity to your smart devices – no matter where you go.
The iSavi terminal connects to the Inmarsat IsatHub service, while creating its own WiFi network.
Simply connect your smart phone or tablet to the iSavi WiFi and bring the power of the Inmarsat I-4 satellite network to your smart devices.
The iSavi terminal connects to the Inmarsat IsatHub Satellite network service.
- Remote Connectivity: Ultra-portable voice and data transmissions
- Crew Welfare: Connect anywhere, with satellite internet
- Continuity of Operations: Always-available, create Wi-fi Hotspot
- Safety: Always available & connected
IsatHub terminal
- Smart Device Connection via WiFi
- Ingress Protection: IP65
- Battery:- Removable with built-in charging circuit- 5 hours usage time, -72 hours standby time
- Can also be used to charge personal smart phones
- Pointing: elevation and azimuth LEDs plus audible tone Coverage I
- The first terminal to access the Inmarsat IsatHub service is Addvalue’s Wideye iSavi
IsatHub : Smart Connectivity Anywhere
- IsatHub operates over the Inmarsat-4 (I-4) satellite and ground network, which operates globally, except for extreme polar regions, at an average availability of 99.9 per cent
- The service is accessed via a control and voice app downloaded onto a smart phone or tablet
- These apps connect to the I-4 network via a satellite terminal that has been type approved to work over Inmarsat’s network
- The Wideye iSavi terminal from manufacturing partner AddValue, is the first terminal to access the IsatHub service
- Wideye iSavi is lightweight, highly portable and is quick and easy to set up with no technical expertise or training needed, enabling you to establish an online connection with IsatHub within minutes
- The terminal has a 30 meter WiFi range and multiple devices can share the same connection
- Power consumption is low and the battery can be recharged by AC, DC or solar power
- Weighs 850g
- 179 x 170 x 30 mm
- IsatHub services supported
- Standard IP (up to 384 / 240 Kbps)
- Circuit switched voice
- Text
- Battery: 2.5hr operating
- Wi-Fi range of 30 metres / 100 feet
- Built in SIP server
- Mains charger
- USB port for firmware updates only
- LED arrows for pointing assistance
| IsatHub iSavi General Specifications | ||
| Internet Speed | Standard TCP-IP 384 Kbps down, 240 Kbps up | |
| Frequencies | Satellite Transmit: 1626.5 – 1660.5 MHz and 1668 – 1675 MHz Satellite Receive: 1518 – 1559 MHz GPS Frequency: 1574.42 – 1576.42 MHz |
|
| Satellite Phone App | Calling via Smartphone App – Standard Circuit Switched PSTN Call (not VoIP). IsatHub is issued international satellite phone number with (870) country code. Available free from iTunes and Google Play app stores |
|
| Web Interface | Type in 192.168.1.35 or the word “iSavi” into any connected browser to access iSavi web interface. | |
| Control App | Available free from Apple App Store and Google Play Store | |
| Voice App | Available free from Apple App Store and Google Play Store | |
|
Transmit/Calling Time
|
2.5 hours using the standard battery (at full transmit power) | |
|
Standby Time
|
24 hours idle standby time – using the standard battery | |
| Wi-Fi | 802.11 b/g/n with up to 30 meters range (100 feet). Default is 802.11b …May be changed from iSavi Web Interface. | |
|
AC Power
|
100 – 240 VAC, 50-60Hz; (comes with international AC adapter kit) | |
|
DC Power (vehicle adapter)
|
TBA | |
|
Battery
|
Standard Battery is Li-Ion rechargeable with a capacity of 3 Amp Hours. Optional High Capacity 6Ah Battery will be available |
|
|
Dimensions L x W x D
|
7.09″ x 6.7″ x 1.18″ inches (180 x 170 x 30 mm) | |
|
Operating Temperature
|
-20 °C to +55 °C, -4°F to +131°F. Terminal has temperature warning if overheating. | |
| Storage Temperature (before battery depleted) |
1 month: Over 104° F (+40°C) 6 months: Over +95°F (+35°C) 1 year: Between -20 °C to +35 °C, -4°F to +95°F |
|
| Terminal Weight | 1.98lbs (900g) Total – Transceiver = 1.41lbs (640g) and Battery Pack is .57lbs (260g) | |
| Humidity | 95% RH (non-condensing at +40 °C or +104°F) | |
| Ingress Protection | IP65 Compliant | |
| Power Adapter | 110/230 volts AC, o/p +18V, 65 watt | |
|
Weight
|
1.9 lbs (850g) | |
| GPS | Yes | |
| iSavi iSatHub Supported Languages |
English, French, Spanish, Portuguese, Chinese, Japanese, Russian, Arabic (QuickStart Booklet is written with all 8 languages… Apps may choose from the above languages) |
|
| Interface – Device Ports | Power Port USB Mini Port – For use for Firmware Updating only |
|
| Security | Wi-Fi Password Control – MAC Address Filtering Firewall pre-set selections – Configured from Web User Interface |
|
| Voice Connectivity | SIP server using Apps on Smart Devices | |
| Manufacturer | The Inmarsat IsatHub uses the Wideye iSavi manufactured by Addvalue, currently the only terminal licensed for the IsatHub network. | |
| Control App Operating System Requirements |
iOS 6 or higher (on an iPhone 4 or iPad 3 or higher) Android 4.1 or higher. | |
| Compliance | FCC, CE, Industry Canada (IC), RoHS2 Compliance, WEEE, CMPCS MOU-ITU Registry, Inmarsat Type Approval, UL/IEC, UN, CE (battery pack safety). | |
Inmarsat Coverage Map
