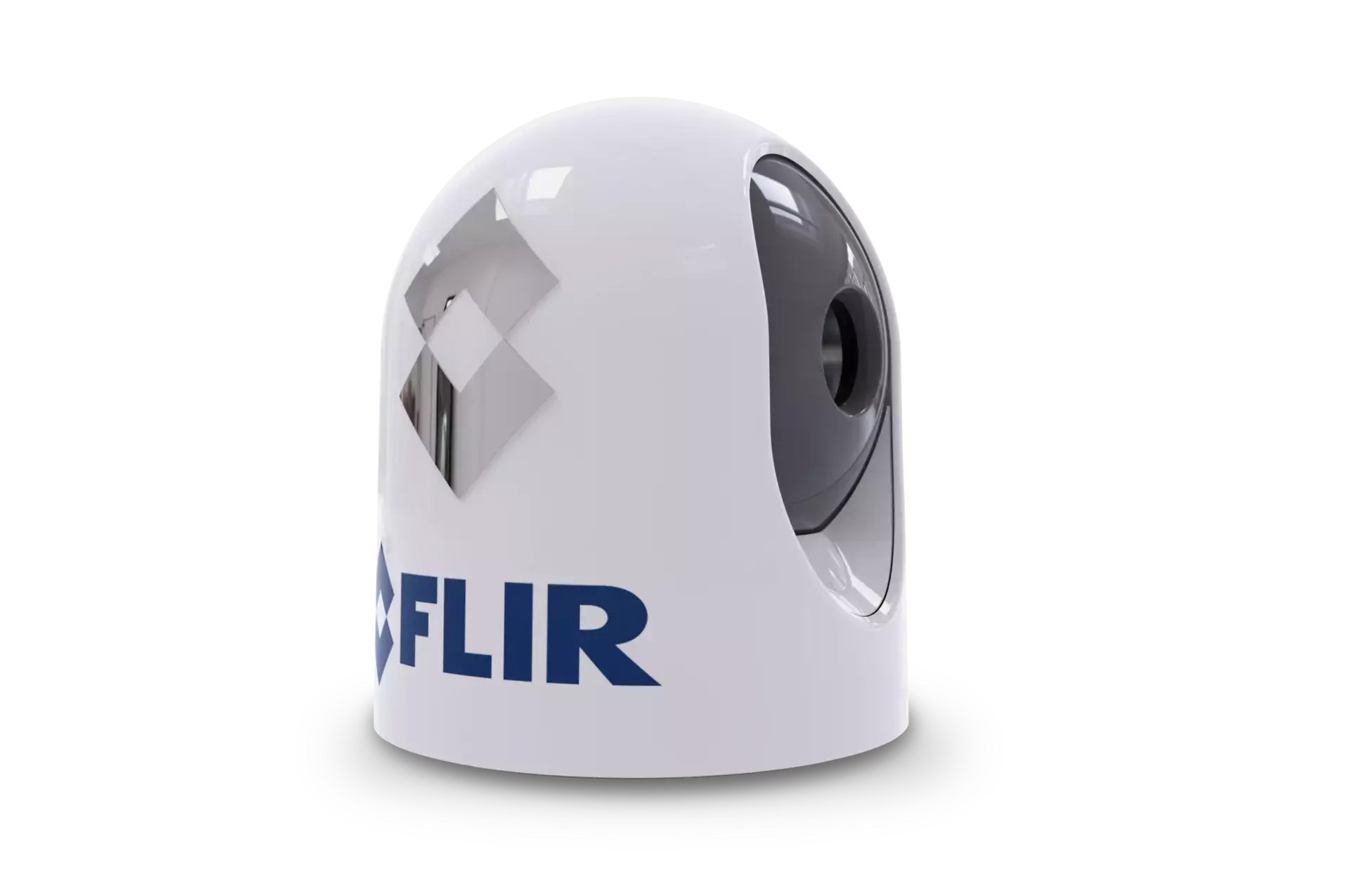

432-0010-03-00 Flir MD-625 Thermal Camera System, Fixed View, High Resolution, 30Hz
$11,866.80 Inc. GST
432-0010-03-00 Flir MD-625 Thermal Camera System, Fixed View, High Resolution, 30Hz
Compact fixed view marine thermal cameras in standard(MD-324 series) and high resolution(MD-625 series)
Compact, Fixed View Marine Thermal Cameras
The FLIR MD Series are fixed-view thermal night vision cameras designed to help boaters steer around obstacles and improve overall situational awareness at night and in low light conditions. The compact MD Series cameras are simple to mount and easy to integrate into your existing chartplotter displays. MD-Series thermal cameras output standard analog video and feature an Ethernet port for joystick or chartplotter control of the camera settings and on-screen control menu.
- Compact Size – The MD Series camera’s small footprint makes it easy to install. Only 5.2 cm (6 in) diameter and 17.8 cm (7 in) tall.
- Fixed View – MD Series cameras feature a stationary thermal sensor for detecting obstacles and collision avoidance.
- Standard Resolution – Choose the standard resolution MD324 or the high resolution MD625 for longer range.
MD-625(30Hz) – What’s in the Box?
- Thermal Camera(High Resolution, 30Hz version).
- O-ring for base (Part Number AS568-251)
- 7.7 meter (25-foot) double-shielded low smoke zero halogen (LSZH) Ethernet cable
- 7.7 meter (25-foot) coaxial cable for video output
- FLIR PoE injector (Part Number 4113746)
- RJ45 weatherproof coupler (Part Number 4115028) and various other video adapters
- Female-to-female F-type video connectors (Part Number 4115330)
- Mounting hardware kit that includes six M6 x 60 stainless steel-threaded studs with washers, nyloc nuts, and acorn nuts, for attaching the MD-Series camera body
- Zip ties for use during installation
- Documentation pack
MD Series Features and Benefits
- Thermal night vision makes navigating at night easier and safer
- Rugged waterproof enclosure is easy to install
- Analog video output for simple integration with marine monitors and compatible chartplotters
- Ethernet port for joystick and chartplotter integration.
Optional Accessories Available to Purchase, but NOT included in this Pack:
If an optional JCU was purchased with the camera, it includes:
- JCU (Part Number 500-0385-00)
- A second FLIR PoE injector (Part Number 4113746)
- 300mm(1.0ft) Ethernet cable
- 1.5m(5.0ft) Ethernet cable
- Clamshell ferrite (Part Number 4134175)
System Overview
MD-Series is a maritime thermal imaging system for use on most types of vessels.
The system has a single thermal imaging camera and is available in two models:
- Model MD-324 has a standard resolution camera that supports 2X zoom.
- Model MD-625 has a higher resolution camera that supports either 2X or 4X zoom.
Details for each model are listed in “Feature Comparison of MD-Series Models” on page 38 of the user manual.
The infrared (IR) thermal camera provides night-time imagery, even in total darkness, based on temperature differences. It provides a clear video image even under completely dark conditions because it is sensitive to thermal infrared energy.
The MD-Series consists of a fixed dome assembly, also known as the camera unit. The camera supplies an analog video output through a standard F-type connection and receives power from its Power over Ethernet (PoE) interface.
The MD-Series dome camera is an IP network device. In some installations, additional cameras, joystick control units (JCU), video equipment, personal computers, or wireless devices can optionally be used, and networking equipment such as switches and routers can be used to interconnect these components.
The MD-Series camera provides an analog video output, which can be connected to a video monitor, a multi-function display, or a 3rd-party IP video encoder.
The camera does not provide IP video streaming natively, but the video stream from certain 3rd-party encoders can be integrated with the camera, and viewed through the camera’s web interface, the FLIR Mobile app, or with FLIR Sensors Manager (FSM) software.
Refer to the MD-Series Operator’s Manual for details on configuring the camera.
Flir MD series – SPECIFICATIONS
Physical Characteristics Camera Size 5.2 cm (6 in) diameter, 17.8 cm (7 in) tall Camera Weight Under 1.4 kg (3 lb), depending on the camera model Joystick Size 9.1 X 14.2 X 8.13 cm (3.6 X 5.6 X 3.2 in) 3.17 cm (1.25 in) above platform including joystick Joystick Weight .45 kg (1 lb) Power Camera Input Power from PoE 12 – 24 V DC nominal, 2 A Max Absolute range 10 – 32V DC (–10%/+30% per IEC 60945) JCU Input Power Power over Ethernet (PoE) per IEEE 802.3af Consumption (camera and FLIR PoE injector) <7.5W Nominal without heater <18 W Nominal with heater Environmental Operating temperature range–25° C to +55° C (–11° F to +131° F) Storage temperature range–40º C to +85º C (–38º F to +185º F) Automatic Window defrost Standard (automatic at unit power-up) Sand/dust Mil-Std-810E Automatic Window de-icing Standard (automatic at unit power-up) Water Ingress IPX 6 Shock 15 g vertical, 9 g transverse Vibration IEC 60945; MIL-STD-810E Lightening Protection Standard Salt Mist IEC 60945 Wind 100 knot (115.2 mph) EMI IEC
External Standards Table lists other sources of information and standards definitions that may be useful during the installation of the MD-Series camera.
External References Standard ANSI/SCTE 01 2006 “F” Port, Female, Outdoor IEC 60169-24 IEC 60945 IEC 60529 Description http://www.scte.org Radio-frequency coaxial connectors with screw coupling, typically for use in 75 Ohm cable distribution systems (Type F) Maritime navigation and radio communication equipment and systems general requirements Degrees of Protection Provided by Enclosures (IPX6) IEC 60068 89/336/EEC Directive 2002/95/EC Directive 2002/96/EC TIA/EIA T568B IEEE 802.3 / IEEE 802.3u IEEE 802.3af ANSI/SMPTE 170M – 1994 Directive 96/98/EC Basic Environmental Testing Procedures, Part 2: Tests Electromagnetic Compatibility (EMC) directive Restriction of the use of certain hazardous substances in electrical and electronic equipment (European Union) Waste Electrical and Electronic Equipment Reg. 2006 CAT5/RJ-45 wiring standard 10Base-T/100Base-TX Ethernet Power over Ethernet (PoE) standard (48V/400mA/ 15.4W) Composite Analog Video Signal (Supersedes RS-170A) Marine Electronics Directive (MED)
