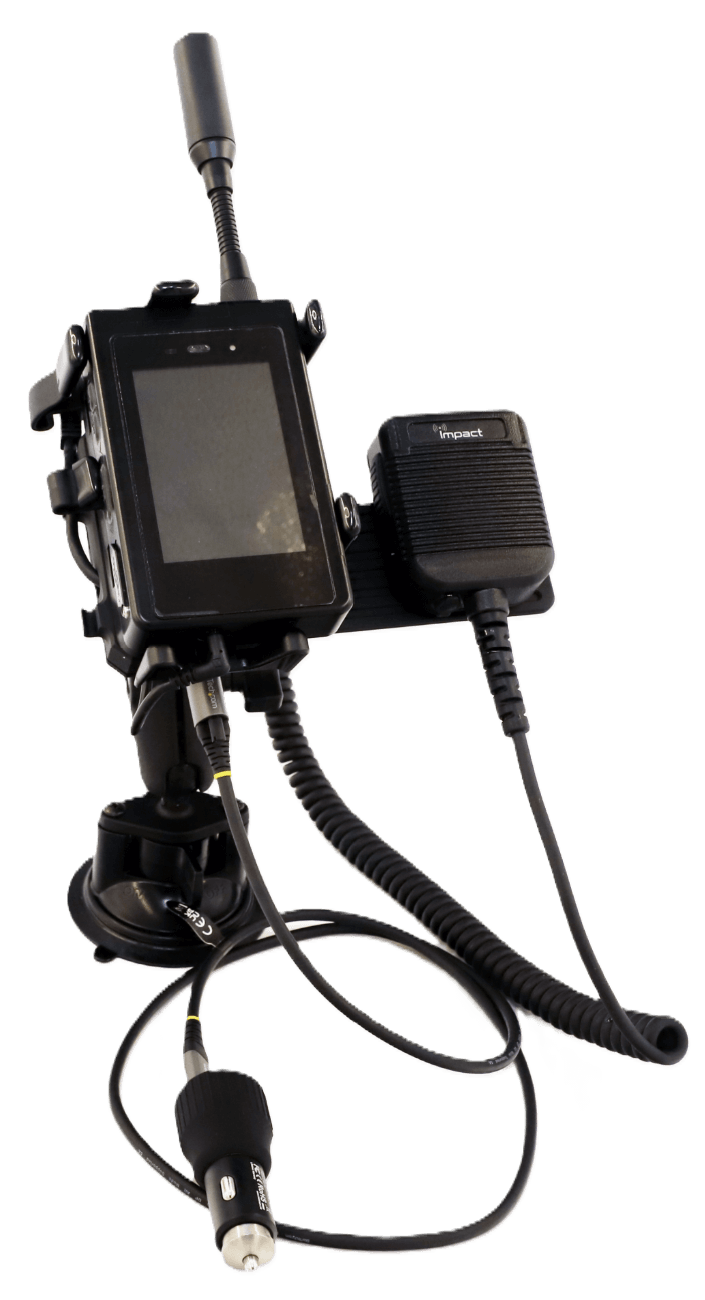

433-22002-001 NAL Iridium Shout-SP VM-01 Vehicle Kit, A-PNT MIL, Suction-Cup-Mount, DC Auto-Charger

433-22002-001 NAL Iridium Shout-SP VM-01 Vehicle Kit, A-PNT MIL, Suction-Cup-Mount, DC Auto-Charger

This accessory is to be used specifically with the *SHOUT-SP, a SATCOM device developed and manufactured by NAL Research with push-to-talk (PTT), voice, & SMS features and an Android Operating System (OS).

The Push-to-Talk (PTT) Vehicle Mount securely holds the SHOUT sp in stationary or moving vehicles while leaving the entire screen and control buttons accessible. It enables charging from vehicular power and provides remote PTT capability through a handheld speaker-microphone.

The handheld speaker-microphone amplifies PTT audio for use in noisy environments.

VM-01 In this Pack(Suction Cup Type Mount w/ Car Charger Adapter):

• SHOUT-SP Mobile Vehicle Cradle
• PTT Speaker-Microphone Unit, IP67, with Heavy Duty Cord, 2.5m
• Audio Amplifier Module
• DC Vehicle Car/Auto Charging Adapter, over-voltage protection, up to 55W
• DC-DC Power Cable, USB-C, 1.0m(3.3ft)
• Cradle/Device Holder with “Diamond Mount” and Finger-Grip Bracket,
• Hand Speaker/Microphone Mounting Bracket
• Suction Cup Mount, with “Diamond Mount”
• Double Ball Articulating/Swivel Arm
• Document pack
• *NOTE: SHOUT-SP device is available, but is NOT included in this pack – please order separately.

Key Features

ALTM GEN2 Embeddable PNT Module  SAF9701 Antenna SHOUT sp Vehicle Mounting Kit

• SHOUT-SP cradle

• Suction cup or bolt-down mount for temporary or permanent installations

• PTT Handheld Speaker-Microphone: 85dB Maximum Sound Power Level (SWL) @ 1KHz

• High-Low PTT speaker volume control

• Alternator noise suppressor and spike protections

• On-the-move SHOUT sp USB-C vehicle charging adapter

• Maximum charger output: 5VDC/2A

• Input Voltage: 12 or 24 VDC

• Operating Temperature: -20°C to +60°C

SHOUT-SP MOUNTING KIT – ORDERING GUIDE

433-22002-001 SHOUT-SP VM-01 Vehicle Mounting Kit, Mobile Vehicle, Suction Cup Mount, Auto DC-DC Charger

433-22002-003 SHOUT-SP VM-02 Vehicle Mounting Kit, Mobile Vehicle, Fixed Bolt Mount, Auto DC-DC Charger

433-22002-002 SHOUT-SP DS-01 DOCKING STATION Kit, Mobile Vehicle, Suction Cup Mount, Auto DC-DC Charger

433-22002-004 SHOUT-SP DS-02 DOCKING STATION Kit, Mobile Vehicle, Fixed Bolt Mount, AC-DC Wall Mains Charger

INFO / REFERENCE GUIDE > SHOUT-SP DEVICE *********************************

451-93281-001 NAL Iridium Shout-SP, Android-Based Smart-Phone Tracker with Voice, PTT

The SHOUT-SP is an Iridium smartphone that combines Iridium tracking/messaging with an Android-powered Iridium smartphone.

This Device comprises a Touchscreen, a Power button, a Status LED, a guarded Emergency button, and a USB-C port.

Overview

• It supports Iridium’s short burst data (SBD), SMS, voice calls, push-to-talk (PTT), and data/voice hotspot capability.
• The Touchscreen is a capacitive touchscreen, and detects touch by fingers only. It does not detect input by a gloved
• A revolutionary Iridium Connected device that combines Iridium tracking and messaging of the SHOUT product line with Iridium phone capability using an Android interface.
• Built specifically for the Iridium NEXT network and features Iridium Short Burst Data (SBD), SMS, and voice calls. For customers on Iridium’s commercial gateway, global Push-to-Talk (PTT) is also available.
• Comprised of a touchscreen display, status LED lights, a guarded emergency button, an Iridium antenna, and a USB-C port.
• The touchscreen allows easy access to device features and the USB-C enables charging, firmware updates, and device configuration.
• The LED displays the device status when enabled or may be turned off for more tactical environments.
• The SHOUT-SP is the perfect tool for your mission, especially in remote environments with no cellular coverage when communication is a must and knowing your personnel’s location is critical.

The SHOUT-SP offers a variety of services including:

• Normal Tracking Operations – Programmed to automatically wake up and send a position report at a set interval ranging from once a minute to once every seven days.
• Emergency Tracking Operations – Sends alerts to a designated monitoring center using an Emergency button. The monitoring center and the user may then communicate to define further specifics of the emergency.
• Canned Text Messaging — Allows the user to send canned (predefined) messages stored in device memory. Sending canned messages saves bandwidth (and airtime cost) because only short codes are transmitted to the server instead of the entire message body.
• Waypoint Tracking — Lets the user send and/or save waypoints for later retrieval. A waypoint is a GPS location that a user wants to identify and mark with a specific name tag for future reference.
• Check-In — Allows a quick check-in message to be sent.
• Integrated 5-megapixel Camera with Flash.
• Push-to-Talk – Full push-to-talk capability with a single button on the side of the device using Iridium’s Commercial PTT service.
• Low Power Tracking – Allows tracking with the Android framework powered off to maximize battery life and the number of reports.
• AES-256 Voice Encryption – (FUTURE RELEASE) Encryption of circuit-switched voice calls.

Basic Specifications (refer to the SHOUT-SP Device Feature for full specifications)

IMPORTANT:

The SHOUT-SP is capable of operation on the Iridium DoD EMSS Gateway when it is equipped with a DISA EMSS Iridium SIM card. However, accessing the EMSS Gateway is not authorized until the SHOUT sp is provisioned (signed up for airtime). Unauthorized attempts to access the EMSS Gateway will result in immediate disabling of the offending device, which must then be returned to NAL Research for repair. See the webpage https://emss.pac.disa.mil for more information regarding DoD EMSS SIM cards and service provisioning.
