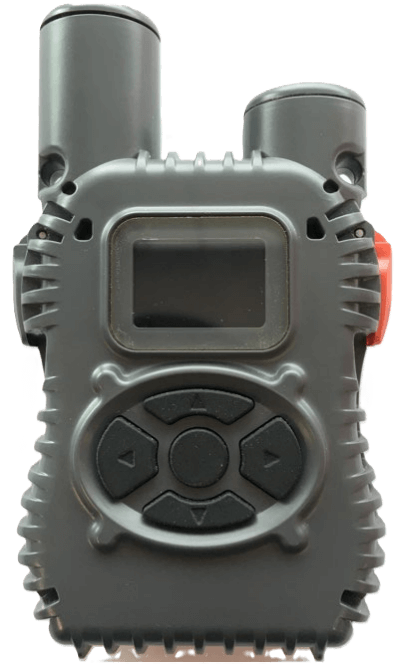

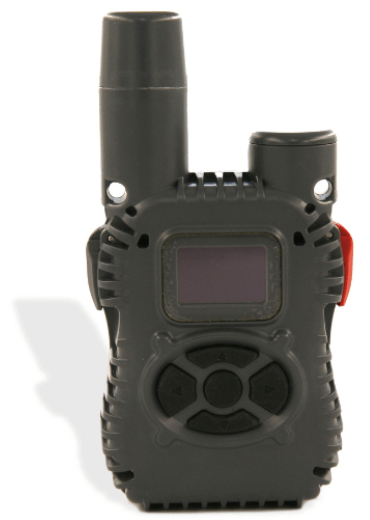

433-22013-001 NAL Iridium SHOUT nano 100, 2-Way Messenger-Tracker, Integrated Antennas, pairs with Android

433-22013-001 NAL Iridium SHOUT-NANO-100, 2-Way Messenger-Tracker, Integrated Antennas, pairs with Android

SHOUT nano 100 by NAL Research is an IP67-rated, two-way messaging and personal tracking device designed with discretion in mind.

Leveraging the reliable Iridium satellite network, this body-worn tracker provides real-time location data, 2-way messaging, and Android or iOS smartphone pairing via Bluetooth®.

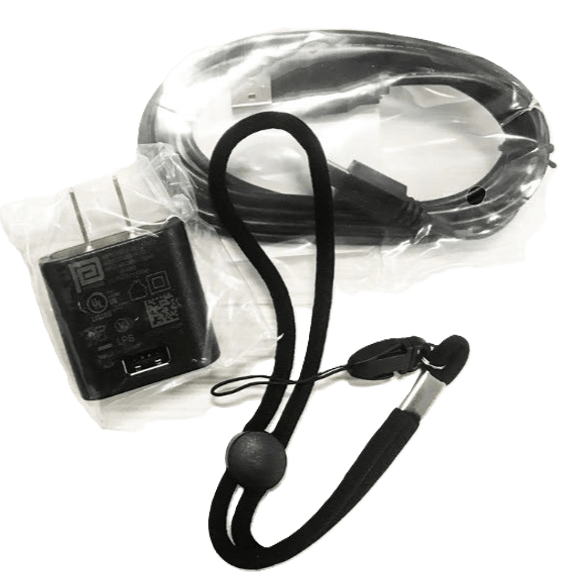

Shout-Nano-100 > In this Pack

• Shout-Nano-100 Unit
• Lanyard

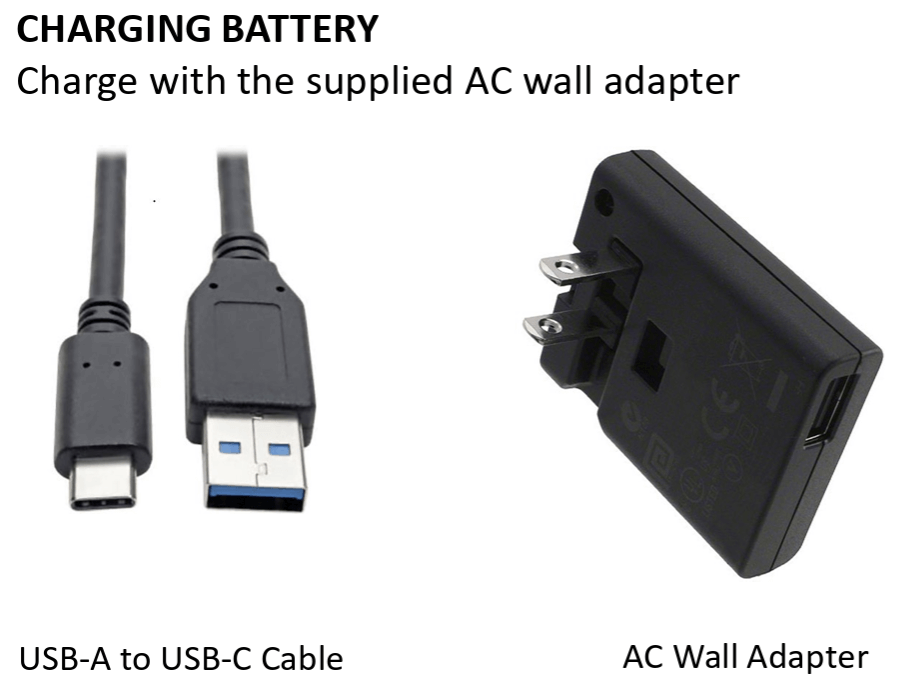

• AC Mains Wall Charger Adapter, with US Wall Outlet plug
• USB-C to USB-A Data/Charging cable, 1.0m(3.3ft)
• Documentation Pack

Key Features:

• Small Size, Low-Profile
•  Low-Cost, Handheld, Body-Worn tracking, and messaging device
• Programmed for either DoD or commercial Iridium Gateways
• Ultra-Low Power Consumption
• Automatic Location Reports (+2,000 reports)
• 911 Alert Capability
• Bluetooth
• Free-text, canned messages or combined free-text and canned messages via smartphone
• Data logging
• Optional 256-bit AES encryption
• Real-time, pole-to-pole coverage
• AC Adapter & USB-C Port
• Integrated Motion Sensor
•  USB Interface
• 72-Channel GPS receiver with -160 dBm sensitivity
• IP67 Rated

Overview

• A color screen displays messages and alerts, enabling SHOUT nano 100 to be used as a standalone device.
• Engineered for both military and commercial use, SHOUT nano 100 uses ultra-low power consumption and is capable of sending a tracking report every 60 seconds.
• Use the emergency alert switch for quick extractions, ensuring asset safety anywhere in the world.
• With ultra-low power consumption and an internal rechargeable battery, the rugged NAL SHOUT nano 100 provides long-lasting connectivity to send free-text and canned messages, interface with backend systems for data logging, and use the emergency alert switch for enhanced asset safety.

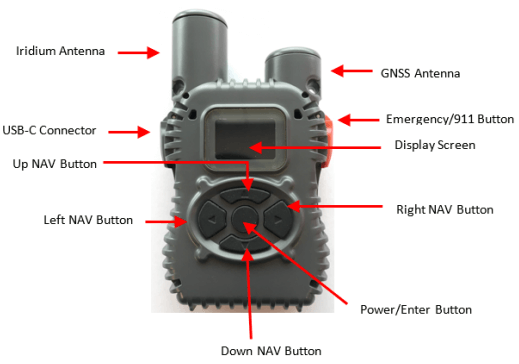

• The SHOUT nano 100 is a handheld or body-worn narrowband SATCOM device with embedded Iridium® and GPS antennas.
• The SHOUT nano 100 can be connected to a smartphone via Bluetooth for two-way messaging, including free text, canned messages, and a combination. It can send a position report every hour for up to 2,000+ reports.
• The device can periodically wake from sleep to send its position report to a command center. A dual-button 911 feature is used to send immediate emergency/alert notifications to that command center or directly to a designated point of contact.
• Data packaged in either standard or 256-bit AES encrypted format, or upon request, data can also be sent in encrypted PECOS formats to include Brevity codes.
• The SHOUT nano 100’s operating parameters are set via Bluetooth using the SHOUT app for smartphones, or by connecting the device via USB-C and downloading SatTerm on your computer.

Compatible Airtime Service:

Iridium SBD(short-Burst-Data)

Shout-Nano-100 Basic Specifications(refer to user manual for full specifications)
