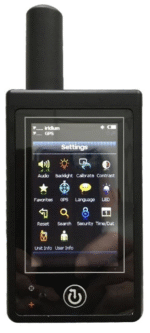

451-92854-002 NAL Iridium Shout-TW, 2-Way Messenger-Tracker, Touchscreen, IP67 Waterproof
$1,645.60 Inc. GST
451-92854-002 NAL Iridium Shout TW, 2way-Messenger, Tracker, Touchscreen, Removeable Antenna Waterproof
DEVICE DESCRIPTION: The SHOUT -TW comprises a touchscreen, a Power/Back button, LED Status Display, Guarded Emergency Button, and a USB Micro-B port, same as the SHOUT-TS but waterproof !!
It utilizes Iridium’s short burst data (SBD) service to provide location information determined by a GPS receiver, two-way inbound and outbound status, text messaging, and emergency/alert notifications.
SHOUT-TW > In this Pack
- Shout-TW Unit
- Lanyard
- AC Mains Wall Charger Adapter, 100-240VAC, with US Wall Outlet plug, and USB-A DC Outlet Port
- USB Micro-B to USB-A Data/Charging cable, 1.0m(3.3ft)
- Documentation Pack
SHOUT TW IP67 RATING
The IP67 rating provides the SHOUT-TW with full protection against dust and other particulates, including a vacuum seal, and tested against continuous airflow.
This protects the SHOUT-TW against full immersion for up to 30 minutes at depths, between 15 cm and 1 meter (limited ingress permitted with no harmful effects).
The SHOUT-TW has a press-on port cover (IP67 rated) to seal the USB micro-B, while the Shout-TS has a standard rubberized cover.
SHOUT-TW Key Features:
- Pocket-size, self-contained satellite tracker (4.2 x 2.4 x 0.9in)
- Feather-Light-weight at only: 7.5oz
- Ultra-low power consumption
- IP67 Rated
- Optional AES 256-bit encryption, both transmit/receive
- Two-way Communications
- Free-Text, Canned-Text, and Check-In Messaging
- Normal and Waypoint Tracking
- Real-time reporting
- True global coverage
The SHOUT-TW/TS is designed with ultra-low power consumption electronics drawing less than 35mA during sleep.
With an internal 1950mAh rechargeable Li-Ion battery, it can send a position report every hour for up to two months (about 1,600 reports).
The SHOUT-TW/TS is equipped with a resistive high-resolution color touchscreen supporting transmission of free-text, canned messages, and a combination of free-text and canned messages. Similar to a “smart” phone, the menu options are displayed as icons for quick access.
The device can periodically wake up from sleep to send its position report to a command center. A 911 button is used for immediate emergency/alert notifications.
Data is packaged in either standard or 256-bit AES encrypted format. Data can also be sent in encrypted PECOS formats to include Brevity codes.
Compatible Airtime Service:
SBD
The SHOUT-TW/TS offers a variety of services including:
- Normal Tracking — programmed to automatically wake up and send a position report at a set interval ranging from once a minute to once a day.
- Emergency Alert — sends alerts to a designated monitoring center using a 911 button. The monitoring center and the user can then communicate to define further specifics of the emergency.
- Free-Text Messaging — sends free-text via four different sets of on-screen keyboards.
- Canned Text Messaging — sends canned messages in short codes to save bandwidth instead of the entire message body.
- Waypoint Tracking — sends and/or saves waypoints for later retrieval.
- Check-In — allows a quick check-in message to be sent using a single soft key.
Specifications(refer to the attached user manual for full specifications)
| Dimensions | 107 x 61 x 23mm (4.2 x 2.4 x 0.9in) |
| Weight | 213 g (7.5 oz) |
| Battery | Rechargeable Li-Ion 195 mAh Single Cell 2.7V to 5.5V |
| I/O Interface: | Standard USB Micro-B |
| Software Interface: | AT Commands through USB |
| Operating Temp: | –20°C to +60°C (–4°F to +140°F) |
| Operating Humidity: | < 75% RH |
| IP Rating: | IP67 |
| Operating Frequency: | 1616.0 to 1626.5 MHz |
| GPS Frequency: | 1575.42 MHz (L1 carrier) |
SHOUT-TW Specifications
| Dimensions | 107 mm x 61 mm x 23 mm (4.2″ x 2.4″ x 0.9″) |
| Weight | 213 g (7.5 oz) |
| Battery | Rechargeable Li-Ion 1.95 A-Hr Single Cell 2.7V to 5.5V |
| I/O Interface: | Standard USB Micro-B |
| Software Interface: | AT Commands through USB |
| Operating Temp: | –20°C to +60°C (–4°F to +140°F) |
| Operating Humidity: | < 75% RH |
| IP Rating: | IP67 |
| Operating Frequency: | 1616.0 to 1626.5 MHz |
| GPS Frequency: | 1575.42 MHz (L1 carrier) |
EXPORT COMPLIANCE
The SHOUT-TW and SHOUT-TS are controlled by the export laws and regulations of the United States of America (USA). It is the policy of NAL Research to fully comply with all U.S. export and economic sanction laws and regulations. The export of NAL Research products, services, hardware, software, and technology must be made only in accordance with the laws, regulations, and licensing requirements of the U.S. Government. NAL Research customers must also comply with these laws and regulations. Failure to comply can result in the imposition of fines and penalties, the loss of export privileges, and termination of your contractual agreements with NAL Research. The export and re-export of NAL Research products and services are subject to regulation by the Export Administration Regulations (15 CFR 730-744), as administered by the U.S. Department of Commerce, Bureau of Industry and Security (“BIS”). See: https://www.bis.doc.gov/index.php/regulations/export-administration-regulations-ear for further information on BIS and the Export Administration Regulations (EAR). Additional export restrictions are administered by the U.S. Department of the Treasury’s Office of Foreign Asset Controls (“OFAC”). See: http://www.ustreas.gov/ofac for further information on OFAC and its requirements.
