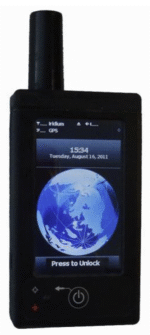

451-92750-001 NAL Iridium Shout-TS, 2-way Messenger-Tracker, Touchscreen
451-92750-001 NAL Iridium Shout-TS, 2-way Messenger-Tracker, Touchscreen, Removeable Antenna
The SHOUT-TS is a pocket-sized, low-cost, handheld satellite tracker and messaging device.

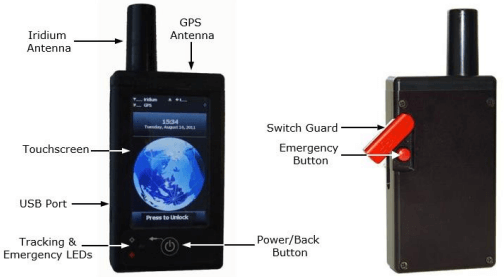

Features a touchscreen, allowing quick access to menus and ease of text entry via on-screen soft keyboards.
SHOUT-TS > In this Pack
- Shout-TS Unit
- Lanyard
- AC Mains Wall Charger Adapter, 100-240VAC, with US Wall Outlet plug, and USB-A DC Outlet Port
- USB Micro-B to USB-A Data/Charging cable, 1.0m(3.3ft)
- Documentation Pack
Similar to the SHOUT nano, the SHOUT-TS is designed with ultra-low power consumption electronics, the SHOUT-TS can send a position report every hour for up to two months (approximately 1,500 reports) via the Iridium® satellite network.
The SHOUT-TS can periodically wake up from sleep mode to send its position report to a command center. A guarded 911 button is used for immediate emergency / alert notifications. Data is packaged in either standard or 256-bit AES encrypted 10-byte, 30-byte or PECOS format.
SHOUT-TS Key Features:
- Pocket-size, self-contained satellite tracker, at size of 4.1 x 2.3 x 0.9in, and weight: 7.2oz
- Removeable antenna, to connect external RF cable with outside Antenna
- Ultra-low power consumption
- Optional AES 256-bit encryption, both transmit/receive
- Two-way Communications
- Free-Text, Canned-Text and Check-In Messaging
- Normal and Waypoint Tracking
- Real-time reporting
- True global coverage
Compatible Airtime Service:
SBD
Low-cost, body-worn tracker and messaging device
Programmed for either DoD or Commercial Iridium Gateway
Ultra-low power consumption
Automatic location reports (>1500 reports)
Guarded 911 alert switch

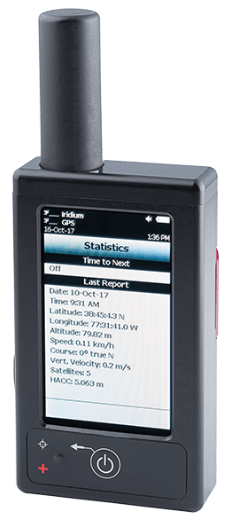

High resolution touchscreen
Free-text, canned messages, or combined free-text and canned messages
Data logging (waypoints and tracking reports)
256-bit AES encryption
Real-time, pole-to-pole coverage
Weighs ~7.2 ounces
Volume of 4.1” x 2.3” x 0.9”
USB interface
Internal rechargeable battery using AC adapter, USB port, or solar charger
Integrated motion sensor
50-channel GPS receiver with -160 dBm sensitivity
Specifications
| Dimensions | 104 mm x 58 mm x 23 mm (4.1″ x 2.3″ x 0.9″) |
| Weight | 204 g (7.2 oz) |
| Battery | Rechargeable Li-Ion 1.95 A-Hr Single Cell 3.6V to 4.2V |
| I/O Interface: | Standard USB Micro B |
| Software Interface: | AT Commands through USB |
| Operating Temp: | –20°C to +60°C (–4°F to +140°F) |
| Operating Humidity: | < 75% RH |
| Operating Frequency: | 1616.0 to 1626.5 MHz |
| GPS Frequency: | 1575.42 MHz (L1 carrier) |
SHOUT-TS Specifications
| Dimensions | 104 mm x 58 mm x 23 mm (4.1″ x 2.3″ x 0.9″) |
| Weight | 204 g (7.2 oz) |
| Battery | Rechargeable Li-Ion 1.95 A-Hr Single Cell 3.6V to 4.2V |
| I/O Interface: | Standard USB Micro B |
| Software Interface: | AT Commands through USB |
| Operating Temp: | –20°C to +60°C (–4°F to +140°F) |
| Operating Humidity: | < 75% RH |
| Operating Frequency: | 1616.0 to 1626.5 MHz |
| GPS Frequency: | 1575.42 MHz (L1 carrier) |
EXPORT COMPLIANCE
The SHOUT-TW and SHOUT-TS are controlled by the export laws and regulations of the United States of America (USA). It is the policy of NAL Research to fully comply with all U.S. export and economic sanction laws and regulations. The export of NAL Research products, services, hardware, software, and technology must be made only in accordance with the laws, regulations, and licensing requirements of the U.S. Government. NAL Research customers must also comply with these laws and regulations. Failure to comply can result in the imposition of fines and penalties, the loss of export privileges, and termination of your contractual agreements with NAL Research. The export and re-export of NAL Research products and services are subject to regulation by the Export Administration Regulations (15 CFR 730-744), as administered by the U.S. Department of Commerce, Bureau of Industry and Security (“BIS”). See: https://www.bis.doc.gov/index.php/regulations/export-administration-regulations-ear for further information on BIS and the Export Administration Regulations (EAR). Additional export restrictions are administered by the U.S. Department of the Treasury’s Office of Foreign Asset Controls (“OFAC”). See: http://www.ustreas.gov/ofac for further information on OFAC and its requirements.
