6019_A-KIT Intellian OneWeb Mount Adapter Kit, includes OW6034 for Pedestal/Pole/Mast )Maritime) (Maritime)

SKU: OW6019_A-KIT

$1,362.90 Inc. GST

OW11FV_Enterprise_Land-Mobility_DataSheet.pdf OW_Enterprise-Series_Installation-and-Operation-User-Guide_2024.pdf Intellian-Enterprise-Flat-OW11Fx-Technical-Specification.pdf MOUNT-OPTIONS_Intellian-OneWeb_Flat-Panel_all-series.pdf OW6034_Maritime-Mount_Adjustable_for-Pipe-60mm-_1.png

6019_A-KIT Intellian OneWeb Mount Adapter Kit, includes OW6034 (Maritime)

Application: Maritime or Land Mounting Solution for fixing to a Mast or Pole for optimized quick and efficient installations.

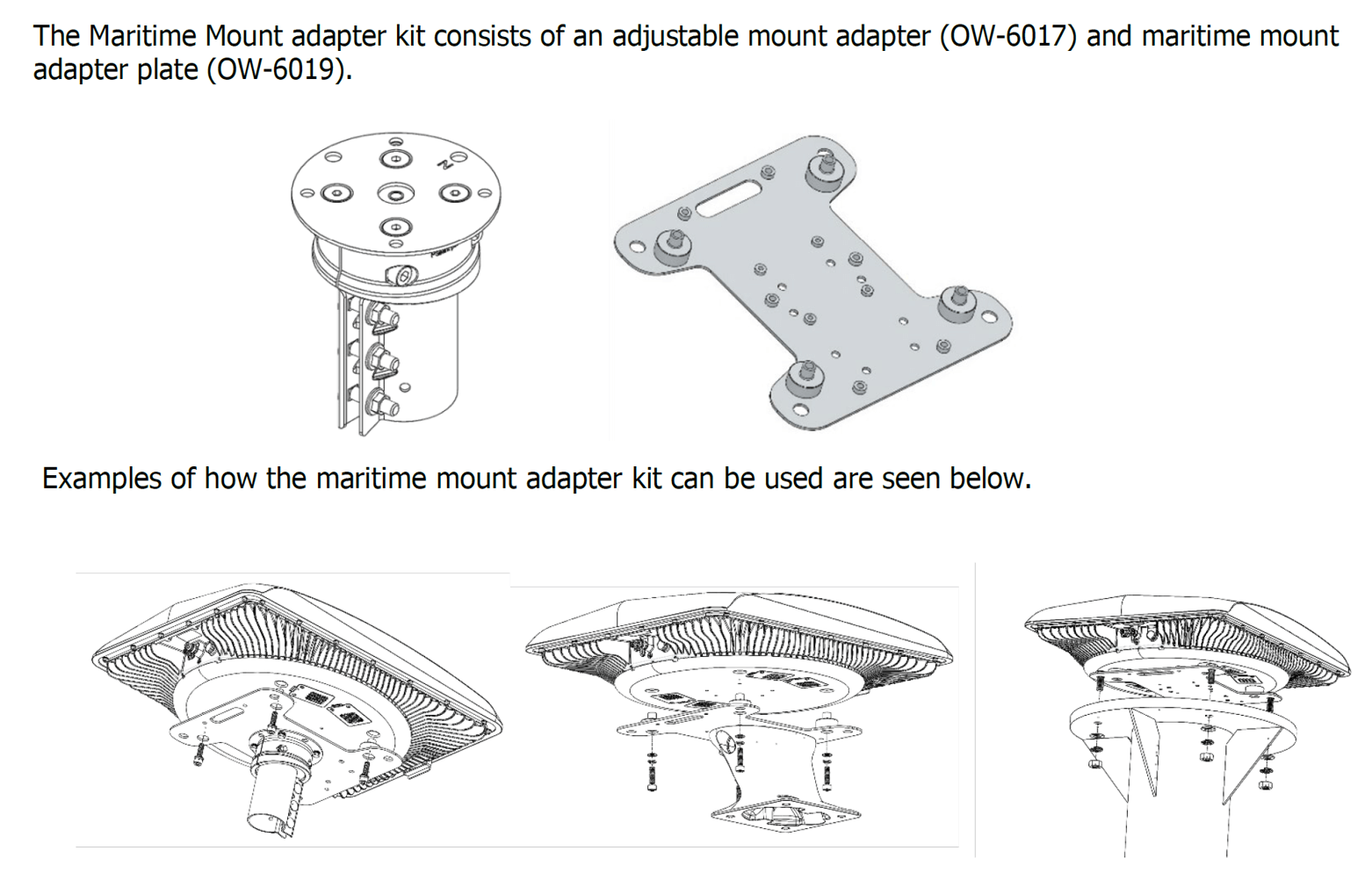

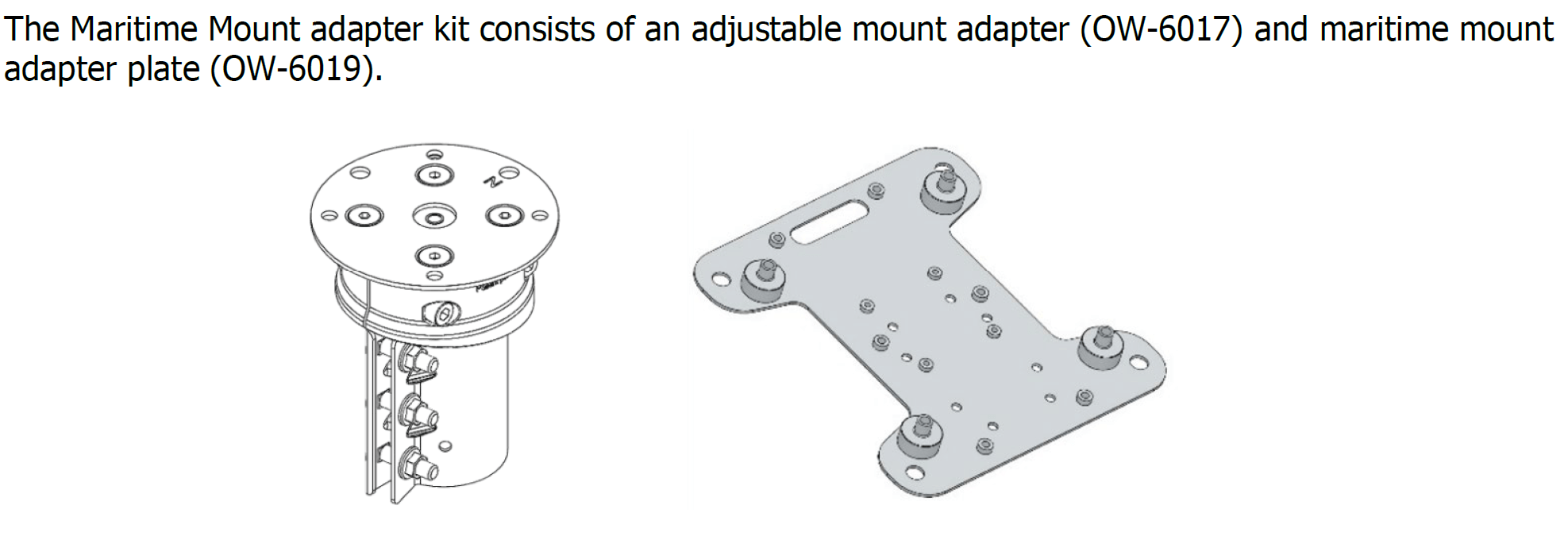

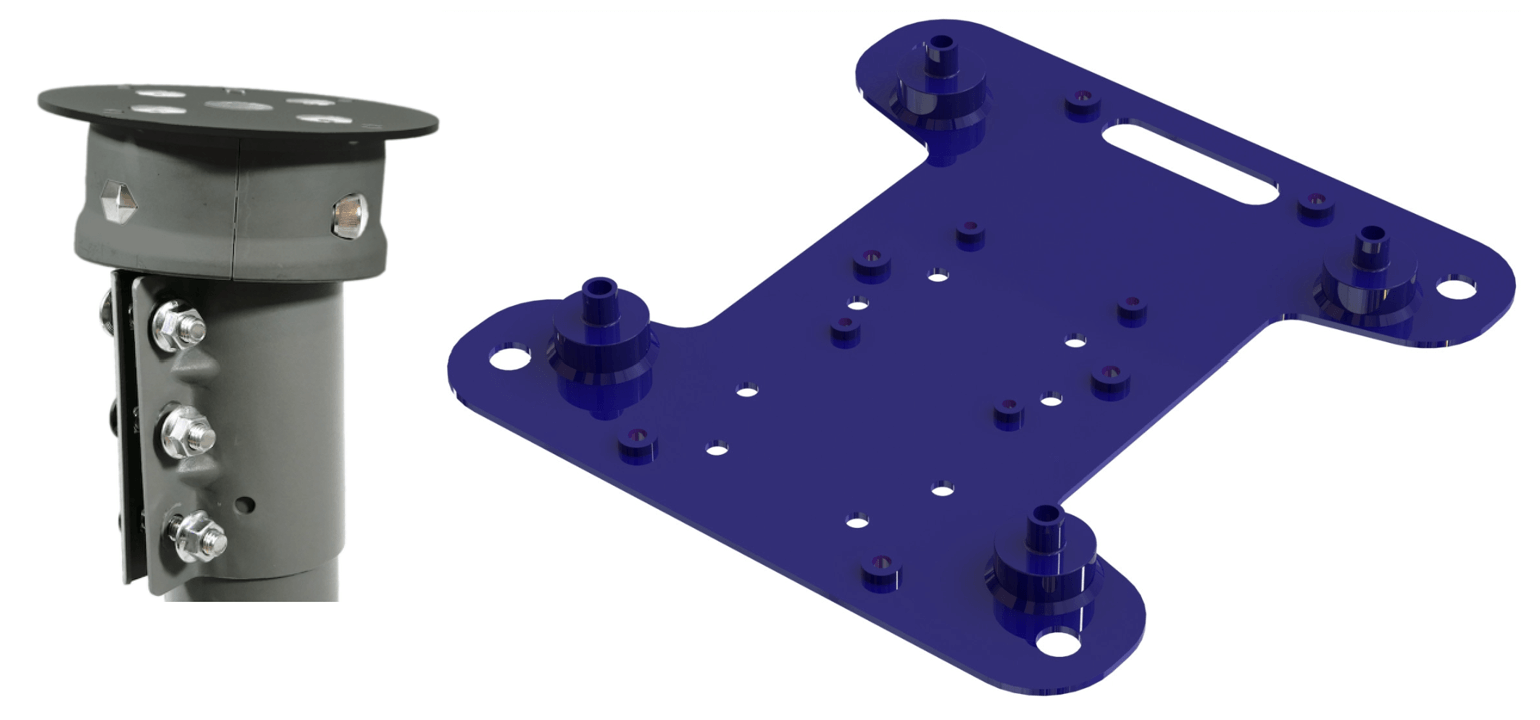

This Maritime Mount adapter kit consists two parts being:

  • part# OW6034 – the Maritime Adjustable Mast/Pipe Mount Adapter Kit
  • part# OW6019_A – the Maritime Mount Adapter Plate Kit

Compatibility:

  • All Intellian OneWeb Compact and Enterprise Flat Panel series Antennas(ODU/ADU)
  • Requires 60mm diameter(outside) Mast/Pole

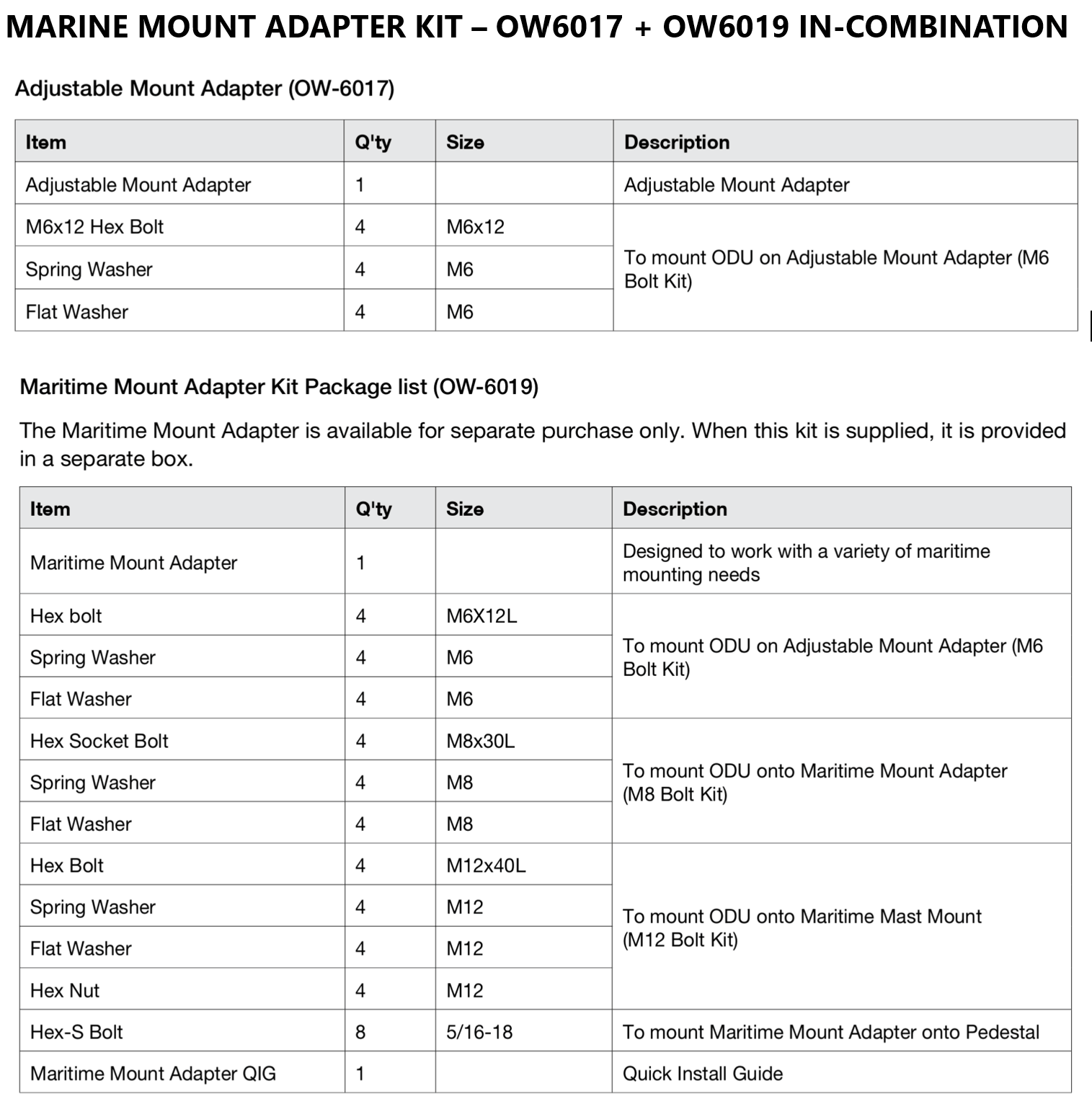

What’s in the Box OW6019_A-KIT

Package 1 of 2 includes – part# OW6034

  • 1pce Adjustable Maritime Mount Adapter (aka Pole Collar Plate-Clamp with integrated Level)
  • 4pcs Hex Bolt# M6 x 12mm (To mount ODU on Adjustable Mount Adapter), 4pcs Spring Washer# M6, 4pcs Flat Washer# M6

Package 2 of 2 includes – part# OW6019_A

  • 1pce Maritime Mount Adapter Plate (Designed to work with a variety of maritime mounting needs)
  • 4pcs Hex Bolt# M6 x 12mm (To mount antenna on Adjustable Mount Adapter), 4pcs Spring Washer# M8, 4pcs Flat Washer# M8
  • 4pcs Hex-S Bolt# M8 x 35mm (To mount antenna onto Maritime Mount Adapter), 4pcs Spring Washer# M6, 4pcs Flat Washer# M6
  • 4pcs Hex Bolt# M12 x 40mm (To mount antenna onto Maritime Mast Mount), 4pcs Spring Washer# M12, 4pcs Flat Washer# M12, 4pcs Hex Nut# M12
  • 8pcs Hex-S Bolt, 5/16-18 (To mount Maritime Mount Adapter onto Pedestal)
  • Maritime Mount Adapter QIG (Installation Manual)

Manufacturers Update Note:

Intellian has developed and tested a new solution to support pole installation for both the Compact and Enterprise Maritime Flat Panel products, OW10HM and OW11FM. The new part number is (OW-6034), which should be utilized instead of (OW-6017) in Maritime environments.

Intellian’s Recommended Maritime Installations

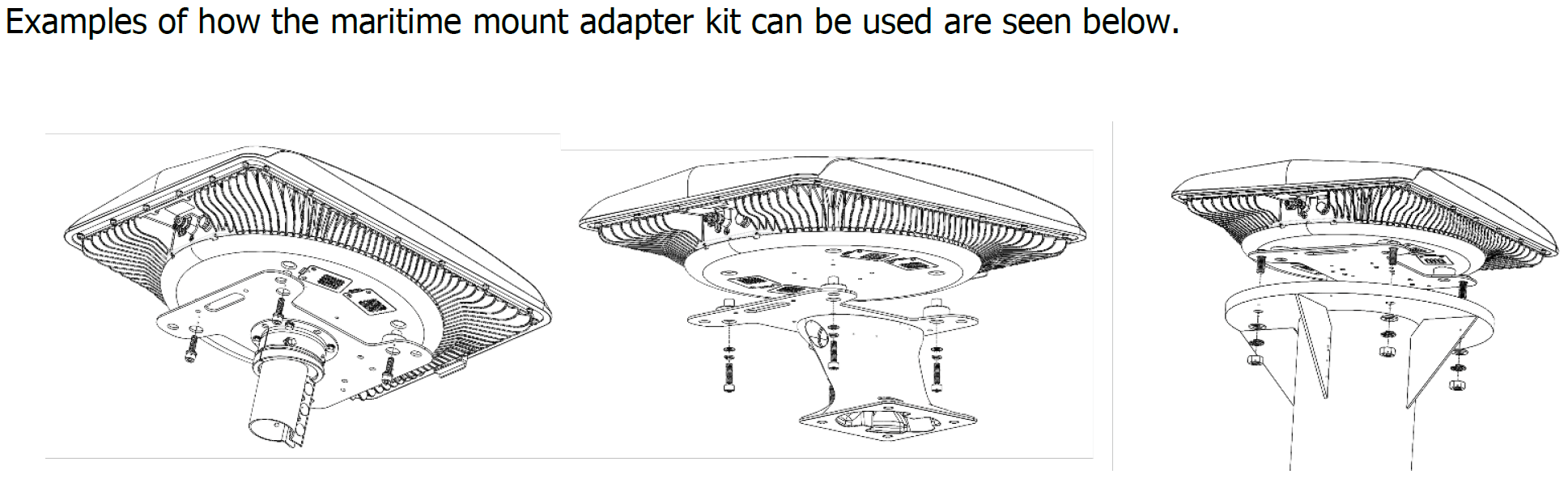

For Maritime applications, Intellian has two offerings to accommodate a mast or pedestal installation using either the Maritime Mount Plate (OW-6019_A) or Maritime Fixed Pole Mount Adapter (OW-6034).  These apply to both the Compact and Enterprise Series Flat Panel products.

Mast and Pedestal Install, Intellian offers the Maritime Mount Plate (OW-6019_A) for mounting the Out  Door Unit (ODU) onto a vessel’s mast or pedestal. It offers different hole pattern options to provide flexibility in accommodating existing holes on the pedestal.

Maritime Pole Mount Install, Intellian also has an offering for maritime pole mount installations. The Maritime Pole Mount Adapter (OW-6034) supports the pole mounting of either the OW10HM or OW11FM.

For more detailed information on the installation guide for both Maritime Adapter Plate (OW-6019_A) and Maritime Fixed Pole Mount Adapter (OW-6034), please refer to the updated User Guide and Quick Installation Guide.
