OW6017 Intellian OneWeb Mount Adapter, Adjustable for 60mm Mast or Pipe (Land)

OW6017 Intellian OneWeb Mount Adapter, Adjustable for 60mm Mast or Pipe (Land)

Application: Land Mounting Solution for fixing to a Mast or Pole for optimized quick and efficient installations.

Compatibility:

• All Intellian OneWeb Compact OW10Hx and Enterprise OW11Fx Flat Panel series Antennas(ODU/ADU)
• part# OW6019 Land Mount Plate, part# OW6012 Tri-Mast, part# OW6011 Quad-Pod, part# OW6014 NPM(Non-Penetrating-Mount)

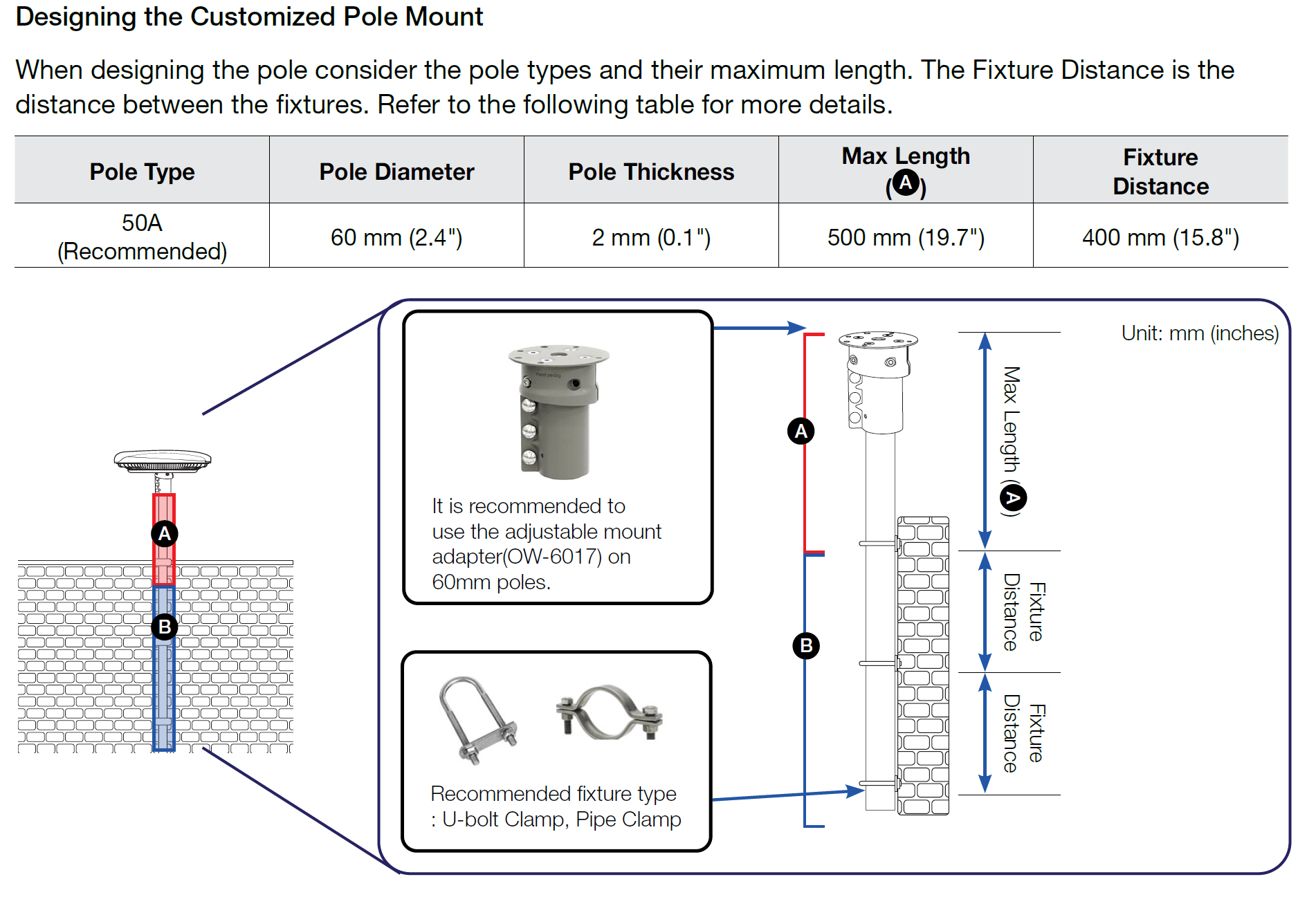

• Requires 60mm diameter(outside) Mast/Pole per above or Custom length 60mm diameter Pole/Mast

Basic Overview

• The Adjustable Mount Adapter, is included as standard supply with all Land Fixed models (OW10HL and OW11FL), and is
• Compatible with: Quadpod, Tri-Mast, and Non-Penetrating Mounts(but not included).

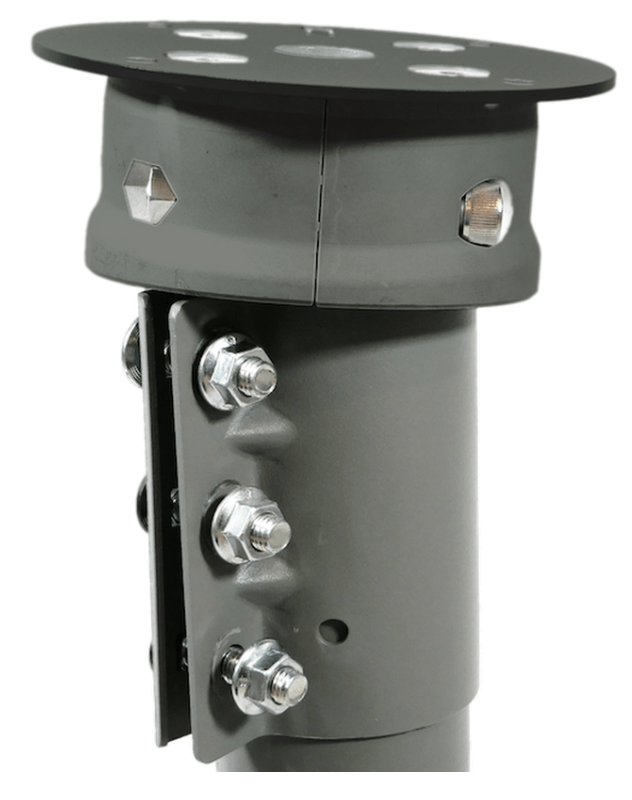

• This mount adapter is compatible with any 60mm diameter pole, offering flexibility, and includes a built-in levelling tool for quick, precise adjustments.
• Mount Options: 60mm Poles / Masts
• Base Fastener: Fasteners

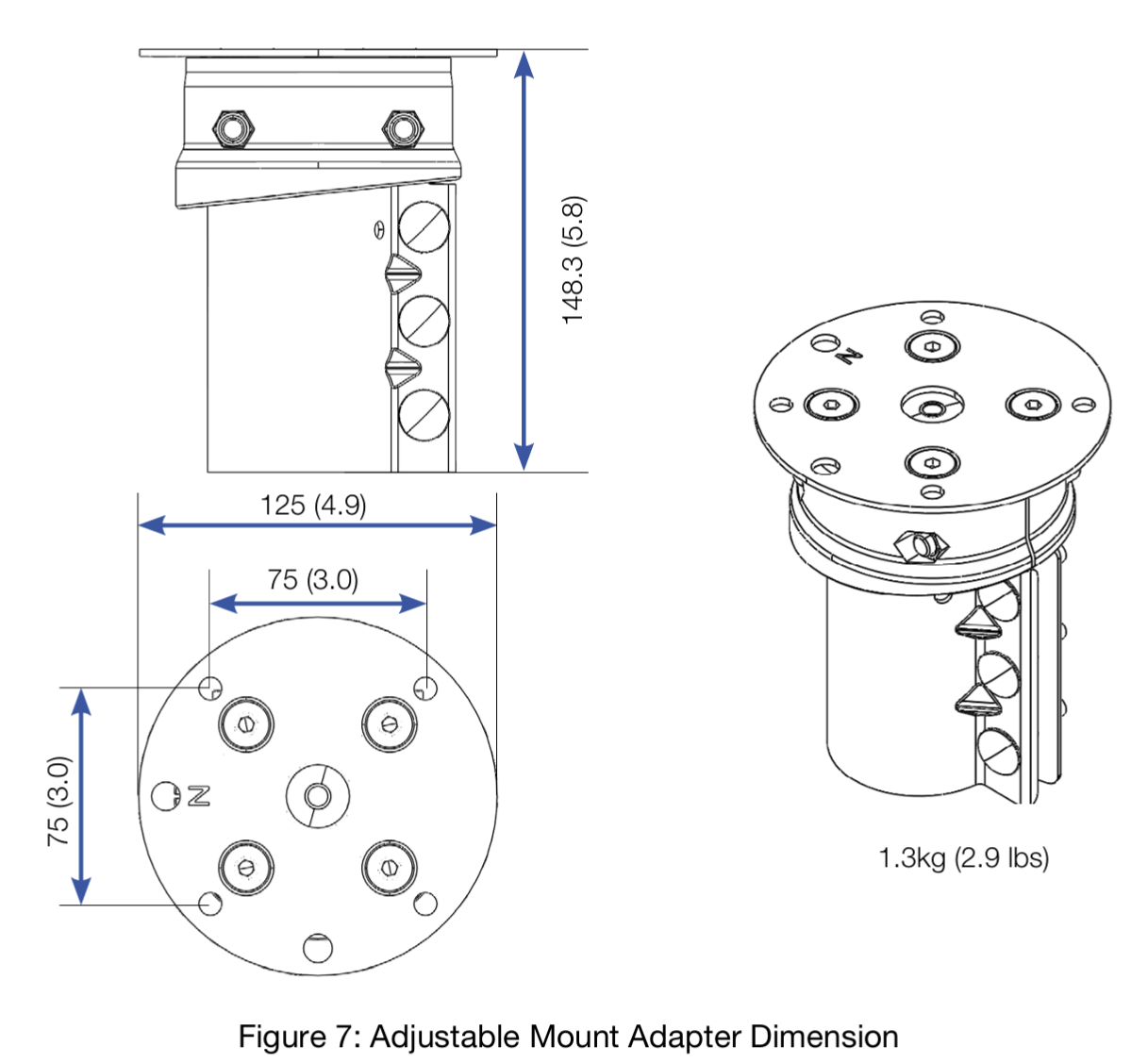

• Dimensions 130 x 130 x 150mm(5.1 x 5.1 x 1.9in)
• Weight 1.5 kg (3 lb)

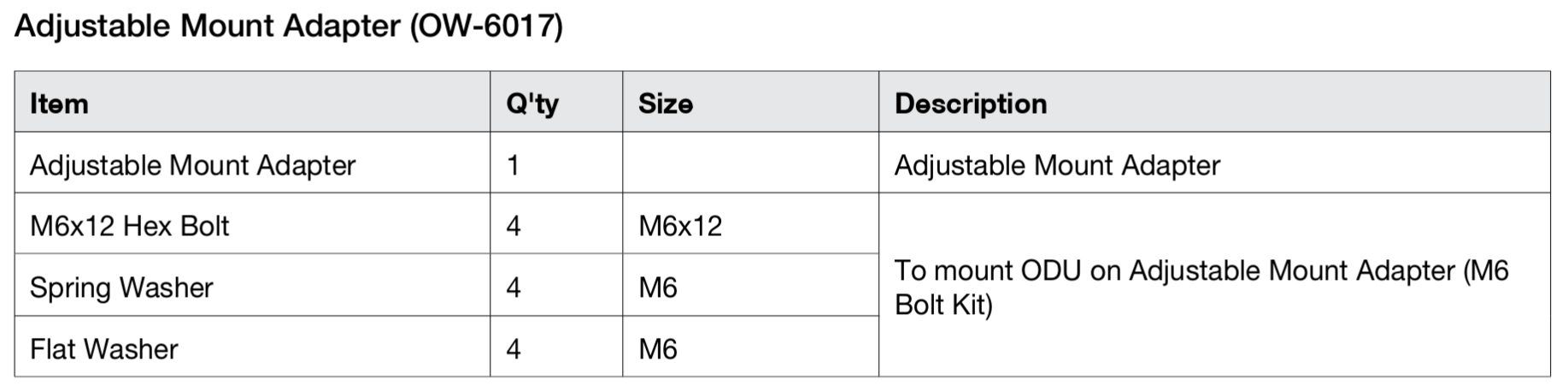

What’s in the Box

• 1pce Adjustable Mount Adapter (Land)

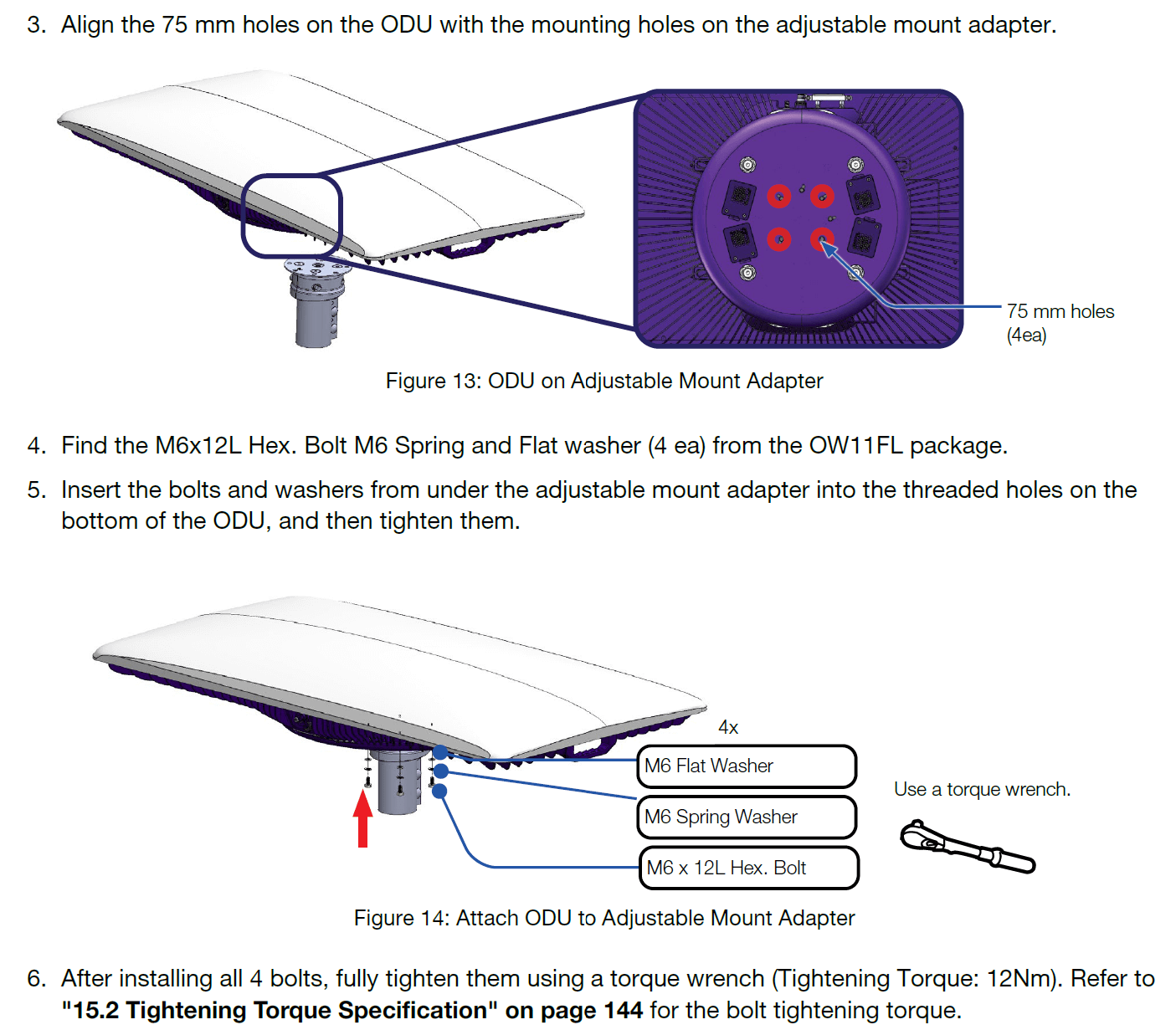

• 4pcs Hex Bolt# M6 x 12mm (To mount ODU on Adjustable Mount Adapter),
• 4pcs Spring Washer# M6,
• 4pcs Flat Washer# M6

Manufacturers Update Note:

Intellian has developed and tested a new solution to support pole installation for both the Compact and Enterprise Maritime Flat Panel products, OW10HM and OW11FM. The new part number is (OW-6034), which should be utilized instead of (OW-6017) in Maritime environments.

Intellian’s Recommended Maritime Installations

For Maritime applications, Intellian has two offerings to accommodate a mast or pedestal installation using either the Maritime Mount Plate (OW-6019_A) or Maritime Fixed Pole Mount Adapter (OW-6034).  These apply to both the Compact and Enterprise Series Flat Panel products.

Mast and Pedestal Install, Intellian offers the Maritime Mount Plate (OW-6019_A) for mounting the Out  Door Unit (ODU) onto a vessel’s mast or pedestal. It offers different hole pattern options to provide flexibility in accommodating existing holes on the pedestal.

Maritime Pole Mount Install, Intellian also has an offering for maritime pole mount installations. The Maritime Pole Mount Adapter (OW-6034) supports the pole mounting of either the OW10HM or OW11FM.

For more detailed information on the installation guide for both Maritime Adapter Plate (OW-6019_A) and Maritime Fixed Pole Mount Adapter (OW-6034), please refer to the updated User Guide and Quick Installation Guide.
