90-102608 Lars Thrane LT-4100 System, Maritime
The LT-4100 system is designed for the professional market (deep sea, fishing, and workboats), but can be used for the leisure markets as well.
$5,266.80 Inc. GST
The LT-4100 Satellite Communications System (Iridium Certus 100) is a maritime satellite communication product from Lars Thrane A/S.
The LT-4100 system is designed for the professional market (deep sea, fishing, and workboats), but can be used for the leisure market as well.
The LT-4100 system meets all standards and certification requirements needed for worldwide maritime satellite communication equipment.
The LT-4100 system has voice and data capabilities with 100% global coverage provided by the Iridium® Network.

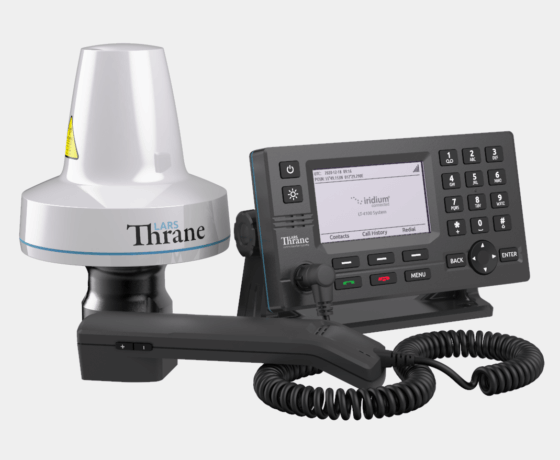

The LT-4100 system consists of a control unit, antenna unit, handset, and cradle.
Key Features:
- LT-4100 Certus® 100 Maritime
- LT-4100L Certus® 100 LandMobile
- Background IP: 22 kbps (up) / 88 kbps (down)

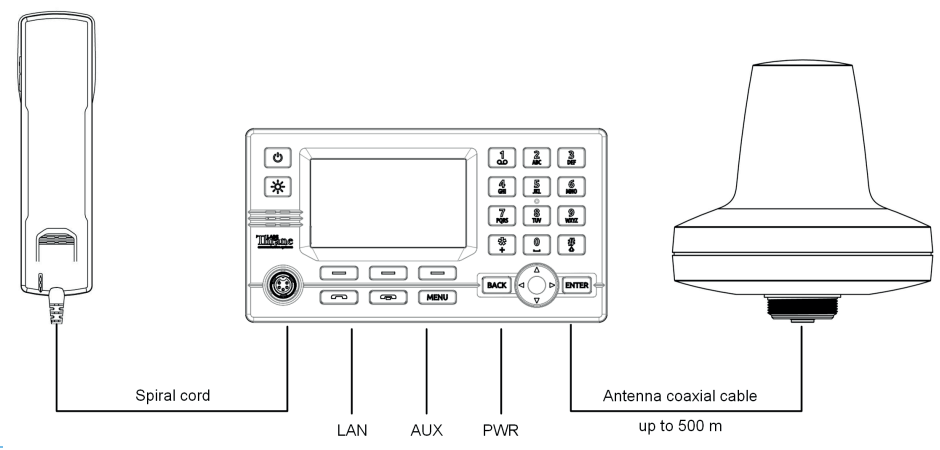

- Single antenna cable solution (up to 500 m)
- Support for external SIP PABX and SIP handsets (up to 8)
- POTS through Analogue Telephone Adaptors (ATA)
- High-performance GNSS/GPS receiver
- Ethernet LAN interface on control unit

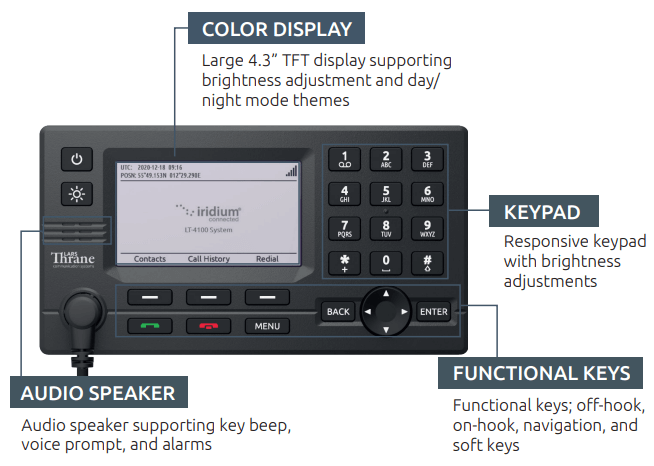

- Large 4.3” TFT display supporting day and night modes
- Firewall and user authentication for high level of security
- Configuration of firewall, port forwarding, and remote access
- Web server for configuration and maintenance
- Sidekick Satellite Wi-Fi Router (OCENS)
- PredictWind Offshore App (SmartPhone or PC)
Specifications:
- LT-4110 Control Unit
- Weight: 658 g (1.45 lbs)
- Dimensions: 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
- LT-3120 Handset Unit
- Weight: 290 g (0.64 lbs)
- Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
- LT-4130/-L Antenna Unit
- Weight: 1.39 kg (3.05 lbs)
- Dimensions: 182.0 x Ø 162.0 mm (7.16 x Ø 6.39 in)
- Temperature, operational: -40°C to +55°C (-40°F to +131°F)
- IP rating, dust and water: IP67
Brand
Lars Thrane
90-102608 LT-4100 Satellite Communications System Including:
- 51-102663 LT-4110 Control Unit
- 51-100988 LT-3120 Handset
- 51-101181 LT-3121 Cradle
- 51-102365 LT-4130 Antenna Unit
- 91-100771 Bracket Mount, Control Unit
- 91-102118 Power Cable, 3m (4-pin)
- 95-102576 User & Installation Manual
- Stainless steel A4 screws for mounting
- User & Installation Manual
- Unit Test Sheets
