MF350BV Thales MissionLink 700, Certus Terminal, (Land)

MF350BM Thales MissionLink 700, Certus Terminal, Land

Thales MissionLINK provides global terrestrial communications coverage, anywhere in the world.

Unaffected by weather or landscape, it is the solution to depend on for essential communications wherever your mission takes you.

Whether you operate as part of a deployed force or a single individual, this solution is designed to meet your unique challenges through a simple, adaptable and robust design.

MissionLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe.

The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for fixed sites and mobile users

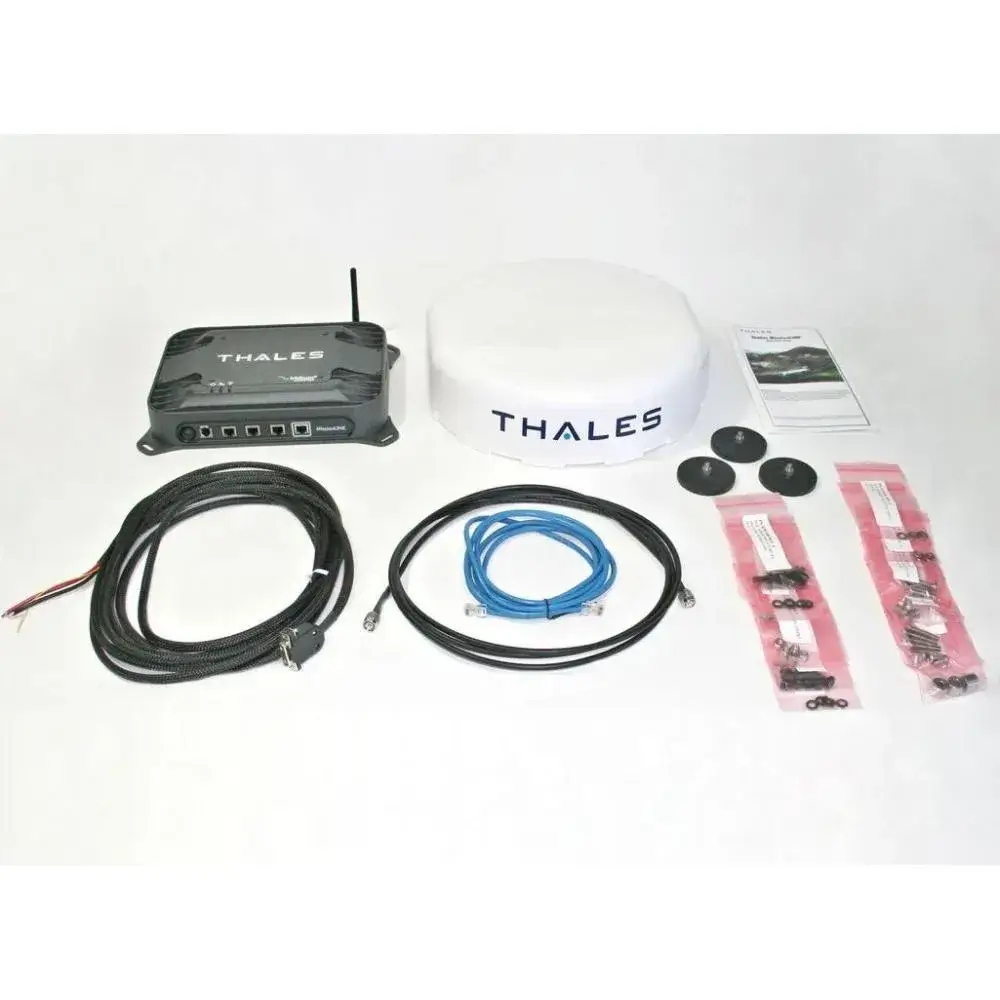

MF350BM – This pack Includes:

• 4102947-512 Terminal Unit, MissionLINK
• 1600899-1 Broadband Active Antenna (BAA), Certus 350
• 1100789-501 Kit, Terminal Unit, Mounting Hardware
• 1100790-501 Kit, Antenna Magnetic Mounts
• 1100792-501 Kit, Antenna Mounting Hardware
• 855021-010 RF Cable, 10 ft LMR240
• 855024-003 Cable, Vehicle DC Power Harness, 3 ft.
• 855026-010 Cable, RJ-45 Ethernet, 10 ft.
• 85728-001 Wi-Fi Antenna, 2.4 GHz Dipole 2 dBi
• 3900011-1 Mounting Template, Terminal Unit
• 3900013-1 Mounting Template, BAA
• 3402174-1 Quick Start Guide (QSG) MissionLINK

Key Features

• Iridium Certus 700 Services (352kbps Up/704kbps Down & 256 kbps Streaming Capable)
• 100% Global Satellite Coverage and Low Latency for Critical Data and Voice Communications
• Satellite to Land Mobile Radio Extendable Network Through a Unique Radio Gateway
• Easily Integrates Terrestrial Cellular with Built-in Preferred Routing Switch
• Supports Up to (3) Concurrent Wi-Fi Devices

Terminal Specifications

• Height: 2.3 inches (5.8 cm) Width: 12 inches (30.5 cm) Depth: 9 inches (22.9 cm)
• Weight: 7.5 pounds (3.4 kg)
• Power Options Option 1: 10–32 VDC Option 2: AC/DC supply with 12 VDC (65 watt nominal/120 watt max)
• IP Rating: IP31

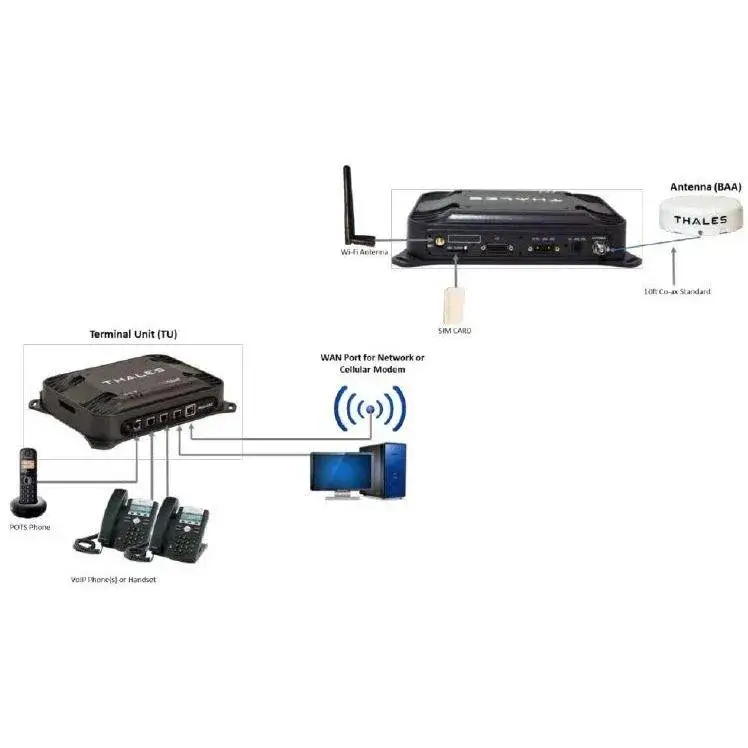

• Front connectors
• RJ-45 LAN (3) Class 2 PoE
• RJ-45 WAN (1) for cellular connection
• RJ-14 POTS
• Rear Connectors
• DC Power Input (10-32V) MIL-STD1275D
• DC Power Input, +12V Regulated
• GPIO (RS-232, +12V out, DISTRESS, Radio
• Gateway, GPIO)
• TNC Connector, RF connection to Antenna
• Wi-Fi reverse SMA
• SIM slot
• Mechanical Vibration and Shock: MIL-STD-810G, Test Method 514.6, Procedure 1, Category 4, Annex C MIL-STD-810G, Test Method 516.6, Procedure IV

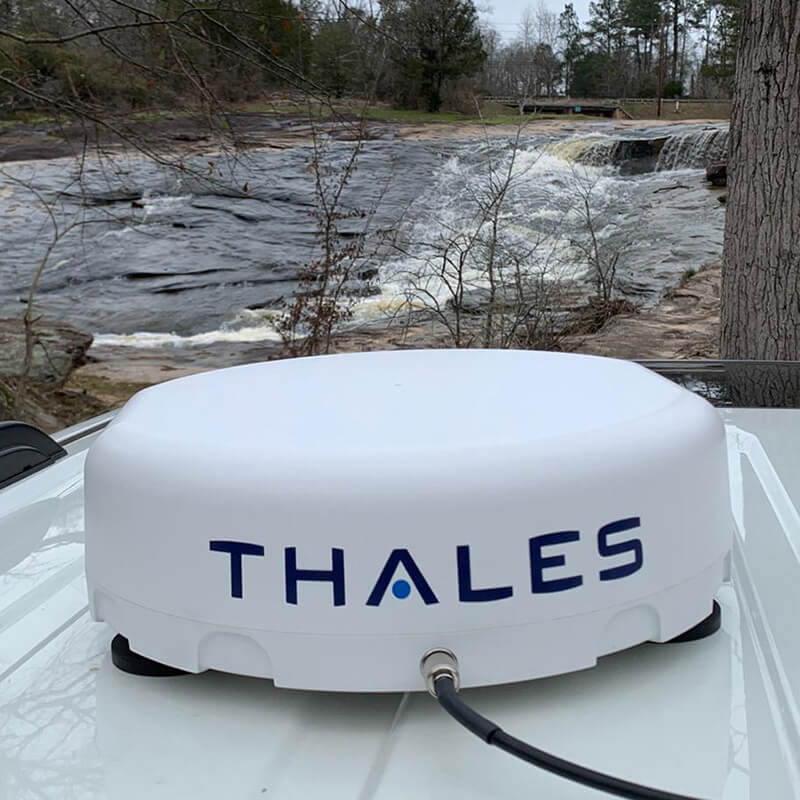

Antenna Overview

High-gain, electronic phased array antenna with no moving parts to enable the fastest upload and download speeds to cover any land communications need from safety services, tracking and location services, out-of-band management to operational reporting and data transfers.

Antenna Specifications

Size: 14.5 inches diameter x 4.1 inches high (35.6 cm diameter x 10.2 cm high)

Weight: 6.2 pounds (2.8 kg) Power: Directly powered by the terminal at 24 VDC

IP Rating: IP66

Operating Temperature: -60 to +55° C

Mechanical Vibration and Shock: MIL-STD-810G, Test Method 514.6, Procedure 1, Category 20, Annex D MIL-STD-810G, Test Method 516.6, Procedure IV

Available Accessories compatible with MissionLINK 200 and 350 series

• 19” Rack Mount Shelf Kit 1100796-501
• Kit, Antenna Magnetic Mounts (Certus 350 only) 1100790-501
• Kit, Antenna Magnetic Mounts (Certus 200 only) 1100856-501

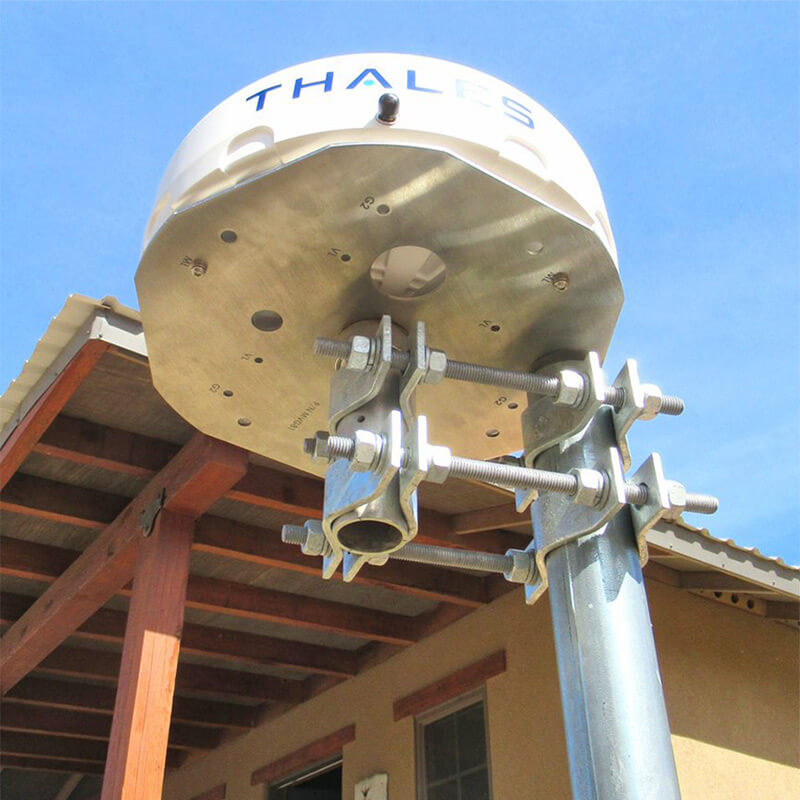

• Antenna Premium L-Bracket Pole Mount Kit (Certus 200 only)  1100855-503
• Kit, Antenna Mounting Hardware (Certus 350 only) 1100792-501
• Kit, Terminal Unit, Mounting Hardware 1100789-501
• Mounting Template, Terminal Unit 3900011-1
• Mounting Template, BAA (Certus 350 only) 3900013-1
• Thales SureLINK IP Handset Kit 1100818-501
• Power Supply, AC/DC 12V – 160W 84670-001
• Cable AC Power with USA Plug Type B IEC 60320-C13 Connect Blk 6ft. 854024-001
• Cable AC Power with Euro Plug Type E IEC 320-C14 Connect Blk 6ft. 854025-001
• Cable AC Power with AUS Plug Type 1 IEC 320-C14 Connect Blk 6ft. 854026-001
• Cable AC Power with UK Plug Type G IEC 320-C13 Connect Blk 6ft 854027-001
• RF Cable: 10ft., LMR240 855021-010
• RF Cable: 20ft., LMR240 855021-020
• RF Cable: 30ft., LMR240 855021-030
• RF Cable: 50ft., LMR240 855021-050
• RF Cable 100ft., LMR400 855022-100
• RF Cable, Coaxial 25m LMR300 Fire Rated 855023-082
• RF Cable, Coaxial 50m LMR400 Fire Rated 855033-164
• Cable, 10-32Volt DC Power Harness 855024-003
• Cable, RJ-45 Ethernet, 10ft. 855026-010
• Wi-Fi Antenna, 2.4 GHz Dipole 2dBi 85728-001
