MF200BV-1 Thales MissionLINK 200 Certus System (Land)
$8,206.00 Inc. GST
MF200BV-1 Thales MissionLINK 200 System, Land, Basic
We’re big fans of the Thales MissionLINK 200 for its versatility. It delivers basic internet use via WiFi or RJ-45 cable and has two RJ-14 ports for independent phone lines.
Dependable and robust comms with a small antenna
The antenna is highly lightweight and compact, ideal for use on the move. Plus, the solution has relatively low power requirements, making it suitable for tracking applications.
MissionLINK 200 uses the Iridium Certus 200 service, via 66 satellites in Low Earth Orbit (LEO), providing 100% global coverage, including the polar regions. it’s ideal for field workforce management for fleets, remote asset control requiring IP connectivity, voice communications, and added redundancy for VSAT systems as a failover for out of band management and back-up connectivity.
If you want a truly global, dependable and flexible satellite communications service, you can’t go wrong with the MissionLINK 200.
MissionLINK 200 provides truly global communications on any continent.
It comes with an intuitive, user-friendly interface and can be quickly integrated into existing vehicles or new fleets, and also includes built-in upgradeability to extend your investment and ensure peak speed and performance.

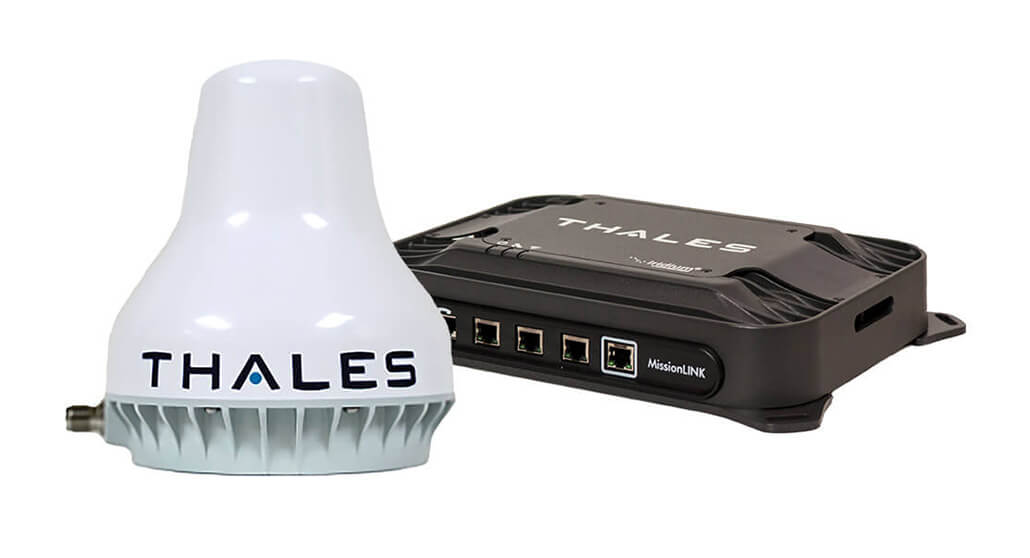

MF200BV-1* Basic Kit includes:

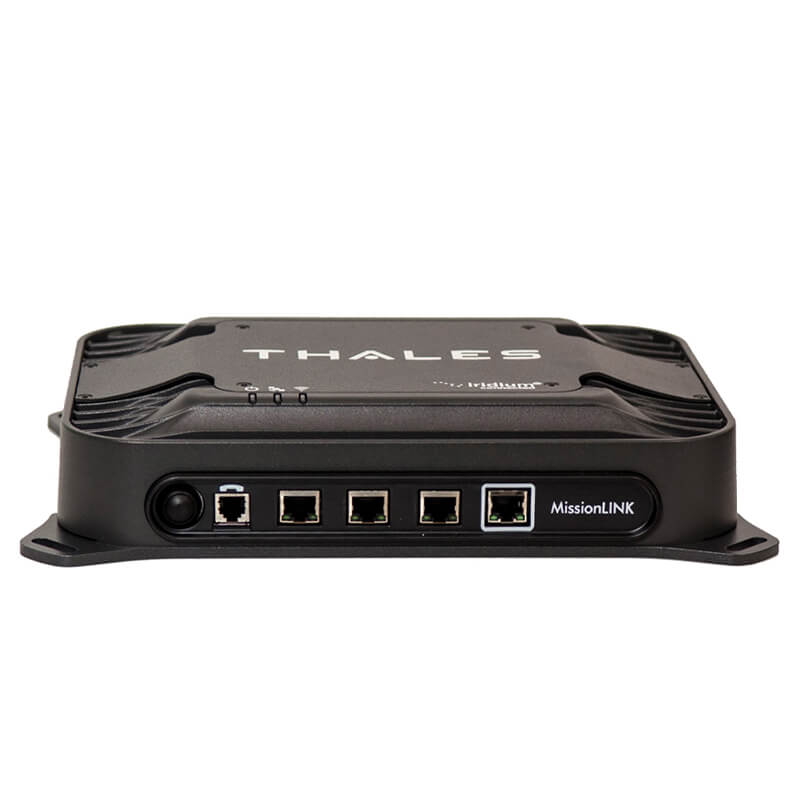

- 4102947-522 Terminal Unit, MissionLINK ®
- 3900011-1 Mounting Template, Terminal Unit
- 85728-001 Wi-Fi Antenna, 2.4 GHz Dipole 2 dBi
- 1600951-1 Broadband Active Antenna (BAA), Certus 200
- 3402174-1 Quick Start Guide (QSG) MissionLINK®
*NOTE: Does NOT include power cable, mounting plate, antenna cable or any other accessories
Overview
- Delivers Critical Communications, Anywhere in the World, Even on the Move
- Delivers up to 176 Kbps Transmit/176 Kbps Receive
- Rated for Water, Vibration, and Shock Resistance
- Optimized for Satellite Backhaul with Built-In Preferred Routing Switch
- Low-Gain Omni-Directional Antenna with No Moving Parts
Key Features
- Certus 200 Services (176 kpbs Up/Down)
- 100% Global Satellite Coverage and Low Latency for Critical Data and Voice Communications
- Satellite to Land Mobile Radio Extendable Network Through a Unique Radio Gateway
- Easily Integrates Terrestrial Cellular with Built-in Preferred Routing Switch
- Dependable and robust satcoms, covering every continent
Features
- Iridium Certus 200 service (176 Kbps up / down)
- 100% global satellite coverage and low latency for critical data and voice communications
- Satellite to land mobile radio extendable network through a unique radio gateway
- Easily integrates terrestrial cellular with built-in preferred routing switch
- Dependable and robust satcoms, covering every continent
- L-band frequency: unaffected by weather or landscape
Terminal Specifications
- Terminal dimensions: H2.3 x W12.0 x D9.0in
- Terminal weight: 7.5lbs
- Power options: 10-32 VDC or AC/DC supply with 12 VDC (65 watt nominal / 120 watt max)
- IP rating: IP31
- Front connectors: RJ-45 x 3; Class 2 PoE RJ-45 WAN x 1 for cellular, VSAT and other IP connections; RJ-14 POTS (2 independent phone lines)
- Rear connectors: DC Power Input (10-32V) MIL-STD-1275D, DC power Input (+12V regulated), GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O), TNC – RF connection to Antenna, WiFi – Reverse SME, SIM card slot
- Mechanical vibration and shock: MIL-STD-810G w/Change 1, Test Method 514.7, Category
Antenna Specifications
- Dimensions: 5″ dia. x 5.5″ h
- Antenna weight: <1.5 lbs
- Power: directly powered by the terminal at 24 VDC
- Operating temperature: -40 to +55C
- Mechanical vibration and shock: MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
Available Accessories compatible with MissionLINK 200 and 350 series
- 19” Rack Mount Shelf Kit 1100796-501
- Kit, Antenna Magnetic Mounts (Certus 350 only) 1100790-501

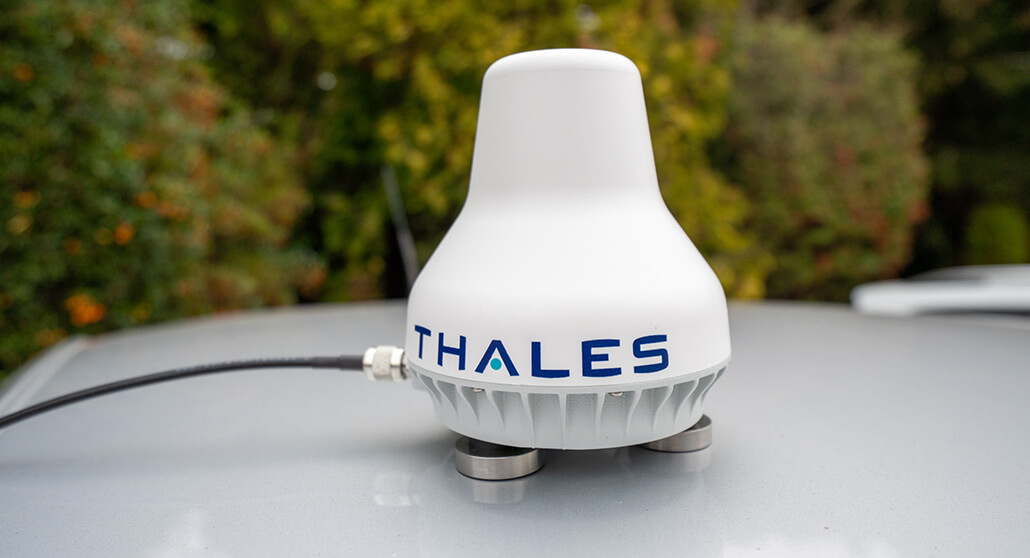

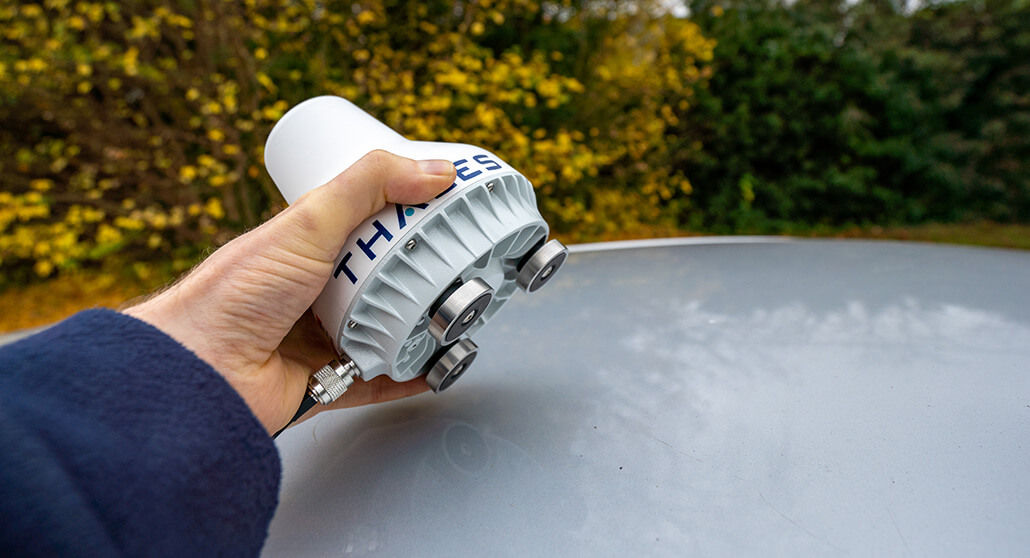

- Kit, Antenna Magnetic Mounts (Certus 200 only) 1100856-501
- Antenna Premium L-Bracket Pole Mount Kit (Certus 200 only) 1100855-503
- Kit, Antenna Mounting Hardware (Certus 350 only) 1100792-501
- Kit, Terminal Unit, Mounting Hardware 1100789-501
- Mounting Template, Terminal Unit 3900011-1
- Mounting Template, BAA (Certus 350 only) 3900013-1
- Thales SureLINK IP Handset Kit 1100818-501
- Power Supply, AC/DC 12V – 160W 84670-001
- Cable AC Power with USA Plug Type B IEC 60320-C13 Connect Blk 6ft. 854024-001
- Cable AC Power with Euro Plug Type E IEC 320-C14 Connect Blk 6ft. 854025-001
- Cable AC Power with AUS Plug Type 1 IEC 320-C14 Connect Blk 6ft. 854026-001
- Cable AC Power with UK Plug Type G IEC 320-C13 Connect Blk 6ft 854027-001
- RF Cable: 10ft., LMR240 855021-010
- RF Cable: 20ft., LMR240 855021-020
- RF Cable: 30ft., LMR240 855021-030
- RF Cable: 50ft., LMR240 855021-050
- RF Cable 100ft., LMR400 855022-100
- RF Cable, Coaxial 25m LMR300 Fire Rated 855023-082
- RF Cable, Coaxial 50m LMR400 Fire Rated 855033-164
- Cable, 10-32Volt DC Power Harness 855024-003
- Cable, RJ-45 Ethernet, 10ft. 855026-010
- Wi-Fi Antenna, 2.4 GHz Dipole 2dBi 85728-001
