A80732 Flir RayNet RNS-8 Network Switch Kit
8 port Gigabit RayNet network switch with 4 dedicated power-over-ethernet (POE) ports.
Compatibility/Application: Various Flir and User supplied compatible devices.

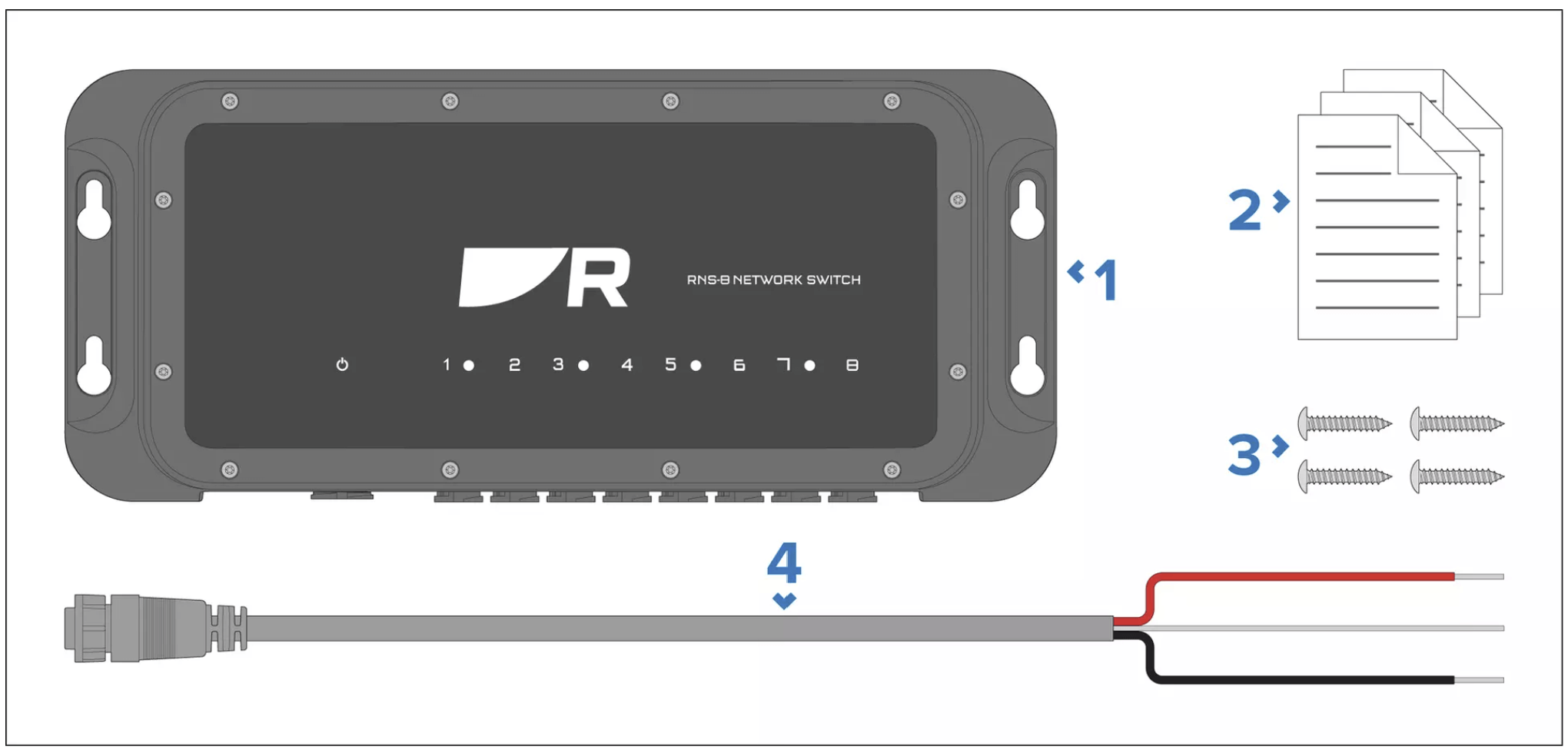

In This Pack:
- RNS-8 Network switch
- Fixing screws, x4pcs (M4, 8.94 x 25mm)
- Power cable, 1.5m (4.9ft)
- Documentation pack
RNS-8 KEY FEATURES

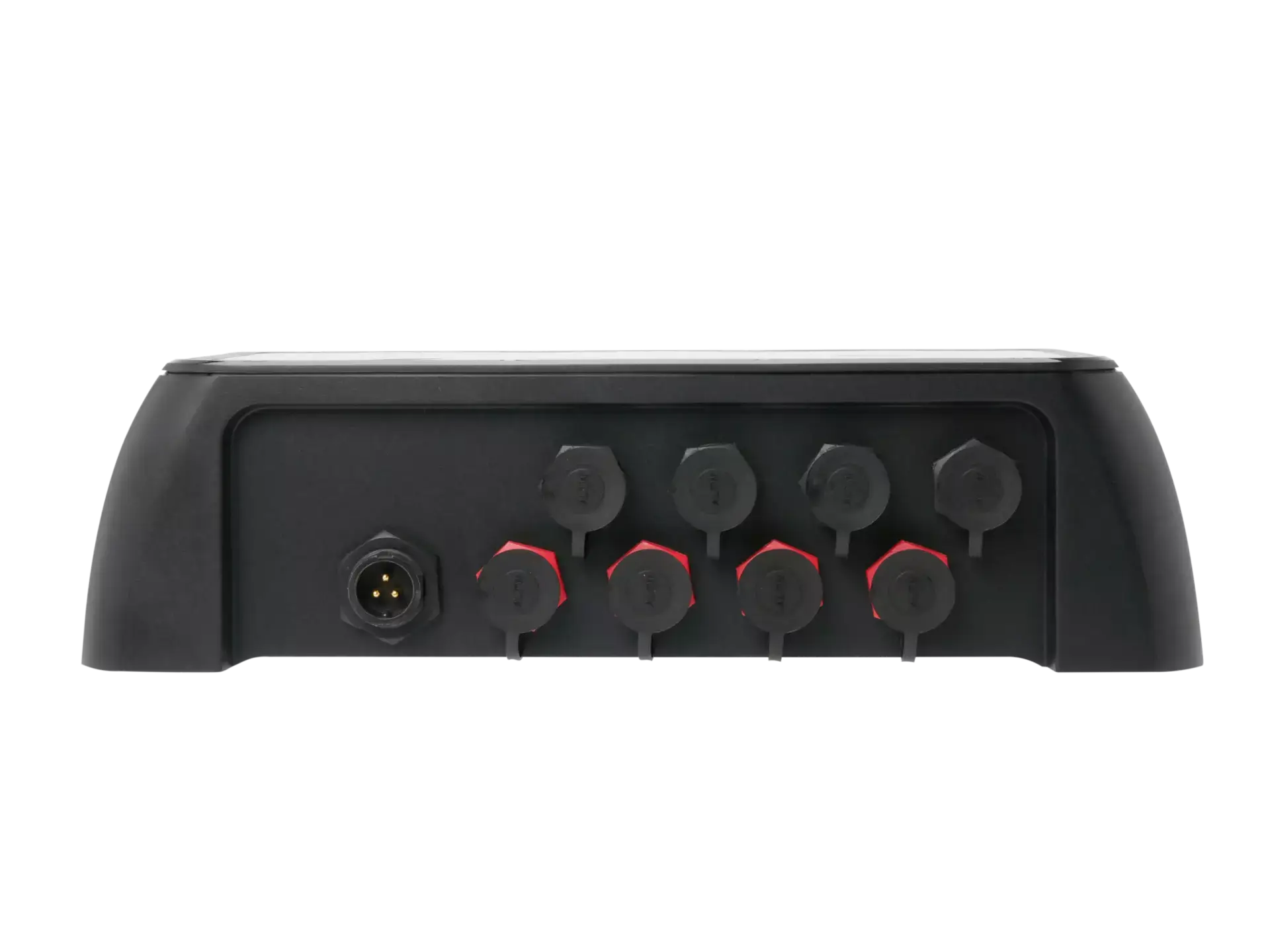

- 8 RayNet Ethernet gigabit ports for fast and reliable connectivity
- 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes
- Rugged IPX6/IPX7 construction
- Reliable, waterproof RayNet connector Ethernet cable ports
- Designed for simple bulkhead mounting
- LED power and network port status indicators
- Unmanaged- simply plug and play with Raymarine devices.
- Remote diagnostics and performance monitoring via web browser
- For extended networks, up to 8 RNS-8 switches can be daisy-chained together
Easy marine camera integration
The RNS-8 network switch is a premium network switch.
Use the RNS-8 to integrate chart plotter displays with radars, sonar modules, and FLIR Marine thermal cameras.
The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads.
The RNS-8 is simple to install and requires no complicated setup.
| Physical | |
|---|---|
| Length | 287.63 mm (11.32 in) |
| Height | 125.5 mm (4.94 in) |
| Depth | 78 mm (3.07 in) |
| Port separation distance | 17.38 mm (0.68 in) |
| Weight | 960.5 g (2.12 lbs) |
| Power | |
|---|---|
| Nominal supply voltage | 12 V or 24 V dc |
| Operating voltage range | 9 V to 31.2 V dc |
| PoE operating voltage range | 10.8 V to 31.2 V dc |
| Power consumption | 160 W (Maximum) @ 12 V dc
150 W (Maximum) @ 24 V dc |
| Current | 13.3 A (Maximum) @ 12 V dc
6.25 A (Maximum) @ 24 V dc |
| Inline fuse rating | 15 A @ 12 V dc
8 A @ 24 V dc |
| Thermal breaker rating | 20 A @ 12 V dc
10 A @ 24 V dc |
| Network | |
|---|---|
| Network connection ports | 4 x RayNet connection ports (10/100/1000 Mbits/s)
4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE Classes 0 to 4, with 30 W maximum power available for each port. Note:
|
| IEEE Standard | Conforms to IEEE 802.3at |
| Environmental | |
|---|---|
| Operating temperature | –25 °C (–13 °F) to +55 °C (131 °F) |
| Non-operating temperature | –30 °C (–22 °F) to +70 °C (158 °F) |
| Relative humidity | up to 93% @ 40 °C (104 °F) |
| Waterproof rating | IPx6 & IPx7 |
| Conformance | |
|---|---|
| Standards | EN 60945:2002 (Europe, Australia New Zealand)
ICES-003 (Canada) CFR47 Part 15 (USA) IACS section E10 (Japan / China) |
| Product markings | UKCA
CE Australian Tick WEEE Directive |
