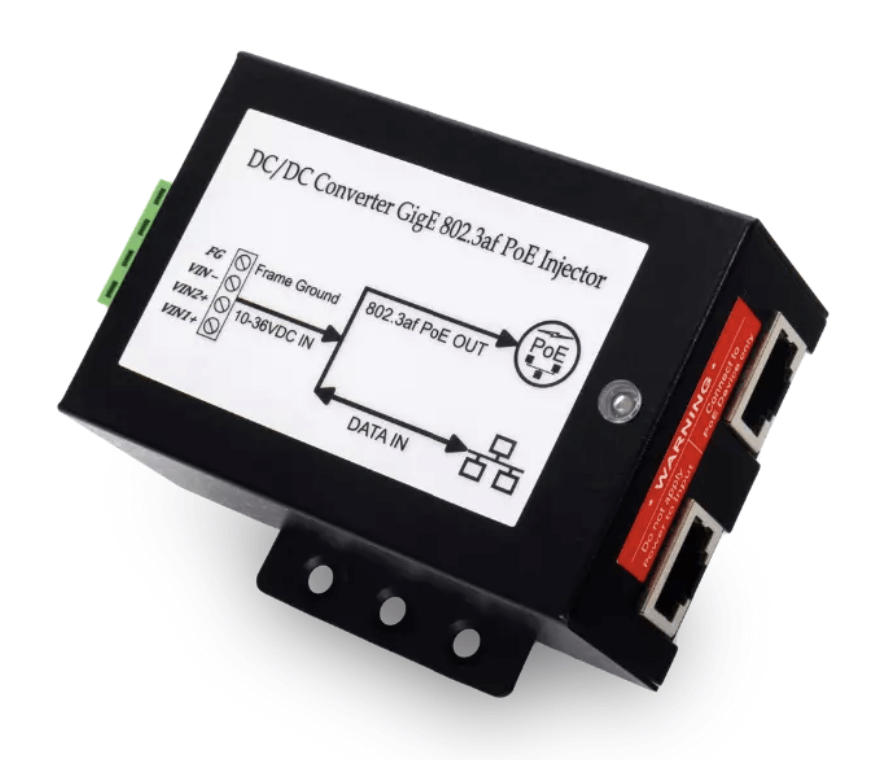

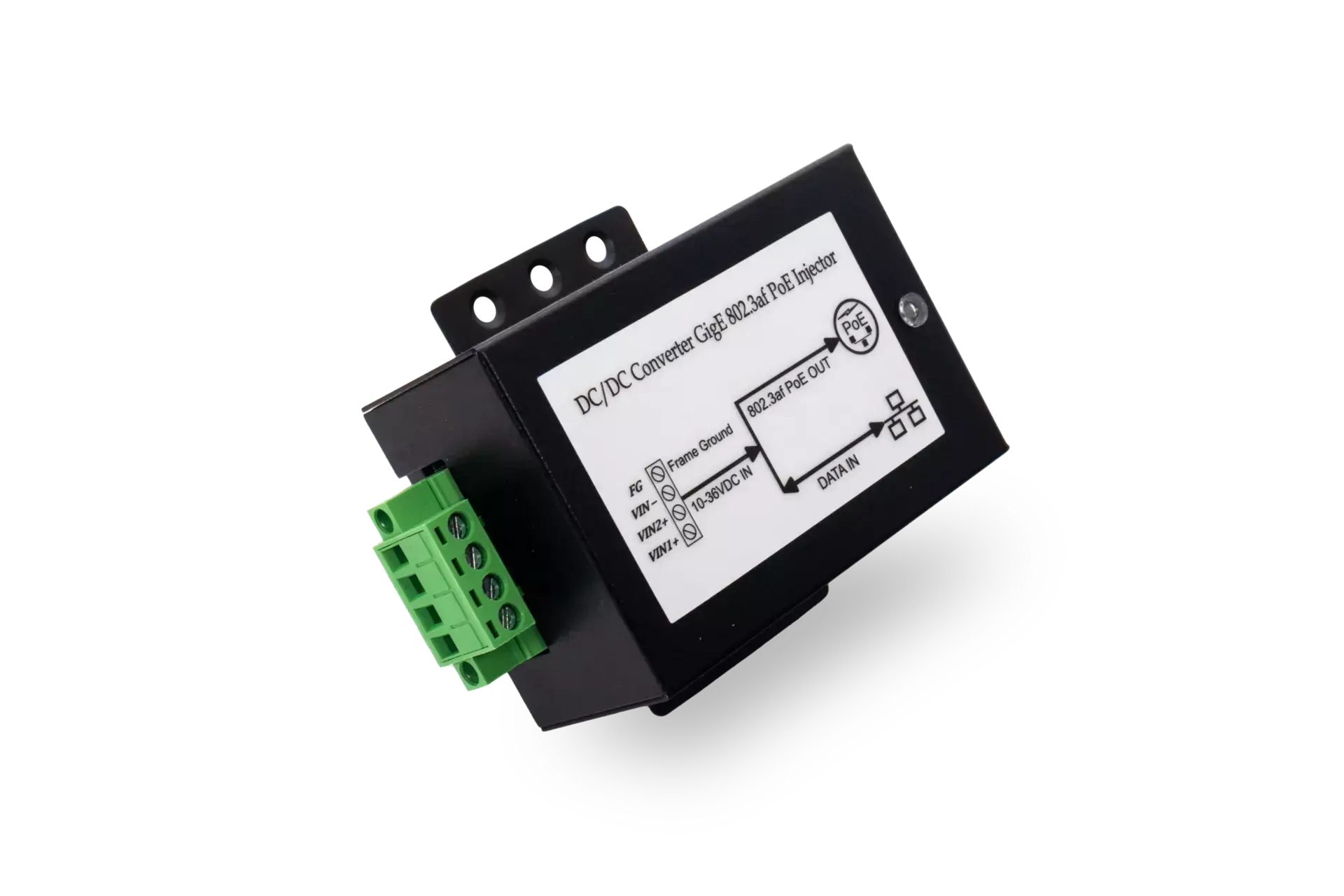

A80811 Flir PoE Injector, for all Joystick Control Unit series

SKU: A80811

$434.50 Inc. GST

A80811 Flir PoE Injector, for all Joystick Control Unit series

The FLIR PoE injector is compatible with both 12- and 24-volt DC systems for maximum flexibility.

This device also supports up to 5 Gigabit speed networking to ensure the fastest connectivity possible through its standard RJ-45 data port.

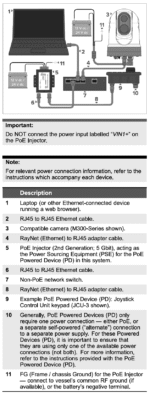

Compatibility/Application Note: All current-generation FLIR JCU(Joystick Control Units)

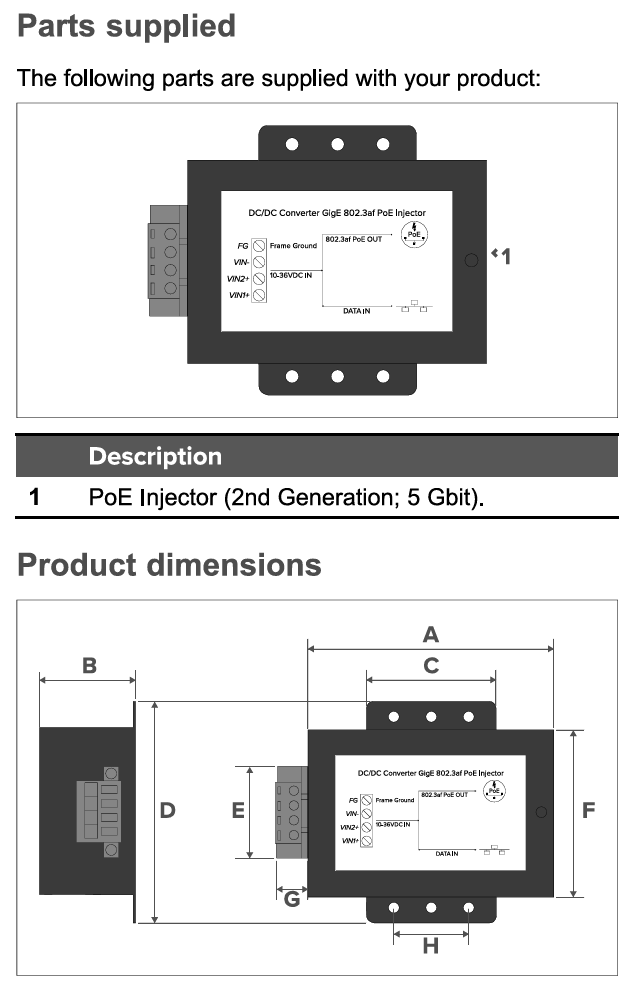

In This Pack:

Power
Nominal supply voltage	12 V or 24 V dc
Operating voltage range	10 V to 36 V dc
PoE power output	Class 1: 4 W Class 2: 7 W Class 3: 15.4 W Maximum power output: 15.4 W Ensure that the maximum power output is not exceeded. For more information, refer to: Power over Ethernet (PoE).
Current draw	2.34 A @ 10 V dc 0.65 A @ 36 V dc
Power consumption	23.4 W @ 10 V dc 23.4 W @ 36 V dc
Power consumption	23.4 W @ 10 V dc 23.4 W @ 36 V dc
PoE nominal output voltage range	44 V to 57 V de (based on the IEEE 802.3af standard)

Network
Network connection ports	1 x RJ45 data input port (1000 / 5000 Mbits/s) 1 x PoE RJ45 combined power and data output port ( 1 000 / 5000 M bits/s). (Supports PoE classes O to 3, with 15.4 W maximum power consumption, based on the IEEE 802.3afstandard).
IEEE Standard	Conforms to IEEE 802.3af

Conformance
Standards	EN 60945:2002 (Europe, Australia, New Zealand) FCC Class B IEEE 802.3af
