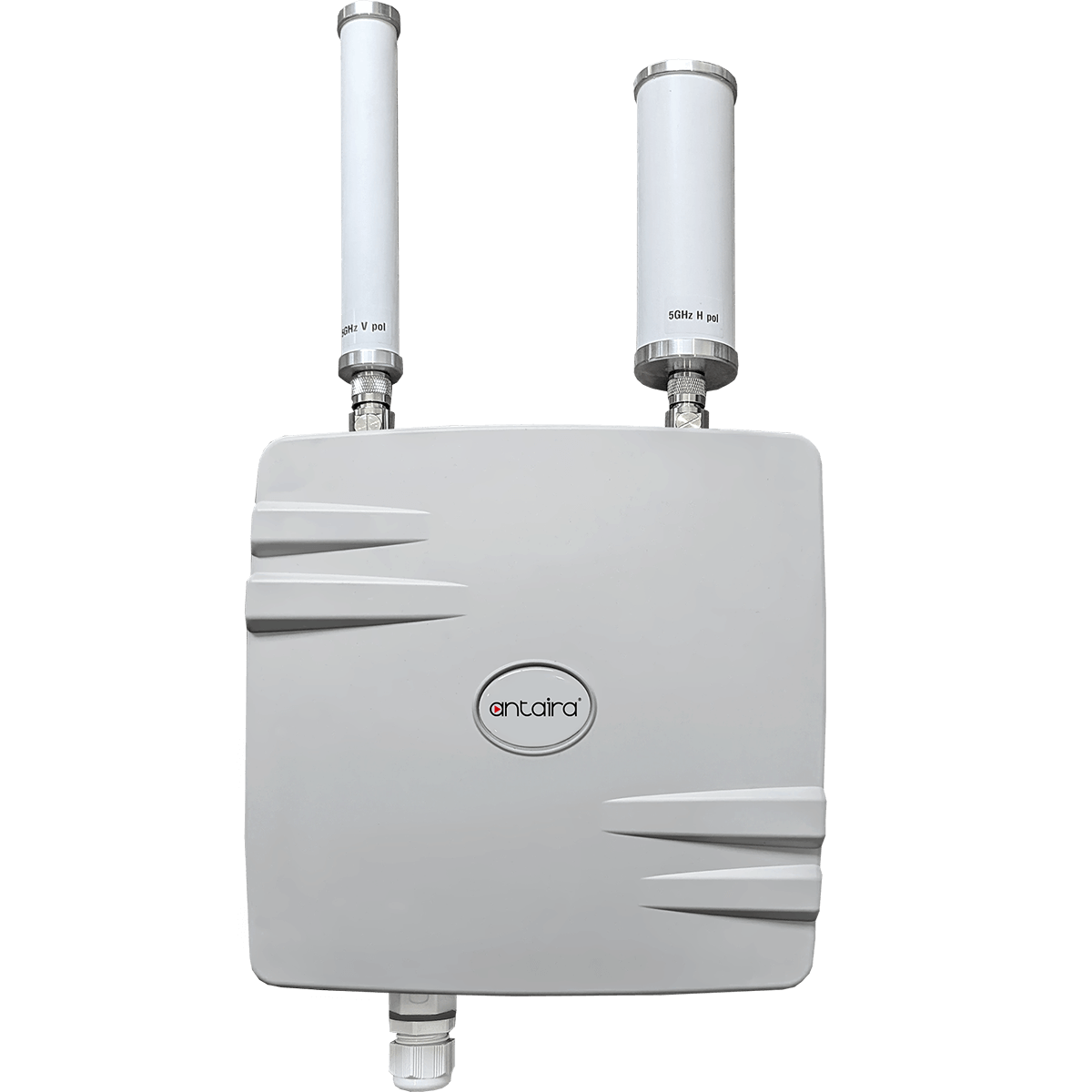

AIROLINX-6-EOM-IP67-T Antira Outdoor IP67 Wi-Fi 6 Access Point / Router, External Antennas
$2,307.01 Inc. GST
AIROLINX-6-EOM-IP67-T Antira Outdoor IP67 Wi-Fi 6 Access Point / Router, External Antennas
Industrial Outdoor IP67 w/ External Omnidirectional Antennas Wi-Fi 6 (802.11a/n/ac/ax) Wireless Access Point / Client / Bridge / Repeater / Router with 802.3at PoE PD; EOT: -40°C to 75°C
Antaira Technologies’ Airolinx-6 Series is a single radio industrial 802.11a/n/ac/ax wireless LAN access point with added router capabilities.
Included
- AIROLINX-6-EOM-IP67-T
- 2*External Antennas
- Pole Mounting Kit
The Airolinx 6 Series is specifically designed for a wide variety of applications, including:
– Security – Reliable, high-speed Wi-Fi for IP surveillance cameras and security networks.
– Transportation – Ideal for intersection connectivity, public transit networks, and vehicle-to-infrastructure (V2I) communication.
– Automation – Provides seamless wireless connectivity for SCADA applications, remote monitoring, and industrial IoT.
Airolinx-6-EOM-IP67-T is a single-band outdoor AP with external dual-plane omnidirectional antennas, offering customizable coverage up to 2 miles with included antennas Supports a variety of alternate antennas, including dish, sector, horn and panel antennas, providing extended distances versatility for deployments.
Features
- Wi-Fi 6 IEEE 802.11ax Single-Band Radio
- Delivers up to 2400 Mbps on 5GHz
- Supports 1*10/100/1000Tx RJ45 Ethernet Port
- Coverage up to 2 miles (3km) with included antennas
- Powered by IEEE 802.3at PoE with standard power consumption of 6W
- Extended Operating Temperature: -40°F to 167°F (-40°C to 75°C)
- IP67 Rated Casing
- Tested to withstand wind speeds up to 125mph (200kph)
- Variety of alternate antennas, including dish, sector, horn and panel antennas, providing extended distances versatility for deployments
- 5-Year Warranty
Accessories – not included, but available to order
| Ethernet Port | 1*10/100/1000Base-TX |
| Antenna | External |
| PoE | Active PoE |
| System Power Consumption | 6W |
| Power Input | IEEE 802.3at PoE |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Dimensions | 386 x 605 x 81.6mm (15.2 x 23.8 x 3.2in) |
| Weight | Unit: 1.84kg (4.06lbs) Shipping: 2.77kg (6.10lbs) |
| Mounting | Pole |
| Housing | Plastic, IP67 |
| LED Indicators | Power, Link, Activity |
| Protocols | IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP |
| Standards | IEEE 802.11a/n/ac/ax Wi-Fi 6 IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3 1000Base-T Gigabit Ethernet IEEE 802.3af/at Power over Ethernet |
| WLAN Operation Mode | Access Point/Client/Bridge/Repeater/Router |
| Encryption Security | WPA, WPA2, WPA3, WEP, TKIP, AES |
| Certifications | CE, FCC, IC, EAC, RoHS Compliance |
| Warranty | 5 Years |
| Country of Origin | Made in Poland |
Brand
Antaira
Included
- AIROLINX-6-EOM-IP67-T
- 2*External Antennas
- Pole Mounting Kit
