XFP-10G-S80 Antaira 10G Ethernet XFP Transceiver, compact optical transceiver module

SKU: XFP-10G-S80

$4,661.35 Inc. GST

XFP-10G-S80_media.nl_BR.pdf

XFP-10G-S80 Antaira 10G Ethernet XFP Transceiver, compact optical transceiver module

The XFP-10G-S80 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The XFP-10G-S80 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams.

Included

XFP-10G-S80

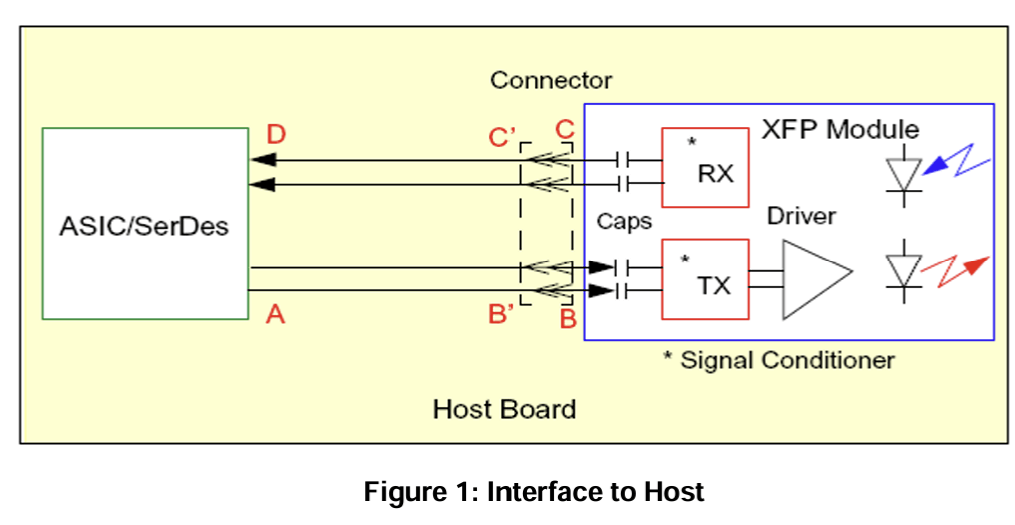

The high speed 10Gb/s electrical interface is fully compliant with XFI specification and allows FR4 host PCB trace up to 200mm. If you want to learn more about fiber optics, check out our blog.

Features

10Gb/s serial optical interface compliant to 802.3ae, 10GBASE ER/EW
Uncooled 1550nm EML transmitter with TEC, Pin photo-detector
XFP Mechanical interface with bail latch and hot pluggable
XFI High Speed Electrical Interface
2-wire interface for management and digital diagnostic monitor
Operating case temperature: 0 to 70 °C
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
RoHS Compliant
No reference clock needed

Applications

 SONET(OC-192)/SDH(STM64) line card

 10GBASE-ZR (10.3125Gbps)

 10GBASE-ZW (9.953Gbps)

 10GE Ethernet switches and routers

 10GE Storage

Accessories – not included, but available to order

Antaira’s 10G XFP modules with fiber optics allow customers to utilize an XFP 10 Gigabit port on an existing piece of hardware to send either multi-mode data up to 300M or single-mode data up to 80Km over a fiber-optic link. Every device in this collection features a high-performing, cost-effective design that is optimized for 10G Ethernet applications in highly punishing industrial environments. These hot-pluggable optical transceivers are made for bi-directional serial-optical data communications and are fully compliant to 802.3ae standards. With advanced firmware that allows for a larger degree of custom system encryption capabilities, these 10G XFP modules are sure to deliver the reliable performance you need.

If you have any questions regarding our 10G XFP modules, please contact our team. We’d be happy to help

Data Rate	9.95Gb/s to 10.7Gb/s
LD Type Wavelength	1550nm EML
Dimensions	13.70 x 56.50 x 8.95 mm (0.54 x 2.22 x 0.35 inches)
Warranty	5-year Warranty
Interface	LC (Single-Mode)
Distance	80 Km
Operating Voltage And SD Output	3.3V

Brand

Antaira

Included

XFP-10G-S80
