One of a Kind

53.5cm (21 inch) Reflector Ku-band Satellite TV System

The i5 Satellite TV system is the world’s first marine satellite antenna system purpose built for offshore cruising vessels 12m (35ft) to 18m (60ft) in length. With performance similar to most 60cm (24 inch) systems, the i5 delivers quality signal reception throughout many of the world’s popular cruising destinations in a small, efficient form factor that matches the aesthetic of vessels in this size class.

iQ²: Quick & Quiet℠ Technology

• iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort when alongside or out at sea
• The Wide Range Search (WRS) Algorithm locks onto the satellite signal 4-5 times faster than conventional approaches
• Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while reducing overall motor motion by up to 80%, eliminating intrusive background noise

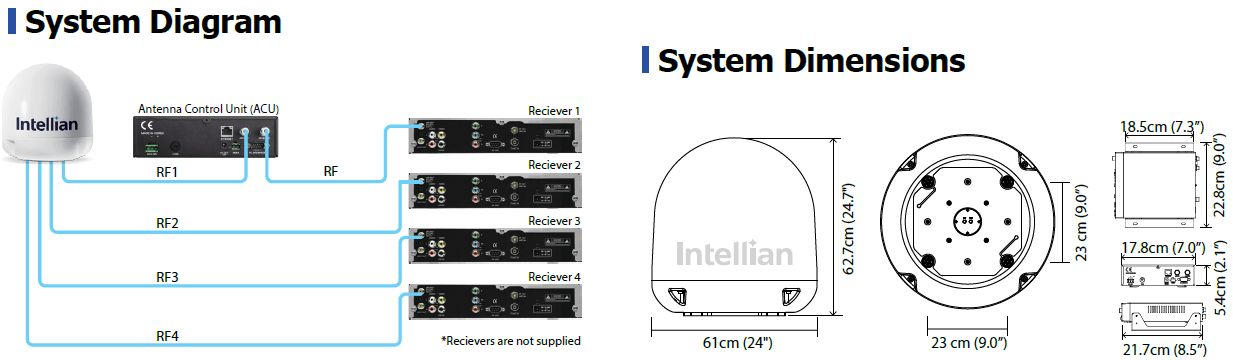

Multiple Receiver Capability

• Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
• Using the MIM a master receiver can be selected to control the target satellite
• In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home, US, Caribbean, Bahamas, and Mexico

Fully Automated System
• Automatic satellite search and identification.
• 2 axis step motors move automatically to stabilize antenna to maintain

TV reception.
Axially Displaced Ellipse (ADE) Antenna Design
The i5P’s highly efficient parabolic antenna using ADE design improves the overall performance in a compact antenna.

Wide Range Search (WRS) Algorithm
Intellian’s exclusive WRS algorithm locks onto even the weak edges of a satellite signal and then instantly finds the signal peak, four to five times faster than conventional antennas.

Dynamic Beam Tilting (DBT) Technology
A high-speed sub-reflector rotates off axis, checking signal strength at 50 times per second and compensating the tracking direction. Less movement of the main-reflector means less noise and extends the product life.

DVB-S2 Signal Identification
High speed identification employing DVB-S2 Decoder.

Antenna Control Unit
• Intuitive controls with a digital information display on the ACU.
• Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile.

Built-in GPS and NMEA 0183 Interface Port
The i5P includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.

Automatic Polarization (Skew-angle) Control
Automatic Skew Angle Control System (-90°~ +90°) for Linear Horizontal/
Vertical Polarization.

Just the Right Fit
The i5 is the world’s first 21” satellite TV designed for cruising vessels who require exceptional TV service throughout the US, Bahamas, Caribbean, and Mexico. The antenna is purpose built to provide just the right fit for vessels 40 to 60 feet.

Quicker & Quieter
Intellian’s patented iQ2 technology delivers the best user experience available on the market today. An advanced signal searching algorithm acquires the satellite 4-5 times faster than conventional methods. Intelligent, real time beam analysis holds the signal and reduces overall motor movement by up to 80%, eliminating annoying background noise while at anchor or in the slip.

Simple & Easy Installation

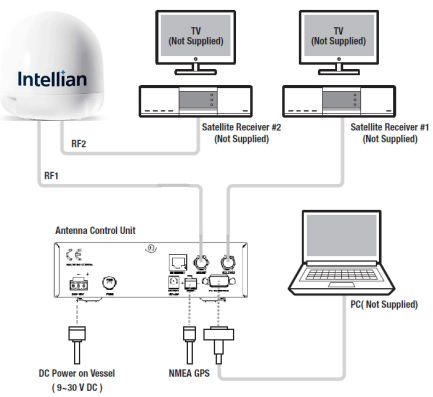

With a single cable to connect the antenna and the ACU, the i5 system is quick and easy to install. Our intuitive ACU features a front panel display with functional keys and requires minimal setup so you can begin to enjoy TV programs in no time.
