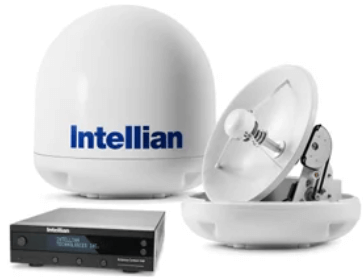

B4-609J1 Intellian i6P Global Satellite TV Antenna System, 60cm Ku-band
$13,557.50 Inc. GST
B4-609J1 Intellian i6P Global Satellite TV Antenna System, 60cm Ku-band
High Performance Antenna
- 60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
- Circular or linear polarization depending on region and LNB selected
- Built-in HD module for Ku-band HD TV reception
WorldView Ready The Intellian i6 is ideal for larger yachts or commercial vessels traveling across different global regions. With its highly accurate satellite tracking capability, the i6 outperforms in all conditions. When equipped with Intellian’s proprietary WorldView LNB, the i6 can operate in any global coverage area without manual intervention.
iQ²: Quick & Quiet℠ Technology
- iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
Key Features
Fully Automated System
Automatic satellite search and identification.
2-axis step motors to stabilize the pedestal.
Enhanced Antenna
Highly efficient 24 inch parabolic antenna enables 47dBW of minimum
EIRP. RHCP / LHCP, Vertical / Horizontal polarization.
Easy Installation

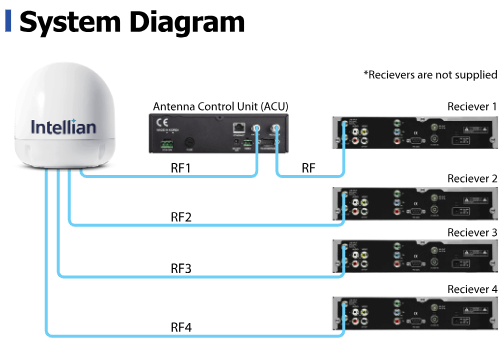

Single cable from the Antenna to the Antenna Control Unit.
Wide Range Search (WRS) Algorithm
Competitor methods search for the narrow-bandwidth of the main lobe.
However Intellian’s exclusive WRS searches for the wide range of side
lobes and jumps up to the main lobe, providing faster satellite acquisition.
DVB-S2 Signal Identification
High speed identification employing DVB-S2 Decoder.
Dynamic Beam Tilting (DBT) Technology
A high-speed sub-reflector rotates off axis, checking signal strength
at 50 times per second and compensating the tracking direction. Less
movement of the main-re”ector means less noise and extends the
product life.
New Type Antenna Control Unit
• Intuitive controls with a digital information display on the ACU
• Wireless automated updates and diagnostics via Aptus PC and Aptus
Mobile
Automatic Polarization (Skew-angle) Control *i6P Only
Automatic Skew Angle Control System (-90°~ +90°) for Linear Horizontal
/ Vertical Polarization.
Built-in GPS and NMEA 0183 Interface Port
The i6/i6PE includes a built-in GPS inside of the Antenna Unit for faster
signal acquisition. The ship’s GPS can also be connected through the
NMEA 0183 port on the rear panel of the ACU.
A Firm Hold on the Signal Intellian’s exclusive Dynamic Beam Tilting (DBT) uses a high performance, constantly adjusting sub-reflector which allows the antenna to remain the strongest signal at all times while the vessel is cruising at high speed.
Faster Signal Acquisition Intellian’s exclusive Wide Range Search (WRS) algorithm allows the antenna to search, #nd and lock on to a signal with incredible speed and accuracy.
Simple and Easy Installation With a single cable to connect the antenna and the ACU, Intellian i3 systems are quick and easy to install. Our advanced ACU is designed to require minimum setup so you can begin to enjoy TV programs aboard your boat in no time.
Unmatched Performance 60cm reflector diameter with nationwide coverage for North & South America, Europe and the regional service around the globe.
Tune into Your Favourite HDTV Channels
Intellian’s i6/i6P provides HD channels from the Ku-band. The
HD module is actually built-in to the Antenna Control Unit of
the Intellian i6/i6P for seamless integration and easy installation.
Built-In GPS
Intellian i6/i6P includes a built-in GPS for easier operation and
faster signal acquisition. It allows the i6/i6P to have higher accuracy
and easy operation wherever the vessel sails.
Wireless Connectivity and APTUS Mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs,
laptops and smartphones can be used to connect to the ACU and
monitor, control and change the settings of the system wirelessly.
Intellian Aptus mobile is available for download to access to the ACU
via Wi-Fi and operate the antenna from their iPhone, iPad or other
network devices. iPhone and iPad are registered trademarks of
Apple Inc.
Marine Satellite TV Antenna System
