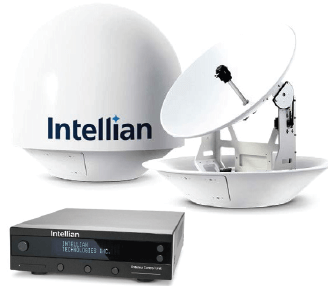

B4-919Q Intellian i9P Global Satellite TV Antenna System, 85cm Ku-band
B4-919Q Intellian i9P Global Satellite TV Antenna System, 85cm Ku-band
A firm hold on the Signal
Intellian’s exclusive Dynamic Beam Tilting (DBT) uses a high
performance, constantly adjusting sub-reflector which allows
the antenna to remain the strongest signal at all times while
the vessel is cruising at high speed.
Faster Signal Acquisition Intellian’s exclusive Wide Range Search (WRS) algorithm
allows the antenna to search, #nd and lock on to a signal
with incredible speed and accuracy.
Most powerful Performance
85cm reflector diameter with nationwide coverage for North &
South America, Europe and the regional service around the globe.
Tune in Your Favourite HD Channels
Intellian’s i9P provides HD channels from the Ku-band. The
HD module is actually built-in to the Antenna Control Unit of
the Intellian i9P for seamless integration and easy installation.
Key Features
Fully Automated System
Automatic satellite search and identification. 2-axis step motors to stabilize the pedestal.
Enhanced Antenna
Highly efficient 34 inch parabolic antenna enables 44dBW of minimum EIRP. RHCP / LHCP, Vertical / Horizontal polarization.
Wide Range Search (WRS) Algorithm
Competitor methods search for the narrow-bandwidth of the main lobe. However Intellian’s exclusive WRS searches for the wide range of side lobes and jumps up to the main lobe, providing faster satellite acquisition.
Fully Automated Digital Video Broadcasting (DVB)
Identification DVB Decoder with CPLD enables high speed identification.
Dynamic Beam Tilting (DBT) Technology
A high-speed sub-reflector rotates off axis, checking signal strength at 50 times per second and compensating the tracking direction. Less movement
of the main-reflector means less noise and extends the product life.
DVB-S2 Signal Identification
High speed identification employing DVB-S2 Decoder.

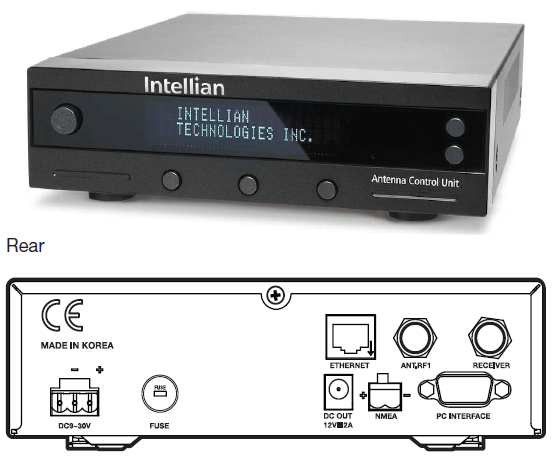

New Type Antenna Control Unit
• Easy to change and update satellite information
• Easy antenna status check and automatic diagnosis
• Easy antenna control using PC interface
Automatic Polarization (Skew-angle) Control
Automatic Skew Angle Control System (-90°~ +90°) for Linear Horizontal
/ Vertical Polarization.

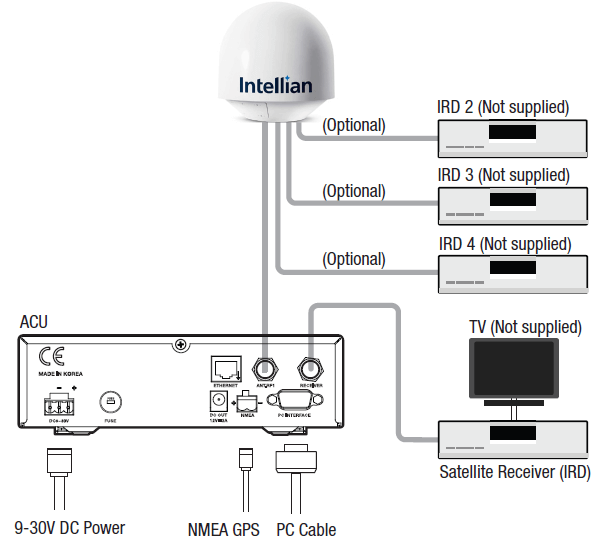

Built-in GPS and NMEA 0183 Interface Port
The i9P includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.
Wireless connectivity & Aptus mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly.
Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.
All-in-One System
Auto Skew Angle Control System, GPS and extended elevation
range provided as a default option allow the i9P to have enhanced
signal receptions in weak satellite signal coverage areas and have
accuracy and easy operation wherever the vessel sails.
Extended Coverage

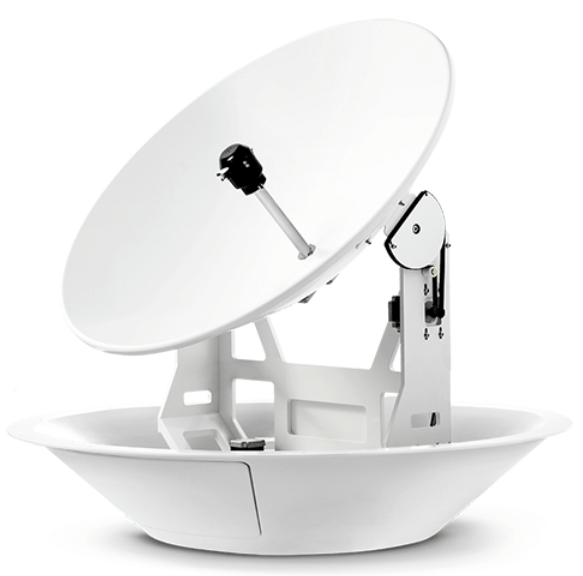

85cm (34 inch) Reflector Ku-band Satellite TV System
Intellian’s i9 offers extended coverage satellite TV reception, perfect for larger recreational or commercial vessels.
With integrated GPS and Auto Skew Control, the Intellian i9P allows for fastest and reliable satellite tracking in the roughest sea conditions.
iQ²: Quick&Quiet℠ Technology
- iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
