BINL1RR-P-XTS-1-FBM STARPAK Iridium and GPS Ruggedized Helix Hi-Gain Antenna, Flat Bracket Mount
$702.90 Inc. GST
BINL1RR-P-XTS-1-FBM STARPAK Iridium and GPS Ruggedized Helix Hi-Gain Antenna, Flat Bracket Mount
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
In this Pack
- 1pce Antenna Unit
- 1pce Teflon Gasket Diameter: 66mm(2.6in)
- 1pce MR2 Passivated Stainless Steel Angle Mount, accepts 25 – 60mm(1.0-2.5in) “U-bolts” to support Horizontal or Vertical Pipe/Masts
- 2pcs “U-Bolts” for 1in pipe, with retaining nuts
- Color: Gloss White #17925(per USA FED-STD 595B PAINT)
Basic Specs
- Height: 133mm(5.3in)
- Diameter: 66mm(2.6in)
- Weight: 283g(10oz)
- Connector: TNC-Female(SAT), and SMA-female(GPS)
- Frequency: 1616-1626.5MHz
- VSWR: <2.0:1
- Impedance: 50Ω
- Polarization: RHCP
- 6061-T6 Aluminum Base / Ruggedized Radome
- Extreme Temperature: -95°F TO +194°F (-70°C TO +90°C)
- Altitude: -700ft to + 70,000 ft.
- Vibration: 30G’s
Features
- Extreme Temperature Tolerance

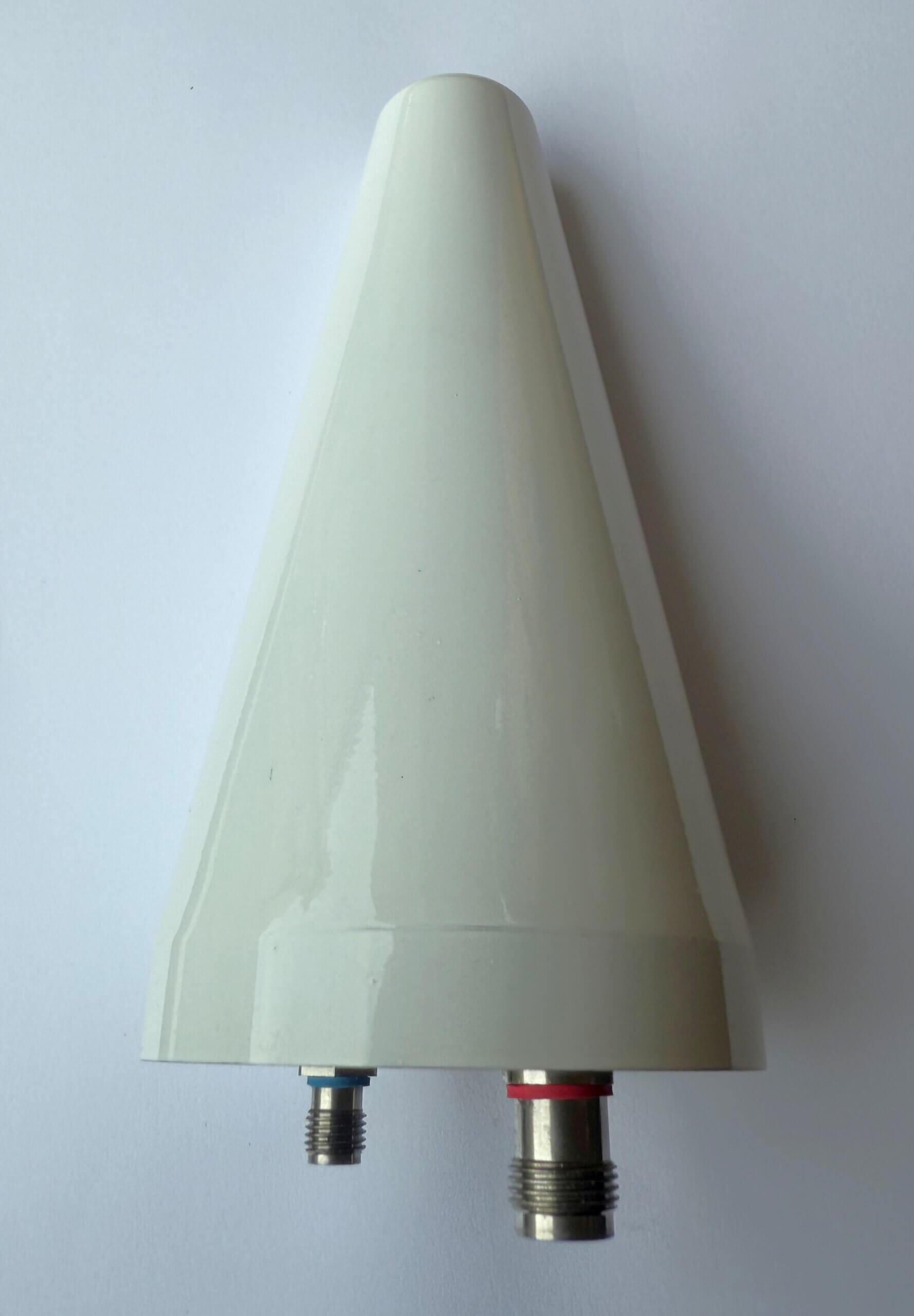

- Cone shape to restrict Ice/Snow build-up
- Mounting profile: Flat Bracket Mount(FBM) Impact, Abrasion, UV, Solvent, Skydrol, Corrosion Resistant.
- Supports Handset or Terminal use inside any Vehicle, Fixed Building, Maritime Vessel, and Aircraft.
- Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
- Available Colours: Teflon Coated Grey(marine Buoy), Gloss White, Lusterless Grey, Olive Drab Green, Lusterless Black, Desert Tan
- This is a High-Performance Helix Hi-Gain Antenna within a molded Radome securely and hermetically sealed.
- Ideal for Marine, Highly Corrosive, Harsh environments, Ruggedized design where the Highest performance is desirable.
- Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
- Made in USA, Iridium Certified Product
SPECIFICATIONS
ENVIRONMENTAL
Temperature: -70degC to 90degC (-95degF to 194degF)
Altitude: -213m(-700ft) to 21.336m(70,000ft)
Vibration: 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium Certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-461E/F,and SAEJ1455
ACCEPTANCE TEST PROCEDURE
ATP-GPS-L1L2-100
BINL1RR-P-XTS-1-FBM – Technical Specifications
Mounting profile: FBM(Flat Bracket Mount)
ELECTRICAL
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, Beam Width, and Elevation Gain
GPS Specs:: L1
Axial Ratio: 1(db) to 3(db)
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <2.0:1
DC Grounding: YES(Lightning Protection)
LNA OPTION(for GNSS or GNSS/Rx only versions)
LNA Gain: 33dB
LNA Noise figure: 3.0dB
LNA P1dB out: +13dBm
LNA DC Power: (2.5 to 24)V / <50mA
Power Handling for Passive: 10W or LNA ACTIVE: 1 Watt CW
CONNECTOR

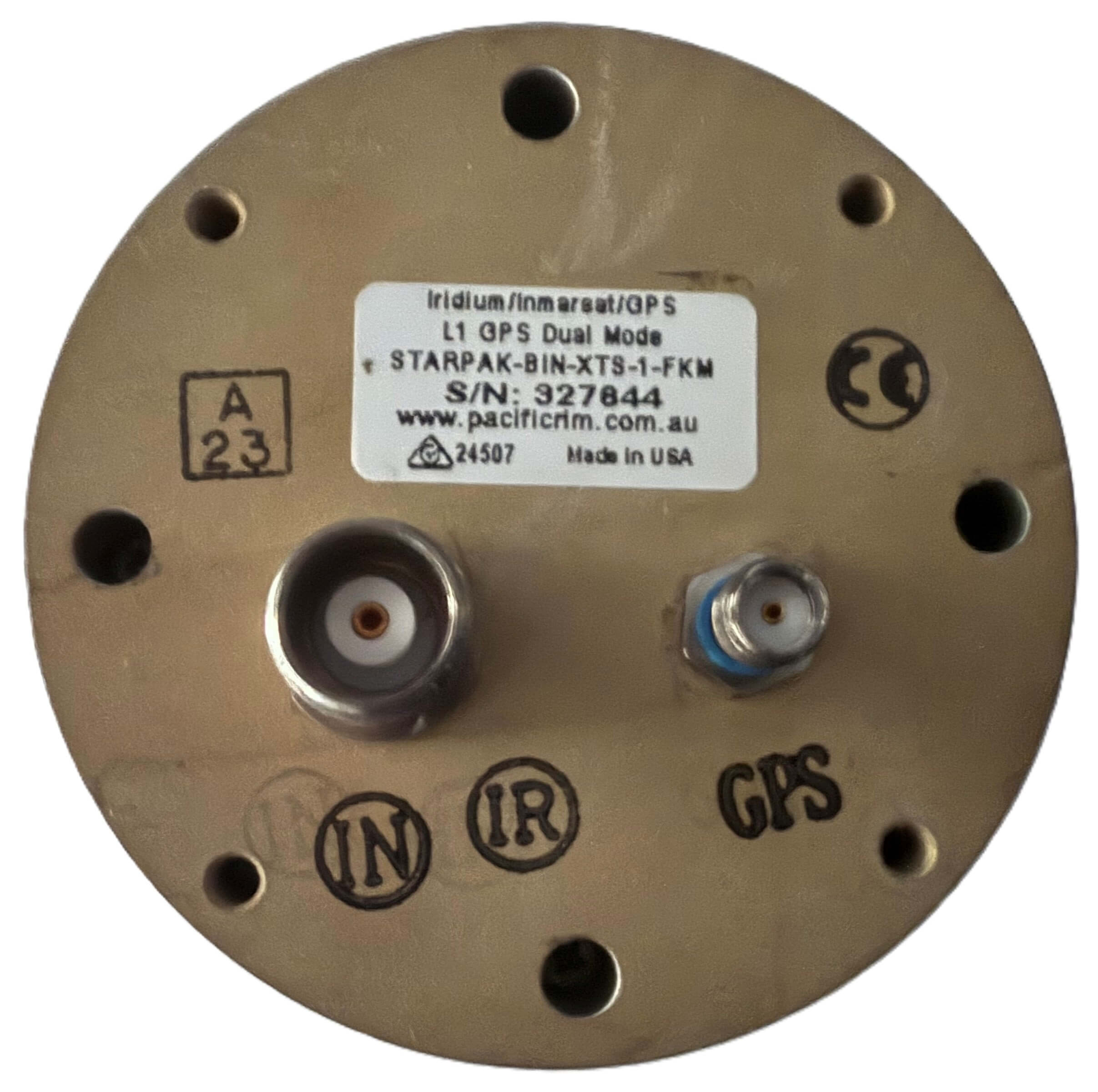

Base Exit: IRIDIUM – TNC-female / GPS – Female by default
Email your alternate using Connector reference, as follows:
T: TNC, TB: TNC Bulkhead,
S: SMA, SB: SMBR,
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N Bulkhead
SMC or SSMC or SSMB, SSMA
DIMENSIONS
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 283g(10oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy Base, Ruggedized Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol, Corrosion Resistance and Fire Retardant
Finish: Hermetically Sealed (Teflon Coated – Part #BINL1RR-P-XT-1-TPM ONLY )
COLOURS
Gloss White is supplied by default
Email your alternate using colour reference, as follows:
Teflon Coated Grey(for Marines/Buoy/Extreme applications): Part #BINL1RR-P-XT-1-TPM
Gloss White #17925(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-TPM
Lusterless Grey #36320(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-TPM
Olive Drab Green #34094(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-TPM
Lusterless Black #37038(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-TPM
Desert Tan #FB23446 / 33446(FED STD 595 PAINT): Part #BINL1RR-P-XT-1-TPM
ENVIRONMENTAL
Temperature: -70degC to +90degC (-95degF to +194degF)
Altitude: -213m(-700ft) to 21.336m(70,000ft)
Vibration: 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium and Inmarsat Certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-461E/F,and SAEJ1455
ACCEPTANCE TEST PROCEDURE
ATP-GPS-L1L2-100
