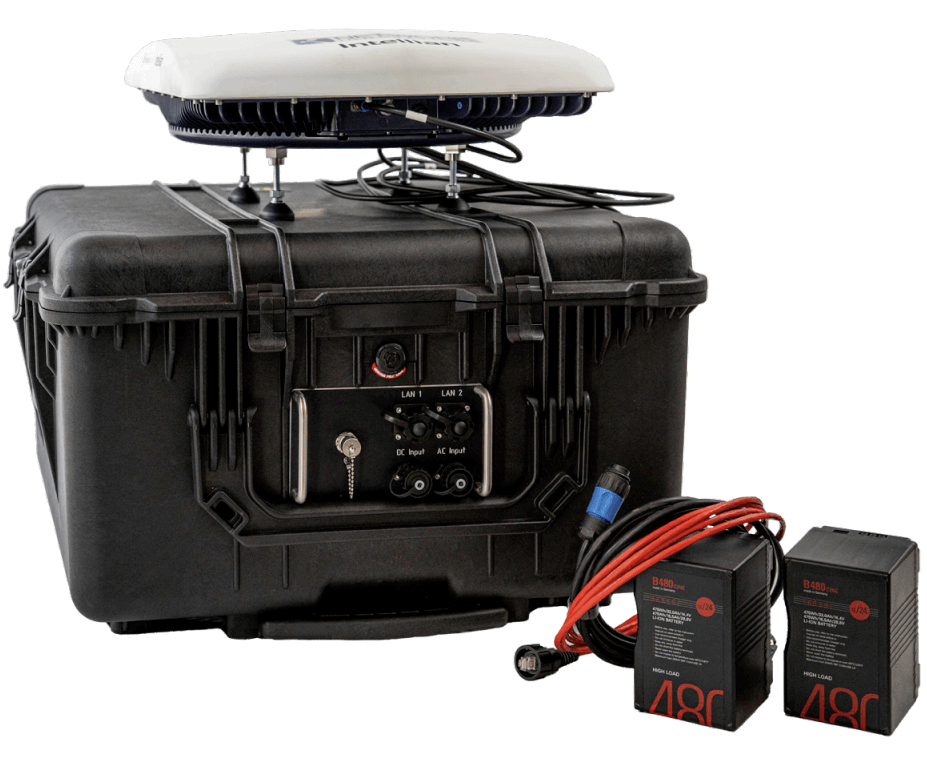

MS-OW10HF-TAC-NI Intellian OneWeb OW10HV Compact Flat Panel, Tactical GO Case, WIFI, MIL

MS-OW10HF-TAC-NI Intellian OneWeb OW10HV Compact Flat Panel, Tactical GO Case, WIFI, MIL

Ruggedized fully autonomous solution, delivering high-speed and reliable internet to public safety responders, military units, and Govt.

Engineered to be self-sufficient, this solution ensures that users can maintain high-speed and reliable internet access even in the most challenging and remote environments.

Whether deployed in Military Environments, disaster-stricken areas or on-the-go scenarios, this case is designed to withstand extreme weather, physical impact, and other environmental challenges – safeguarding and powering the technology within.

Features

• A fully autonomous tracking antenna acquires and tracks the OneWeb satellite signal while OTM/OTP(on the move or on-the-pause)
• Intellian OW10HV Antenna works inside or outside the case when lid is closed
• Victron Energy Buck-Boost with Smart Battery Protect
• Hot-Swap Function
• Integrated DC / AC 500 W Power Supply
• Weather Resistance
• Flyable
• External Interfaces
• Up to 50 Mbit/s Download
• Latency 20-40ms
• The system automatically switches to battery operation if the power fails in mains operation.
• Works as an uninterrupted power supply (UPS) with attached batteries
  Weather Resistance
  • All electronics are integrated into the well known and military-approved PELI® Cases
  • The tactical OneWeb OW10 Case is IP-54-rated
  Flyable
  • All-In-One Trolley
  • Airline checkable (only with 86Wh B-Mount batteries) (Batteries must be carried in hand luggage)
  External Interfaces
  • 2 x LAN external connectors (IP67)
  • 1 x 10 – 30 VDC Connector (IP67)
  • 1 x 90 to 264V AC Connector (IP67)
  • 1 x N-Connector for Intellian OW10HV antenna

What’s In The Box – MS-OW10HF
• Pelicase 1640 including custom die-cut hi-density foam to house the OW10HV system
• Intellian OW10HV Compact Flat Panel System Antenna for Land Mobility
• Buck-boost 25A, 10-30 VDC including smart
battery protect
• Intellian CNX Mobility
• DC/DC converter 12 to 48 VDC (400 Watt)
• RITTAL 24 VDC ventilator
• 2 x B-mounts for detachable batteries
• 5m HF- cable for Intellian OW10HV antenna
• 3m DC vehicle cable
• 3m AC power cable
• 3m ethernet cable
• Quick start guide
Optional Accessories, available, but NOT included in this pack

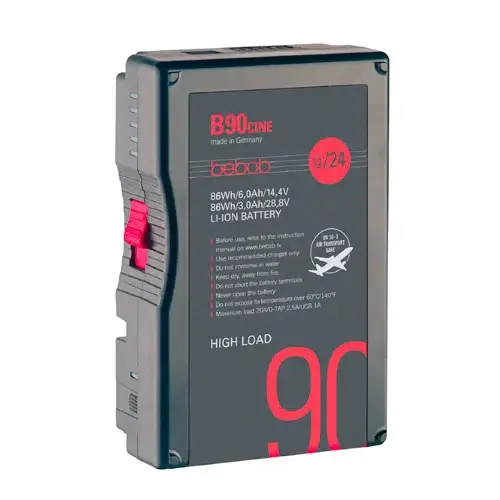

• 2 x Detachable 90Wh/6,0Ah/14,4V B-Mount
HIGH Load batteries

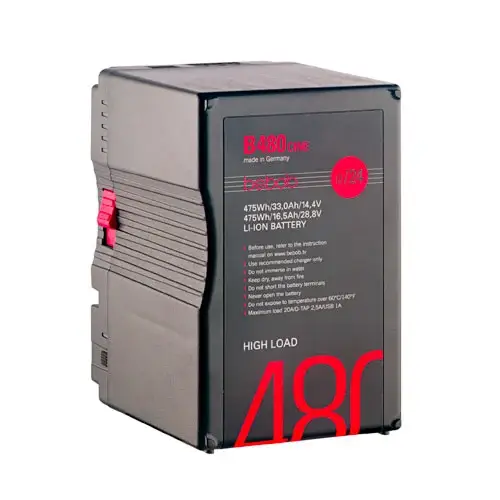

• 2 x Detachable 475Wh/33,0Ah/14,4V
B-Mount HIGH Load batteries

In high-stakes environments – whether responding to disasters, coordinating tactical deployments, or supporting remote government operations – connectivity isn’t optional. It’s a lifeline. That’s why we’ve integrated the Intellian OneWeb OW10HV terminal into a ruggedized, field-ready tactical case engineered for resilience, mobility, and uninterrupted performance.

OPTIONAL:

5G/LTE Gateway Integrated

• The tactical OneWeb OW 10 Case – 5G/LTE option offers wireless 5G/LTE connectivity as the priority link and has an automatic fail-over to the satellite service when the LTE connection is lost or not available.
• The World-class proven MAX BR1 Pro 5G gateways from Pepwave are used for commercial & enterprise LTE network connectivity.
• The Value Added Services from Network Innovations offer Full control of the IP Network and WiFi via the Peplink MAX BR1 Pro 5G unit
• OneWeb/LTE/5G bundling and hybrid solutions to achieve the best and most resilient IP connectivity are possible via the Peplink MAX BR1 Pro 5G router.
• The Peplink MAX BR1 Pro 5G is fully licensed for North America, EMEA, or Australia & New Zealand.

DRIVE Functionality included with High Performance Flat Antenna

• The DRIVE function allows the Intellian OW10HV antenna to be removed from the case without tools to be mounted on the roof of a vehicle using the Land Mobile Mounting Option from Intellian.
• This enables full connection to the satellite network while driving, when the OW10 Antenna is activated as Mobil terminal.
• NOTE: The Land Mobile Mounting Option from Intellian does not fit into the PeliCase and has to be carried separately.
• The Intellian OW10HV antenna can be used inside or outside the PELI® Case while the lid is closed.

Endless Operation Off the Grid

• With hot-swap battery support, this case delivers continuous, off-grid operation without interruption.
• Batteries can be swapped on the fly, ensuring no downtime during critical operations.

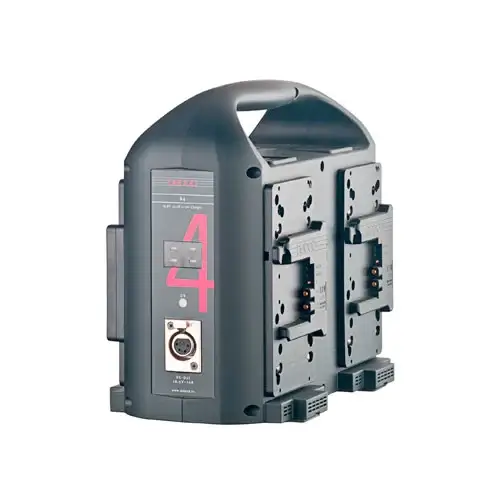

• Plus, additional batteries and external fast chargers are available upon request to keep your teams powered longer and moving faster.

Supporting Your Mission

This solution isn’t just about staying connected – it’s about staying operational, informed, and effective when it counts most. If your team operates at the edge, it’s ready to meet the challenge.

By integrating the antenna into a rugged, IP54-rated PELI® Case, this all-in-one solution is purpose-built for rapid deployment, harsh conditions, and complete mobility.

OW10HV REQUIREMENT – Compact Panel series

Land Mobile Profile:                                                                                                                                                                                                                                                 The Land Mobile UTs shall support the Class B Land Mobile motion profile as defined in GVF-105

Angular Velocity:                                                                                                                                                                                                                                                      The Compact UT (OW10HV) shall compensate for rotational motion on each axis (roll, pitch, yaw) that does not exceed a maximum rate of 16 deg/s.

Angular Acceleration – 1
The Compact UT (OW10HV) shall compensate for angular acceleration on the roll and pitch axes that does not exceed a maximum rate of 300 deg/s/s. Refer to GVF-105 Class B land mobile motion profile for additional details.

Angular Acceleration – 2
The Compact UT (OW10HV) shall compensate for angular acceleration on the yaw axis that does not exceed a maximum rate of 100 deg/s/s.                  Refer to GVF-105 Class B land mobile motion profile for additional details.

Translational Acceleration:
The Compact UT (OW10HV) shall compensate for translational acceleration on all axes that does not exceed a maximum rate of 10 m/s/s. Refer to GVF-105 Class B land mobile motion profile for additional details.

Shock & Vibe:
The Compact UT (OW10HV) shall support COTM (Comms on the Move) operation while complying with MIL-STD-810H 514.8 vibration Procedure I, and MIL-STD-810H 516.8 shock Procedure I, and shall maintain connection in a manner that ensures the end user doesn’t perceive a pause or drop in connectivity when subjected to motion the motion profile as defined in the “Mobility Performance – Land Mobile” requirement.
