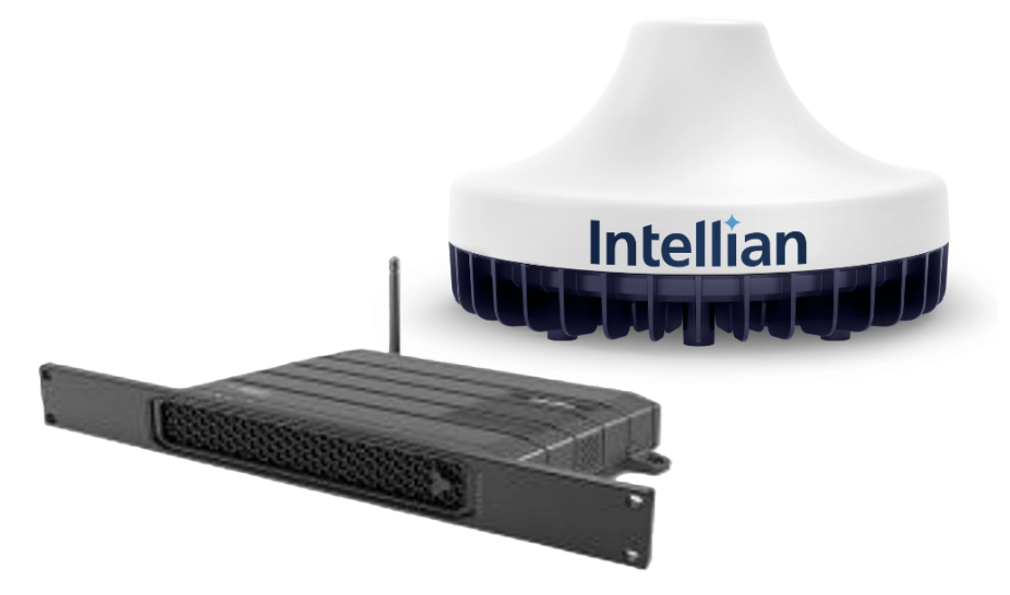

C1-20-A00R Intellian C200M Iridium Certus System, 19in Rack Mount Terminal, Maritime
$9,229.00 Inc. GST
C1-20-A00R Intellian C200M Iridium Certus System, 19in Rack Mount Terminal, Maritime
This pack is the same as the C200M maritime, but includes the 19in Rack Mount option as described below.
C1-20-AOOR FACTORY PACKAGE CONTENTS – you will receive separately packaged the below(as ordered):
Pack# 1 of 2 – ADU Package
- 1pce Above Deck Unit (ADU) L240 x W240 x H143mm (aka the Antenna Unit)
- 1pce Antenna Mounting Template
- …. and To Mount Antenna on Mounting Surface(M6 Bolt Kit), you will find:
- 5pcs Hex Bolt, M6 x L20mm
- 5pcs Spring Washer, M6
- 5pcs Flat Washer, M6
Pack# 2 of 2 – BDU and Rack Mount Package
- 1pce Below Deck Unit (BDU) L315 x W190 x H42 mm
- 1pce DC Power Cable, 1.0m – to connect for BDU Power
- 1pce Ethernet Cable (RJ45 / LAN), 1.0m – To Connect for BDU to PC
- 1pce Wi-Fi Antenna
- 1pce Quick Installation Guide (QIG)
- 5pcs Tapping Screw, M5 x L16mm – To Fix BDU (Direct Mounting Type)
- 1pce Terminal Block 85 x 40 x 36 mm – For Inter-connection of Cables
19in Rack Mount Package
- 1pce AC Power Cord (USA), 1.5 m – BDU Power Cord (110VAC)
- 1pce AC Power Cord (CEEE7/7), 1.5 m – BDU Power Cord (220VAC)
- 1pce AD-DC Adaptor – BDU Power Adaptor (150W)
- 1pce Rackmount Plate
- 5pcs Pan Head Screw (with Spring & Kit for Rackmount Plate Flat Washer), 5 M4 x L16mm
- 1pce Cable Tray Kit for Cable Tray
- 4pcs Flat Head Screw M3 x L6mm
- NOTE: The 19-inch Rack Mount Kit can also be purchased separately. When this kit is supplied, it is packaged in the BDU Package. Intellian recommends using a 19″ rack shelf (not supplied) to support the BDU in the rack.
TYPICAL REFERENCE INFO BELOW – C200M******************************************************************
C1-20-A00S Intellian C200M Iridium Certus System, Maritime
Iridium Certus® C200M Terminal designed for maritime and suitable for the smallest vessel or USV
Many of the features and underlying technology of the C200M are common with the market leading Intellian C700 Maritime terminal that is trusted globally for its reliability and performance.
The Intellian C200M provides IP data speeds of up to 176 Kbps (up and down), supports multiple concurrent voice calls, and can be configured as a stand-alone terminal or as a VSAT companion. Customers will gain both scalability and advanced performance over the Iridium Certus network whenever needed.
FACTORY PACKAGE CONTENTS – C200M you will receive separately packaged the below(as ordered):
- ADU Package
- 1pce Above Deck Unit (ADU) L240 x W240 x H143mm (aka the Antenna Unit)
- 1pce Antenna Mounting Template
- …. and To Mount Antenna on Mounting Surface(M6 Bolt Kit), you will find:
- 5pcs Hex Bolt, M6 x L20mm
- 5pcs Spring Washer, M6
- 5pcs Flat Washer, M6
2. BDU Package
- 1pce Below Deck Unit (BDU) L315 x W190 x H42 mm
- 1pce DC Power Cable, 1.0m – to connect for BDU Power
- 1pce Ethernet Cable (RJ45 / LAN), 1.0m – To Connect for BDU to PC
- 1pce Wi-Fi Antenna
- 1pce Quick Installation Guide (QIG)
- 5pcs Tapping Screw, M5 x L16mm – To Fix BDU (Direct Mounting Type)
- 1pce Terminal Block 85 x 40 x 36 mm – For Inter-connection of Cables
3. OPTIONAL – 19in Rack Mount Package(not included as standard supply – must be ordered separately)
- 1pce AC Power Cord (USA), 1.5 m – BDU Power Cord (110VAC)
- 1pce AC Power Cord (CEEE7/7), 1.5 m – BDU Power Cord (220VAC)
- 1pce AD-DC Adaptor – BDU Power Adaptor (150W)
- 1pce Rackmount Plate
- 5pcs Pan Head Screw (with Spring & Kit for Rackmount Plate Flat Washer), 5 M4 x L16mm
- 1pce Cable Tray Kit for Cable Tray
- 4pcs Flat Head Screw M3 x L6mm
- NOTE: The 19-inch Rack Mount Kit can be purchased separately. When this kit is supplied, it is packaged in the BDU Package. Intellian recommends using a 19″ rack shelf (not supplied) to support the BDU in the rack.
4. OPTIONAL – Pole/mast Mount Kit Package(NOT included as standard supply – must be ordered separately)
- 1pce Pole Bracket
- 1pce Pole Tube
- 10pcs Hex Bolt, M6 x L20mm
- 5pcs Hex Bolt, M6 x L25mm (Only for FB250/FleetOne use)
- 10pcs Spring Washer, M6
- 10pcs Flat Washer, M6
- 1pce 40mm (1½ inch) Pole Bushing – For Mounting Antenna on 40mm(1½ inch) Pole
- 4pcs Socket Set Screw, M12 x L12mm
- NOTE: The Antenna Pole Mount Kit can be purchased separately. When this kit is supplied, it is provided in a
separate box.
Small and light
The Intellian C200M has been designed and manufactured as a small and lightweight terminal that will fit on any vessel or USV. Measuring only 240 x 145 mm / 9.45” x 5.71” and weighing 3.5 kg / 7.7 lb, it is Intellian’s smallest terminal.
Built-in AptusLX intuitive management tool
Simple and quick installation via AptusLX, an intuitive web-based platform to manage and control the terminal.
Lower t. otal cost of ownership
Intellian focus on delivering value to our customers through low total cost of ownership. This comes from building highly reliable terminals that are easy to install and have a wide range of features and functionality that reduces the amount of additional equipment required. Intellian’s responsive global support teams are there to help if needed and the terminal comes with a market leading 3 year parts and labour warranty.
All-in-one solution
The C200M terminal delivers unparalleled features and functionality that include: WAN mediator, Wi-Fi antenna, built-in soft PABX & firewall and will be GMDSS-capable upon its introduction to Iridium Certus. Bringing all these features together in one package simplifies installation & configuration, and eliminates the possibility of conflicts that can occur when these features are provided using connected equipment.
The perfect VSAT companion
- L-band element of an intelligent hybrid network
- Data communication throughput – 176 Kbps Up, 176 Kbps Down
- Out-Of-Band management
- Powerful API enables full integration with 3rd party Smart Boxes
- 19″ rack mount BDU version available
Advanced voice solution
- 3 HD Quality voice lines
- Directly connect up to 4 SIP Phones
- Up to 2 analog telephones
- Soft PABX for up to 16 SIP Phones
