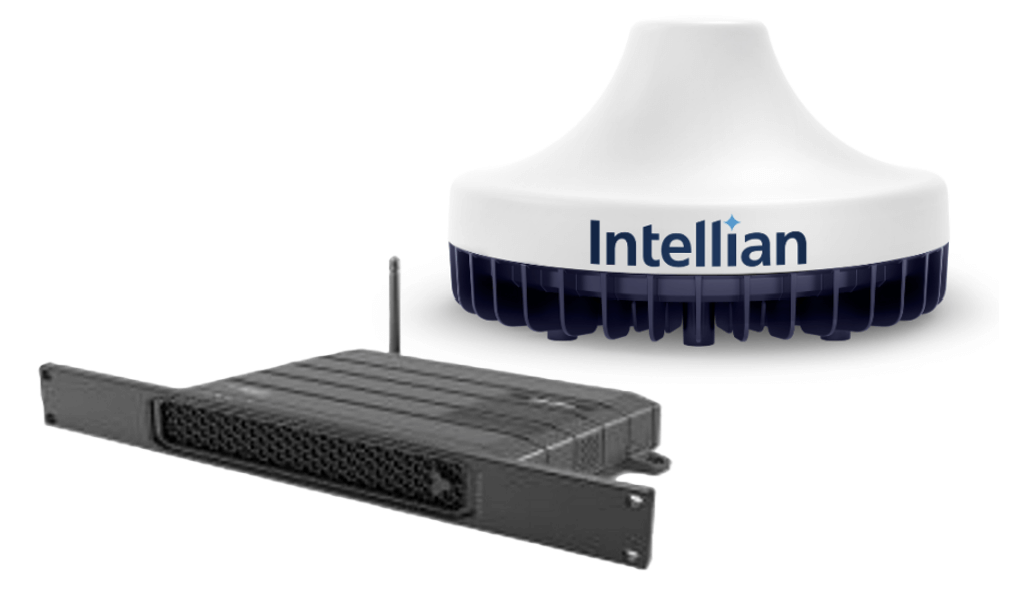

C1-20-L00R Intellian C200L Iridium Certus System, 19in Rack Mount Terminal, Land
$9,229.00 Inc. GST
C1-20-L00R Intellian C200L Iridium Certus System, 19in Rack Mount Terminal, Land
This pack is the same as the C200L Land System, but includes the 19in Rack Mount option as described below.
C1-20-LOOR FACTORY PACKAGE CONTENTS – you will receive separately packaged the below(as ordered):
Pack# 1 of 2 – ADU Package
- 1pce Above Deck Unit (ADU) L240 x W240 x H143mm (aka the Antenna Unit)
- 1pce Antenna Mounting Template
- …. and To Mount Antenna on Mounting Surface(M6 Bolt Kit), you will find:
- 5pcs Hex Bolt, M6 x L20mm
- 5pcs Spring Washer, M6
- 5pcs Flat Washer, M6
Pack# 2 of 2 – BDU and Rack Mount Package
- 1pce Below Deck Unit (BDU) L315 x W190 x H42 mm
- 1pce DC Power Cable, 1.0m – to connect for BDU Power
- 1pce Ethernet Cable (RJ45 / LAN), 1.0m – To Connect for BDU to PC
- 1pce Wi-Fi Antenna
- 1pce Quick Installation Guide (QIG)
- 5pcs Tapping Screw, M5 x L16mm – To Fix BDU (Direct Mounting Type)
- 1pce Terminal Block 85 x 40 x 36 mm – For Inter-connection of Cables
19in Rack Mount Package
- 1pce AC Power Cord (USA), 1.5 m – BDU Power Cord (110VAC)
- 1pce AC Power Cord (CEEE7/7), 1.5 m – BDU Power Cord (220VAC)
- 1pce AD-DC Adaptor – BDU Power Adaptor (150W)
- 1pce Rackmount Plate
- 5pcs Pan Head Screw (with Spring & Kit for Rackmount Plate Flat Washer), 5 M4 x L16mm
- 1pce Cable Tray Kit for Cable Tray
- 4pcs Flat Head Screw M3 x L6mm
- NOTE: The 19-inch Rack Mount Kit can also be purchased separately. When this kit is supplied, it is packaged in the BDU Package. Intellian recommends using a 19″ rack shelf (not supplied) to support the BDU in the rack.
TYPICAL REFERENCE INFO BELOW – C200L******************************************************************
C1-20-L00S Intellian C200L Iridium Certus System, Land
The C200L is designed to provide backup voice and data comms for offices, schools and hospitals in the event of a failure of the terrestrial comms network. It is also suitable for OOBM (out of band management) for land-based VSAT terminals and as a deployable comms device (with suitable 3rd party case to protect the terminal during transit).
The Intellian C200L provides IP data speeds of up to 176 kbps (up and down) and supports multiple concurrent voice calls. Customers will gain both scalability and advanced performance over the Iridium Certus network whenever needed.
LOWER TOTAL COST OF OWNERSHIP
Intellian focus on delivering value to our customers through low total cost of ownership. This comes from building highly reliable terminals that are easy to install and have a wide range of features and functionality that reduces the amount of additional equipment required. Intellian’s responsive global support teams are there to help if needed and the terminal comes with a market leading 3 year parts and labour warranty.
ALL-IN-ONE SOLUTION
The C200L delivers unparalleled features and functionality that include: WAN mediator, Wi-Fi antenna, built-in soft PABX & firewall. Bringing all these features together in one package simplifies installation & configuration, and eliminates the possibility of conflicts that can occur when these features are provided using connected equipment.
C200L Features:
- Perfect VSAT Companion
- Small and Lightweight
- Easy Installation and Simple Configuration
- Single Coaxial Cable Antenna Connection
- Cyber Security Enhanced – Built-in Firewall and User Threat Management
- Three High-Quality Voice Lines
- All-Around Voice, Soft PABX for up to 16 IP Phones and 2 Analog Phones
- 4-Port Ethernet (LAN) PoE / Wi-Fi Access Point
- OpenAPI for Remote Management
- Reduced through-life cost
- Excellent warranty (3yrs parts + 3yrs labor at the factory)
