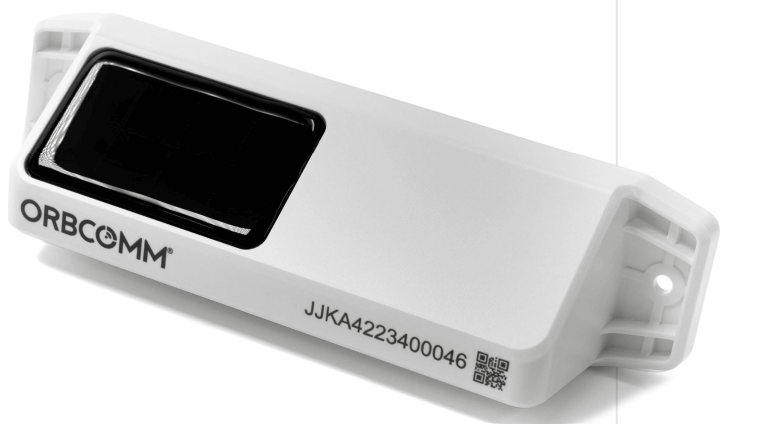

CT-1000 Orbcomm CT 1000 Cellular Terminal, 4G LTE, ATEX
Simpler tracking. Smarter decisions.
CT-1000 Orbcomm CT 1000 Cellular Terminal, 4G LTE, ATEX
Simpler tracking. Smarter decisions.
- Solar powered
- Current and historical location reporting
- Easy and fast to install, scale and maintain
- ATEX Zone 2 rated and resistant to dust and water
- Global 4G LTE coverage and 3G/2G fallback
The CT 1000 delivers cost-effective asset visibility, driving efficiency and boosting cargo security. Fleet and intermodal managers can improve utilization and optimize operations by monitoring asset location, status, starts, and stops
across multiple asset types.
Better fleet management
Gain insights into fleet efficiency with current and historical location reporting.
Identify critical movements that impact operations with geofencing for better asset management.
Easy to deploy
Designed for quick, cost-effective deployment with minimal asset downtime and upkeep thanks to its solar-powered battery and over-the-air updates. Install in as little as one minute, configure in as few as four minutes.
Durable
ATEX Zone 2 rated, the CT 1000 is built with a rugged enclosure that is
resistant to dust and water.
Stay connected virtually anywhere
Our global IoT SIM delivers connectivity on 565 networks across 180 countries
to support trailer and intermodal containers–no matter where they roam.
Cellular technology
• Global 4G LTE coverage and 3G/2G fallback
Dimensions:
• 7.76 x 2.0 x 2.0 inches
• 197 x 50.8 x 50.8 mm
• Plastic material: Polycarbonate
• Color: white
Cellular technology
• Global 4G LTE coverage and
3G/2G fallback
Dimensions:
• 7.76 x 2.0 x 2.0 inches
• 197 x 50.8 x 50.8 mm
• Plastic material: Polycarbonate
• Color: white
SIM type
• Solderable SIM
Communication protocols
• TCP, FTP
Constellations supported
• GPS, GLONASS, BeiDou, Galileo, QZSS
Antenna
Built-in cellular antenna,
GPS/GNSS antenna, BLE antenna
Accelerometer
• 3-axis digital accelerometer
with motion detection
Sensors
• Standard: GPS, ambient temperature
Memory
• Storage of more than 2000 messages
(90+ days of operation)
Wireless
• Cellular and BLE
Ingress
• IP69K
• IP67
Battery
• Charge temperature: -20°C to 50°C
• Discharge temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
at relative humidity 65 +/-20%
Flammability
• Enclosure: UL 94 5VA
Certifications
• FCC/IC
• PTCRB
• CE RED 2014/53/EU
• ROHS
• ATEX
• WEEE
• Global Access Approval: Australia/
New Zealand, Brazil, China, Japan,
South Korea, South Africa, UKCA, etc.
Environmental
• Operating temperature: -20°C to +70°C
• IEC 60529
• Vibration: AAR S-9401, rail car body
mounted; MIL-STD-810H
• Mechanical shock: MIL-STD-810H
(Method 516.6)
Electrical output power
• Cellular radio output power of
2G/3G/4G: Max 33dBm
• GSM850: Class 4 (33 dBm ±2 dB)
• EGSM900: Class 4 (33 dBm ±2 dB)
• DCS1800: Class 1 (30 dBm ±2 dB)
• PCS 1900: Class 1 (30 dBm ±2 dB)
• GSM850 8-PSK: Class E2 (27 dBm ±3 dB)
• EGSM900 8-PSK: Class E2 (27 dBm ±3 dB)
• DCS1800 8-PSK: Class E2 (26 dBm ±3 dB)
• PCS1900 8-PSK: Class E2 (26 dBm ±3 dB)
• WCDMA: Class 3 (24 dBm +1/-3 dB)
• LTE-FDD: Class 3 (23 dBm ±2 dB)
• LTE-TDD: Class 3 (23 dBm ±2 dB)
