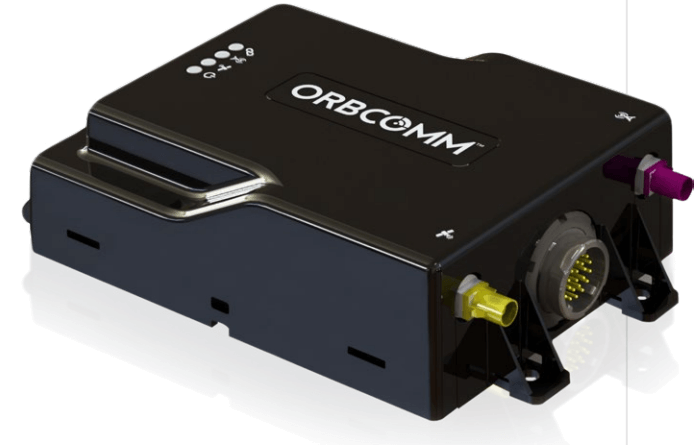

ST9100-FO1 Orbcomm ST 9100 Cellular Satellite Hybrid Terminal, 4G-LTE
Dual mode satellite-cellular terminal for diverse IoT applications.
ST9100-FO1 Orbcomm ST 9100 Cellular Satellite Hybrid Terminal, 4G-LTE
Dual mode satellite-cellular terminal for diverse IoT applications.
- Satellite-cellular connectivity
- Feature-rich, rugged and versatile
- Flexible programming environment
- Supports marketspecific terminal apps
- Comprehensive integration resources for quick deployment
A flexible, robust, and programmable dual mode satellite-cellular terminal.
It is ideal for remotely monitoring and controlling fixed and portable assets.
Versatile and environmentally sealed, the ST 9100 is perfect operating in remote and rugged environments.
Easy integration
The ST 9100 offers a flexible programming environment that supports the development of custom solutions, as well as support for ORBCOMM configurable terminal apps. In fact, you can combine terminal apps with your own code to create a custom solution to speed time to market.
Development kit
The ST 9100 development kit includes all the hardware, software development tools, documentation, accessories and support to write and test your IoT solution for quicker time to market.
Feature-rich
Standard features include multiple I/Os, including analog/digital, 2 RS232, 1 RS-485/J1708, 1-Wire and 2 CANbus. 3-axis accelerometer, Bluetooth connectivity and multiple SIMs are also supported.
Airtime savings
Use cellular or automatically switch between cellular and satellite for cost savings. Program the terminal to process data and send essential updates over the air.
Continuous operation
A backup battery enables reporting for more than 48 hours (1-minute cellular or 60-minute satellite reporting) when power is interrupted.
Order codes
• ST9101-F01
• ST101599-APA OGx antenna
• ST101600-APA OGx low elevation antenna
• ST101597-NSA OGx side no cable
• ST101597-NSB OGx bottom no cable
• ST101598-NSA OGx low elevation side no cable
• ST101598-NSB OGx low elevation bottom no cable
• ST101066-001 bar cellular antenna
• ST101561-001 puck cellular antenna
• ST101014-001 White shroud
• ST101062-002 Blunt cut cable, 5 meters
• ST101096 Mating connector kit
• ST101356-004 ST9101 Dev Kit
ST9100 SPECIFICATIONS
Dimensions
• 148 x 113 x 47 mm
• 181 x 113 x 47 mm including mounting feet
Satellite communications
• Satellite service: Two-way, Global, OGx or IsatData Pro
• Maximum message size:
‣ OGx: From-mobile 1 MB, to-mobile 1 MB
‣ IsatData Pro: From-mobile 6.4 kB, to-mobile 10 kB
• Typical latency: <15 sec, 100 bytes
• Elevation angle: +20° to +90° (remote antenna);
-15° to +90° (low elevation antenna)
• Frequencies:
‣ OGx: Rx 1525.0 to 1559.0 MHz; Tx 1626.5 to 1660.5 MHz
‣ IsatData Pro: Rx 1525.0 to 1559.0 MHz; Tx 1626.5 to 1660.5 MHz
• EIRP: <7.0 dBW
Cellular communication
• ST 9100 Global: Cat 4 LTE (B1, B3, B5, B7, B8, B28), UMTS
(850, 900, 1900, 2100), Quad-band GSM
• ST 9100 Americas: Cat 1 LTE (B2, B4, B5, B12), UMTS
(850, 900, 1900, 2100), Quad-band GSM
• ST 9100 Saudi Arabia: Cat 1 LTE (B1, B3, B8, B20, B28),
UMTS (2100)
• ST 9101 Global: Cat 1 LTE (B1, B2, B3, B4, B5, B7, B8, B12,
B13, B18, B19, B20, B26, B28, B38, B39, B40, B41), UMTS
(850, 900, 1900, 2100), Quad-band GSM
• SIM: 3.3V/1.8V SIM
Certification
• CE, FCC/IC, FFA,PTCRB, Inmarsat type approval, RCM,
ICASA, Anatel, IFT, IEC 60945, ENACOM
Battery
• Lithium ion 2,000 mAh
• Discharge temperature range: -20°C to +75°C
• Battery backup: >48 hours operation with 1-minute cellular
reporting or 60-minute satellite reporting
Memory
• Lua Code: PSRAM 8MB, NVM: ST 9100, 16 MB;
ST 9101, 32 MB
External interfaces
• 4 configurable inputs/outputs: Analog/digital/input/output
• 2 dedicated outputs (sink-ground)
• 4 Digital/analog inputs (2x 4-20mA)
• Serial: 2 RS-232; 1 RS-485/J1708; 2 CAN bus; 1-Wire
GPS/Glonass/Beidou/Galileo
• Acquisition time: Hot: 1 second — Cold: 26/30/34/26 seconds
• Accuracy: 2.0 m CEP-horizontal
• Sensitivity:
‣ Acquisition: -148 dBm
‣ Tracking: -167 dBm
• Security: signal jamming detection
Electrical
• Input voltage: 9 to 32V; load dump protection:
+150V; SAE J1455 (Sec. 4.13)
Other interfaces
• Bluetooth v5.0 low energy module
• Two embedded SIMs plus additional user accessible SIM
Accelerometer
• 3-axis accelerometer
Environmental
• Operating temperature:
‣ Transceiver and antenna: -40°C to +85°C
‣ Back-up battery: -20°C to +75°C
• Dust and water ingress:
‣ Transceiver: IP67
‣ Satellite/GPS antenna: IP67
• Vibration: SAE J1455 (Sec 4.9.4.2 fig 6-8); MIL-STD-810G
• Shock: MIL-STD-810G (Sec 516.6)
Programming
• Lua scripting engine with core services. SDK with GUI
development tools available. Lua software application and firmware upgradable over the air (SOTA, FOTA)
• Geofencing: 128 Polygons
• Data Logger: 50,000 position reports
• AES 256 encryption-capable
Optional, configurable terminal apps:
‣ AVL enables location tracking, status monitoring and driver
behavior monitoring.
‣ Heavy CAN Bus extracts engine data such as engine hours,
fuel consumption from heavy-duty vehicles.
‣ Garmin Dispatch enables text messaging, custom forms,
stops, and HOS through a Garmin device.
‣ Sensors extracts data from connected sensors or devices
and generates reports, alarms and histograms.
‣ Modbus interprets data from Modbus devices and allowdata
processing and alarms.
‣ Vessel Monitoring System provides location tracking, status
monitoring and behavior monitoring.
