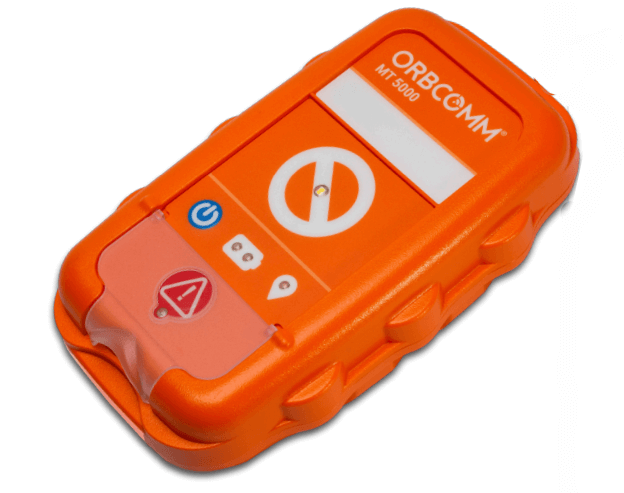

MT5000-1000 Orbcomm MT 5000 Terminal, AIS Maritime
Reliable small vessel tracking for safety, security and compliance.
MT5000-1000 Orbcomm MT 5000 Terminal, AIS Maritime
Reliable small vessel tracking for safety, security and compliance.
- Enhanced satellite and terrestrial communication
- Ruggedized, versatile and reliable
- Reporting compliance for small craft
- Quick and easy to instal
Created for small-craft owners, fleet operators, maritime authorities and enforcement agencies, the MT 5000 delivers vessel location data, maximizing maritime safety, security and environmental compliance.
Reliable and comprehensive location data
Supported by satellite and cellular connectivity, the MT 5000 is a one-of-a kind device that brings the power of Automatic Identification System (AIS) tracking to smaller vessels. It enables location tracking and geofencing at sea.
It includes an alert light that indicates when a boat enters unauthorized zones.
Actionable intelligence
Platform agnostic, the MT 5000 delivers data via a simple API for easy integration into monitoring systems.
Plus, it can be configured and historical data can be downloaded with a phone app.
Faster emergency response
Finding a vessel in distress quickly is critical to mitigating the effects of maritime accidents.
The MT 5000 features an alert button that communicates distress signal and location.
Physical
• Dimensions: 158mm x 94mm x 43mm
• Weight: 363 g
• Mounting dock available
• Integral antenna for all radio communication systems
Position reporting
• GPS position update every 60 seconds
• Reporting interval: programmable
• Data delivery: Tri-modal—terrestrial AIS, satellite AIS, ORBCOMM satellite messaging
Miscellaneous
• Track-storage: 8000 track points(0.5 nautical miles resolution)
• Geofence and coastline storage: 3000 points and regions
• Tamper detection: Removal from dock, GPS and low voltage
• Encryption available for AIS messages
• Firmware updates of AIS and satellite via PC-based programming tool
Order codes
• MT5000-1000 MT5000 device
• MT5000-3000 MT5000 device with charging dock and tamper detection
• ST101042-001 Programming dock
• ST101222-001 Programming dongle
MT 5000 SPECIFICATIONS
Physical
• Dimensions: 158mm x 94mm x 43mm
• Weight: 363 g
• Mounting dock available
• Integral antenna for all radio communication systems
Power
• Rechargeable lithium ion batteries
• Up to 96 hours operating time
• 8 hour charging time
• 10–32V DC supplied to an MT 5000 docking station for charging Environmental (IEC 60945 and
IEC 62287)
• Operating temperature: -20°C to +55°C
• Storage temperature: -30°C to +70°C
• Waterproof: Immersion to 10m depth
• Buoyant
• High-visibility orange enclosure
• Compass safe distance if active: 80cm
• Mechanical shock: 10 g, 25 ms
• Drop: Onto concrete surface: 1m
• Thermal shock: Temperature difference: 45°C
• Resistance: Oil, seawater and sunlight
Regulatory
• FCC, IC, CE, IEC60945
Operational
• Activation: Manual power button
• Alert mode: Manual button to alert on AIS and ORBCOMM satellite network
• LED: Highly visible zone, alert, on, battery level and GNSS indicators
AIS
• Operating frequencies: 4 transmission channels, 2 alternating channels for terrestrial AIS, 2 alternating channels for satellite AIS, nominally 2.5W radiated
• Operation: AIS carrier-sense TDMA compliant to ITU-R M.1371
• AMRD (Autonomous-Mobile-RadioDevices) ready on 160.9 MHz Satellite
• Network: ORBCOMM and AIS
GNSS
• Integrated: 50 channels
• Position fix (cold start): Less than 1 minute with satellite visibility
• GPS satellite-based augmentation systems: WAAS, EGNOS and MSAS
• Networks: GPS, Galileo and GLONASS or BeiDou
• GPS approved: IEC 61108-1(Maritime Equipment)
Position reporting
• GPS position update every 60 seconds
• Reporting interval: programmable
• Data delivery: Tri-modal—terrestrial AIS, satellite AIS, ORBCOMM satellite messaging
Miscellaneous
• Track-storage: 8000 track points(0.5 nautical miles resolution)
• Geofence and coastline storage: 3000 points and regions
• Tamper detection: Removal from dock, GPS and low voltage
• Encryption available for AIS messages
• Firmware updates of AIS and satellite via PC-based programming tool
Order codes
• MT5000-1000 MT5000 device
• MT5000-3000 MT5000 device with charging dock and tamper detection
• ST101042-001 Programming dock
• ST101222-001 Programming dongle
