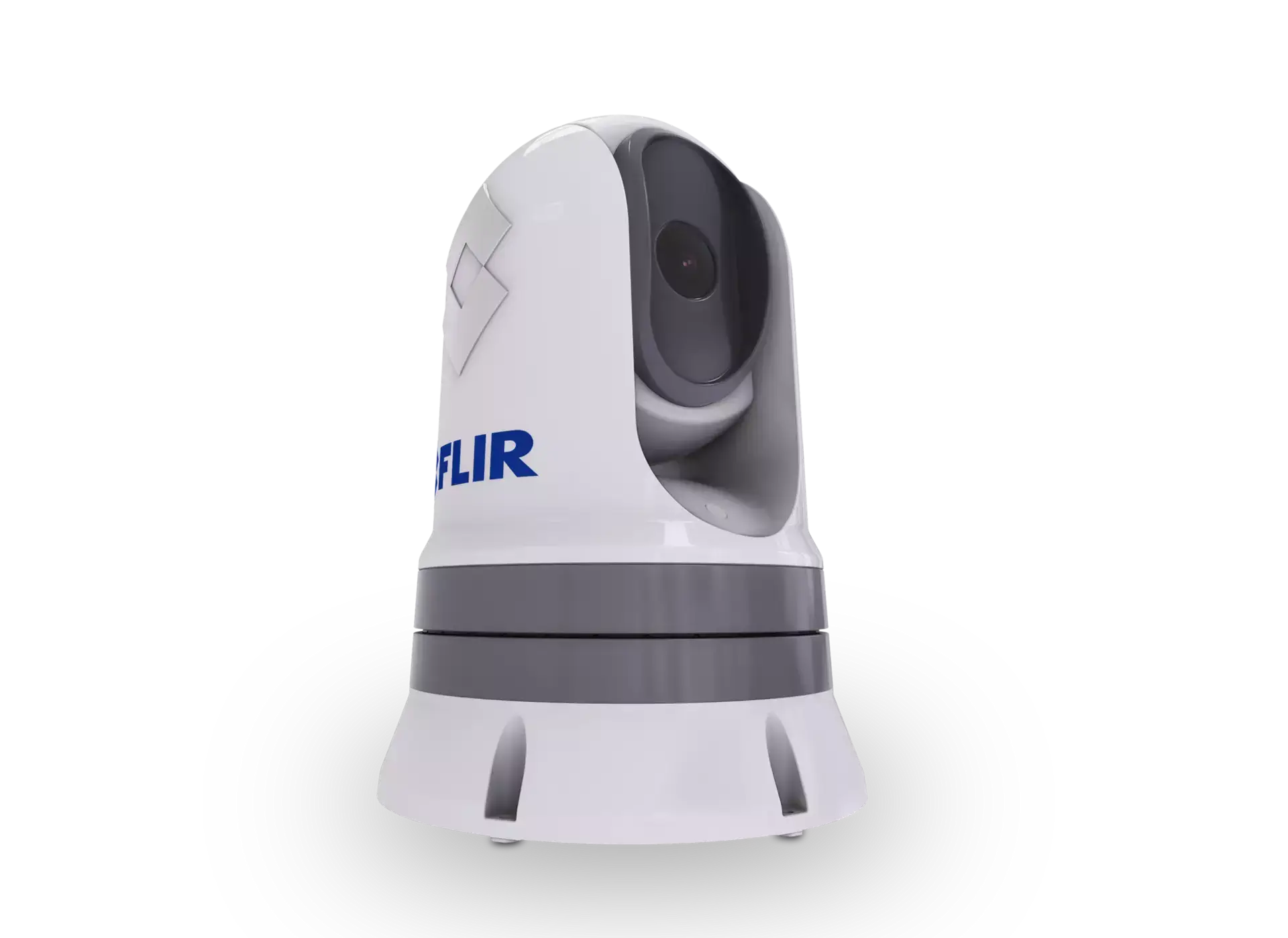

E70605 Flir M300C Camera System, 2-Axis Gyro, Pan and Tilt
$13,114.20 Inc. GST
E70605 Flir M300C Camera System, 2-Axis Gyro, Pan and Tilt
Ultra low-light marine camera with pan and tilt and 2-axis gyro stabilization.
High-Performance, Ultra-Low Light Camera
The M300C combines a high-performance visible HD camera sensor with impressive 30X optical zoom capabilities, ensuring reliable target identification and heightened awareness.
Its robust pan and tilt housing features 2-axis gyro stabilization, enabling effective target monitoring even in challenging sea conditions.
Equipped with an advanced ultra-low light sensor, the M300C offers outstanding low light imaging, making it an ideal choice for mariners who do not need thermal night vision
Safe Navigation in Low Visibility Environments – Ultra-low light camera with enhanced long range target detection
-
- Rugged IPX6 pan and tilt housing is built to withstand the elements
- Analog video, HD-SDI, and IP video for expanded integration
- Marine Video Analytics intelligently identifies non-water objects
E70605 – What’s in the Box?
- M300C Camera Unit
- Riser base-seal
- Camera seal 4 RayNet(Ethernet) to RJ45 adapter cable 120mm(4.72in.)
- Right-angled RayNet (Ethernet) to RayNet (Ethernet)cable 3m(9.8ft.)
- Right-angled HD-SDI video cable(with BNC connectors)3m (9.8ft.)
- Right-angled power/NMEA0183/video cable, 3m(9.8ft.)
- Mounting riser
- Fixings: 3x M6 threaded studs, 2x M6 flat nuts, 3x M6 dome nuts, 3x M6 flat washers and 3x M6 nyloc nuts.
- Documentation pack
Optional Accessories Available to Purchase, but NOT included in this Pack:
- JCU-1 (500-0385-00)
- JCU-2 (500-0398-10)
- JCU-3 (A80510)
- Digital video(HD-SDI) monitor, available separately from third-party retailers
- FLIR PoE injector
- Ethernet network switch
- 300mm(1.0ft) Ethernet cable
- 1.5m(5.0ft) Ethernet cable
- Clamshell ferrite (Part Number 4134175)
- Additional accessories and spare parts are available upon request.
M300 Series Features and Benefits
- IP connectivity to simplify installation and system integration.
- 4 simultaneous video outputs, including 2 visible or 2 thermal digital streams (depending on your chosen model). For further information, refer to the following section: p.45 — Video connections
- Pan and tilt operations with dedicated joystick control unit, multifunction display (MFD), or Web browser.
- 2axis mechanical camera stabilization to suit changing conditions.
- Preset modes (Scenes) optimized for prevailing conditions.
- Marine Video Analytics (MVA) — intelligent thermal analytics technology; provides visual alerts when “non-water” objects are identified in the scene. This feature can be enabled using the camera’s Web interface or the on-screen display via a connected JCU.
- Automatic window heaters to de-ice the lens window in cold weather.
- 12VDC or 24VDC power.
System Overview
Combining a high-performance visible marine camera with outstanding optical zoom capabilities, the M300C offers positive target identification for law enforcement, commercial, and recreational applications. Advanced gyro stabilization combats rough sea conditions and allows the M300C to continuously monitor targets or hazards over long distances.
The M300C’s advanced near-infrared sensor delivers exceptional low light imaging, making it an ideal choice for mariners who do not need thermal night vision.
Pan and Tilt – Navigate safer and explore with 360° pan and +/-90° tilt capability. Control the M300C with your chartplotter or an optional joystick control unit.
2-Axis Stabilization – Navigate with a steady view in rough seas. Vertical stabilization compensates for vessel pitch and horizontal stabilization maintains the M300C’s field of view on a selected bearing.
High Definition – A 1920 x 1080 ultra-low light camera sensor with 30X optical zoom lets you boat into the evening and identify long distance targets.
Flir M300C – SPECIFICATIONS
VISIBLE CAMERA Detector Type 1/2.8” CMOS Resolution Up to 1920 x 1080 @ 30fps Minimum Illumination Low Light Setting ON: 0.006 lux Low Light Setting OFF: 0.1 lux Optical Zoom 30× Digital-Zoom 12x Focal Length 129 mm to 4.3 mm Field of View 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV SYSTEM SPECIFICATIONS Gyro Stabilized Yes Marine Video Analytics (MVA) Yes Pan/Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Network Video Output Two, Independent H.264/MJPEG Network Video Streams HD-SDI Lossless Video Output Yes Power Requirements 12-24V DC Power Consumption 41W nominal; 56W w/ heater ONVIF Profile S Conformance ENVIRONMENTAL Operating Temperature Range-13°F to +131°F (-25°C to +55°C) Storage Temperature Range-22°F to +158°F (-30°C to +70°C) Automatic Window Defrost Standard at Power-Up Water Ingress IPX6 Shock 15g vertical, 9g horizontal Vibration IEC60945 Lightning Protection Near Strike at 2kV Salt Mist IEC60945 EMI IEC60945 PHYSICAL Weight Camera: 13.9lbs (6.3kg) Camera with Top-Down Riser: 14.9lbs (6.8kg) Size Camera: 8.7” (222mm) x 12.9” (328mm) Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm) * Always check display manufacturer’s website and technical documentation for the latest information regarding camera/display compatibility
