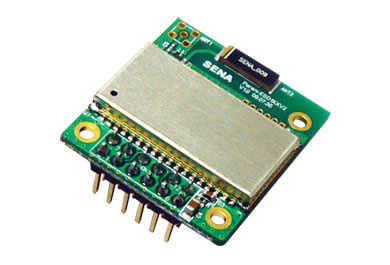

SENA Parani ESD100V2 Module Class 1, on-board chip antenna
Parani ESD100V2-01 is a Bluetooth v2.0+EDR Class1 type module for RS232 cable replacement with built-in chip antenna.
Supports up to 4 multiple simultaneous connections.
$62.96 Inc. GST
The Parani-ESD100V2 is a Bluetooth v2.0+EDR Class1 type Embedded Bluetooth serial module for RS232 cable replacement. The Parani-ESD100V2 is a compact size Bluetooth serial module with built-in chip antenna. It supports 100 meter of wireless transmit distance. The Parani-ESD100V2 also supports up to 4 multiple simultaneous connections.
Output Interface UART, Bluetooth Specification v2.0+EDR
Transmit Power – Max. 18dBm
Receiving Sensitivity: 90dBm(0.1%BER)
Compact size – 27.5 x 30.0 x 14.0 (mm) / 1.08 x 1.18 x 0.55 (in)
Provides transparent RS232 serial cable replacement.
Supports up to 4 multiple simultaneous connections.
Profile: Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
on-board chip antenna
Firmware upgrade via windows-based software (ParaniUpdater)
Working distance ( In an open field ): Nom. 100 meters
Easy to use Windows configuration tool available.
No external drivers required.
Go(scroll down) to the Reference Table below………
Parani-ESD100V2
Serial Interface
UART interface, 2.54mm Pin Header 2X6 (12pin)
Serial UART speed up to 921.6kbps
CTS/RTS flow control, DTR/DSR for loop-back & full transfer
Bluetooth
Bluetooth v2.0 + EDR Class1
Level – 18 dBm
Profile : Serial Port Profile
Working distance :
Nominal 100m
Max. Tx power
18 dBm
Receive Sensitivity
90 dBm
Configuration
ParaniWIN, ParaniWizard, Modem AT command set
Firmware upgrade
by ParaniUpdater
Power
Supply voltage: 3.3V DC
Supply current: 10mA – 60mA
Environmental
Operating temperature : -30℃~ 80℃
Storage temperature : -40℃~ 85℃
Humidity : 90% (Non-condensing)
Physical Properties
Dimension :
27.5 mm L (1.08 in )
30.0 mm W (1.18 in )
14.0 mm H (0.55 in )
Weight : 6g
RegulatoryApprovals
FCC, CE, TELEC, KCC, SIG
SIG QDID
Warranty
1-year Limited Warranty
Brand
Sena
“Whats in the Box?” ESD100V2-01
1x Parani-ESD100V2 Module (on-board chip antenna)
