SENA Parani ESD100V2 Starter Kit
ESD100V2SK-01 Sena Parani-ESD-100V2 Starter Kit
Package contents:
Parani-ESD100V2 Module (on-board chip antenna)
Development board
Serial data cable
DC Power Adapter
A hardcopy of Quick Start Guide
$218.90 Inc. GST
This Parani-ESD100V2SK-01 Starter Kit includes a complete kit of all items required for the developer. The Starter Kit is ideal for setup and evaluation of the ESD100V2 module.
This provides a simple Bluetooth node for system installers, instrument engineers and product designers, in fact anyone who now uses serial communications in their product. All the engineer needs to do is fit these 8- or 12-pin DIL modules on the PCB, connect the serial lines to the module and voila, an instant Bluetooth interface.

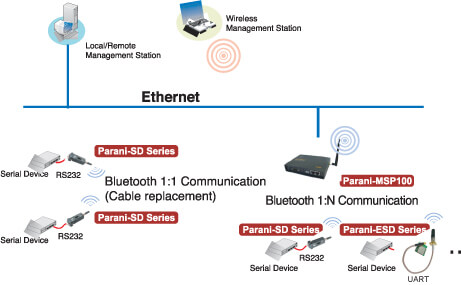

This Bluetooth interface has configurable operating modes and can communicate with any other Bluetooth node such as PDAs, some mobile phones, PC Bluetooth adapters, laptops, or simply talk to each other. As well as being simple to add to hardware, they are simple to setup using the Windows Manager software supplied with the units or by using AT modem commands.
This is a compact Bluetooth v2.0+EDR Class1 type Embedded Bluetooth serial module for RS232 cable replacement that supports 100 meters of wireless transmit distance.
The Parani-ESD100V2 also supports up to 4 multiple simultaneous connections.
Output Interface UART, Bluetooth Specification v2.0+EDR
Transmit Power – Max. 18dBm
Receiving Sensitivity: 90dBm(0.1%BER)
Compact size – 27.5 x 30.0 x 14.0 (mm) / 1.08 x 1.18 x 0.55 (in)
Provides transparent RS232 serial cable replacement.
Supports up to 4 multiple simultaneous connections.
Profile: Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
on-board chip antenna
Firmware upgrade via windows-based software (ParaniUpdater)
Working distance ( In an open field ): Nom. 100 meters
Easy to use Windows configuration tool available.
No external drivers required.
Go(scroll down) to the Reference Table below……….
| Parani-ESD100V2 | Serial Interface | UART interface, 2.54mm Pin Header 2X6 (12pin) Serial UART speed up to 921.6kbps | CTS/RTS flow control, DTR/DSR for loop-back & full transfer | Bluetooth | Bluetooth v2.0 + EDR Class1 Level – 18 dBm Profile : Serial Port Profile Working distance : | Max. Tx power | 18 dBm | Receive Sensitivity | 90 dBm | Configuration | ParaniWIN, ParaniWizard, Modem AT command set | Firmware upgrade | by ParaniUpdater | Power | Supply voltage: 3.3V DC Supply current: 10mA – 60mA | Environmental | Operating temperature : -30℃~ 80℃ Storage temperature : -40℃~ 85℃ Humidity : 90% (Non-condensing) | Physical Properties | Dimension : 27.5 mm L (1.08 in ) 30.0 mm W (1.18 in ) 14.0 mm H (0.55 in ) | Weight : 6g | RegulatoryApprovals | FCC, CE, TELEC, KCC, SIG | SIG QDID | B015896 | Warranty | 1-year Limited Warranty |
