SENA Parani ESD110V2 Module Class 1 with antenna and cable
Parani ESD110V2 is a Bluetooth v2.0+EDR Class1 type module for RS232 cable replacement.
Antenna extension option for distance up to 1,000 meters using optional antennas.
Supports up to 4 multiple simultaneous connections.
$75.09 Inc. GST
The Parani-ESD110V2 is a Bluetooth v2.0+EDR Class1 type Embedded Bluetooth serial module for RS232 cable replacement. The Parani-ESD110V2 is a compact size Bluetooth serial module. By default, it supports 100 meters of wireless transmit distance. The Parani-ESD110V2 has an extension option so that users can extend the transmit distance up to 1,000 meters using optional antennas. The Parani-ESD110V2 also supports up to 4 multiple simultaneous connections.
Features ESD110V2-01
Output Interface UART,
Bluetooth Specification v2.0+EDR
Transmit Power – Max. 18dBm Receiving Sensitivity : 90dBm(0.1%BER)
Compact size – 27.5 x 30.0 x 14.0 (mm) / 1.08 x 1.18 x 0.55 (in)
Provides transparent RS232 serial cable replacement.
Supports up to 4 multiple simultaneous connections
Profile : Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
Firmware upgrade via windows-based software (ParaniUpdater)
Working distance ( In an open field ): Nom. 100 meters, up to 1000m using patch antenna
No external drivers required.
Go(scroll-down) to Reference Table Below

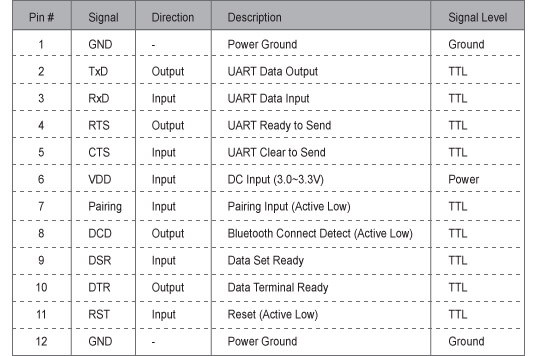

| Parani-ESD110V2 | Serial Interface | UART interface, 2.54mm Pin Header 2X6 (12pin) Serial UART speed up to 921.6kbps | CTS/RTS flow control, DTR/DSR for loop-back & full transfer | Bluetooth | Bluetooth v2.0 + EDR Class1 Level – 18 dBm Profile : Serial Port Profile Working distance :
|
