SENA Parani ESD110V2 Starter Kit
ESD110V2SK-01 Sena Parani-ESD-110V2 Starter Kit
Package contents:
Parani-ESD110V2 Module
Stub Antenna (SAT-G01R)
Antenna extension cable (EEC-G01R)
Development board
Serial data cable
DC Power Adapter
A hardcopy of Quick Start Guide
$218.90 Inc. GST
This Parani-ESD110V2SK-01 Starter Kit includes 1x ESD110V2 with other kit items(refer to “Whats in the Box” tab above.
The Starter Kit is ideal for setup and evaluation of the ESD110V2 module ONLY.
This provides a simple Bluetooth node for system installers, instrument engineers and product designers, in fact anyone who now uses serial communications in their product. All the engineer needs to do is fit these 8- or 12-pin DIL modules on the PCB, connect the serial lines to the module and voila, an instant Bluetooth interface.

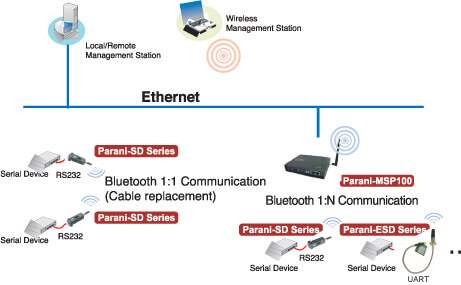

This Bluetooth interface has configurable operating modes and can communicate with any other Bluetooth node such as PDAs, some mobile phones, PC Bluetooth adapters, laptops, or simply talk to each other. As well as being simple to add to hardware, they are simple to setup using the Windows Manager software supplied with the units or by using AT modem commands.
This is a compact Bluetooth v2.0+EDR Class1 type Embedded Bluetooth serial module for RS232 cable replacement that supports 100 meters of wireless transmit distance.
It has an extension option so that users can extend the transmit distance up to 1,000 meters using optional antennas.
The Parani-ESD110V2 also supports up to 4 multiple simultaneous connections.
Output Interface UART, Bluetooth Specification v2.0+EDR
Transmit Power – Max. 18dBm
Receiving Sensitivity : 90dBm(0.1%BER)
Compact size – 27.5 x 30.0 x 14.0 (mm) / 1.08 x 1.18 x 0.55 (in)
Provides transparent RS232 serial cable replacement.
Supports up to 4 multiple simultaneous connections
Profile : Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
Firmware upgrade via windows-based software (ParaniUpdater)
Working distance ( In an open field ):
Nom. 100 meters, up to 1000m using patch antenna
Easy to use Windows configuration tool available.
No external drivers required.
Go(scroll-down) to the Reference Table Below…….
Parani-ESD110V2
Serial Interface
UART interface, 2.54mm Pin Header 2X6 (12pin)
Serial UART speed up to 921.6kbps
CTS/RTS flow control, DTR/DSR for loop-back & full transfer
Bluetooth
Bluetooth v2.0 + EDR Class1
Level – 18 dBm
Profile : Serial Port Profile
Working distance :
Stub Antenna (+1dBi)
Stub Antenna (+1dBi)
Dipole Antenna (+3dBi)
Dipole Antenna (+3dBi)
Dipole Antenna (+3dBi)
Dipole Antenna (+5dBi)
Dipole Antenna (+5dBi)
Patch Antenna (+9dBi)
–
–
–
–
–
–
–
–
Stub Antenna (+1dBi)
Dipole Antenna (+3dBi)
Dipole Antenna (+3dBi)
Dipole Antenna (+5dBi)
Patch Antenna (+9dBi)
Dipole Antenna (+5dBi)
Patch Antenna (+9dBi)
Patch Antenna (+9dBi)
–
–
–
–
–
–
–
–
100 meters
150 meters
200 meters
300 meters
500 meters
400 meters
600 meters
1000 meters
Max. Tx power
18 dBm
Receive Sensitivity
90 dBm
Configuration
ParaniWIN, ParaniWizard, Modem AT command set
Firmware upgrade
by ParaniUpdater
Power
Supply voltage: 3.3V DC
Supply current: 10mA – 60mA
Environmental
Operating temperature : -30℃~ 80℃
Storage temperature : -40℃~ 85℃
Humidity : 90% (Non-condensing)
Physical Properties
Dimension :
27.5 mm L (1.08 in )
30.0 mm W (1.18 in )
14.0 mm H (0.55 in )
Weight : 6g
RegulatoryApprovals
FCC, CE, TELEC, KCC, SIG
SIG QDID
Warranty
1-year Limited Warranty
