CC-27 HONEYWELL Ground CDL Terminal

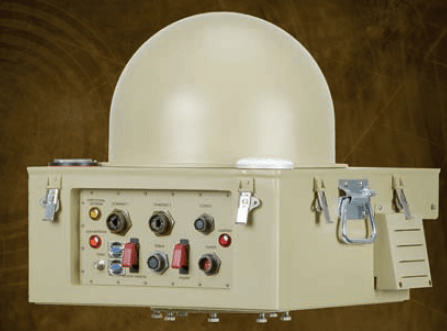

High Data Rate Antenna Solutions for Mobile Communications GC-27 is a high data rate, man-portable Tactical Common Data Link (TCDL) terminal featuring the Honeywell AC-27 Directional Antenna and the L-3 Mini- CDL 200 transceiver.

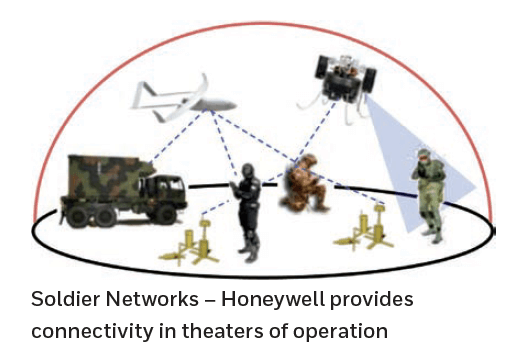

This multi-function common datalink antenna system is designed to support high bandwidth military tactical video, voice and data by enabling real-time communication with an airborne data terminal while being deployed in a variety of battle situations
GC-27 Key Advantages:
• Capable of symmetric data rates up to 45 Mbps
• Supports HD video, data and voice
• CDL Specification Annex B Compliant
• Supports Type 1, Triple-DES, and AES encryption
• L-3 Mini CDL 200 transceiver provides digital modem, RF electronics, encryption, video compression and networking in one enclosed unit
• High-gain directional antenna provides long range communications using an elevation over azimuth pedestal with absolute encoders for position sensing
• Omnidirectional antenna provides close range communications and acquisition
• Differential GPS system provides accurate location and heading information without lengthy setup time
• Integrated RF switch for switching between the directional and omnidirectional antennas
• Integrated power supply filtering allows for unfiltered 10-36 Vdc input
• Integrated rugged transit case and Radome to protect the directional antenna and other electronics
• Quick deploy adjustable tripod supports the entire system on uneven terrain
Features
- Capable of symmetric data rates up to 45 Mbps
- Common datalink specification Annex B compliant
- Differential global positioning system provides accurate location and heading information without lengthy setup time
- Quick deploy adjustable tripod supports the entire system on uneven terrain
- Supports Type 1, triple data encryption algorithm (Triple-DEA), and advanced encryption standard (AES) encryption
- Supports high definition video, data and voice
